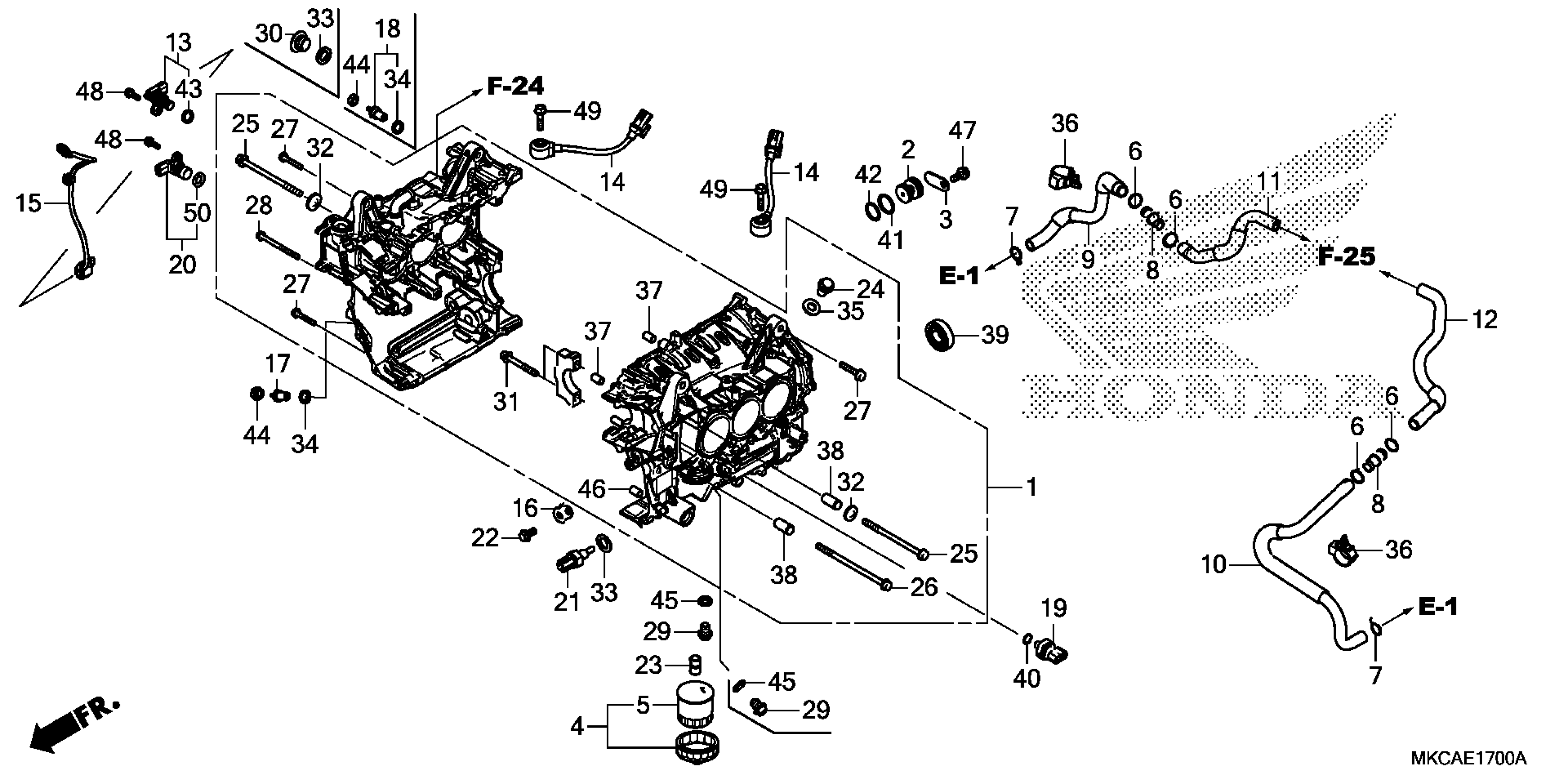

Honda GL1800DA2AC (19) MOTORCYCLE, JPN, VIN# JH2SC797-KK100001 CYLINDER BLOCK Diagram

#

Description
Price

1

BLOCK ASSY., CYLINDER

11000-MKC-A00

$3,545.15

2

PLUG, SEALING

11216-MKC-A00

$15.44

3

PLATE, MAIN GALLERY

11217-MKC-A00

$2.72

4

FILTER SET, OIL | (Optional). This part replaces 15010-MCE-H51.

15010-MKR-305

$20.30

4

FILTER SET, OIL | (Optional).

15010-MKR-305

$20.30

5

FILTER, OIL (WAKO FILTER) | Use up to Engine SN 6017471. This part replaces 15410-MFJ-D01.

15410-MFJ-D02

$15.84

5

FILTER, OIL (WAKO FILTER)

15410-MFJ-D02

$15.84

6

CLIP B, TUBE CLIP, SUB-TANK HOSE

17366-MJ0-000

$2.25

7

CLIP, SUB-TANK HOSE

17724-102-700

$4.51

8

JOINT (TWO-WAY)

18651-MKC-A00

$9.51

9

TUBE, R. AIR INDUCTION A

18652-MKC-A00

$22.34

10

TUBE, L. AIR INDUCTION A

18653-MKC-A00

$30.02

11

TUBE, R. AIR INDUCTION B

18662-MKC-A00

$16.41

12

TUBE, L. AIR INDUCTION B

18663-MKC-A00

$21.16

13

PICK-UP ASSY.

28810-R9L-003

$120.54

14

SENSOR, KNOCK

30530-MKC-A01

$57.05

15

SUB-HARNESS, SPEED SENSOR

32109-MKC-A00

$26.79

16

STAY, HARNESS CLIP

32157-MJM-D00

$4.61

17

SWITCH ASSY., NEUTRAL

35600-MKF-D41

$21.64

19

SENSOR, OIL PRESSURE

37260-MGE-641

$171.18

20

SENSOR ASSY., SPEED

37700-K48-A01

$59.61

21

SENSOR ASSY., THERMOSTAT OIL (Honda Code 8192445)

37750-KPH-701

$51.87

22

BOLT, FLANGE (6X12)

90005-GHB-610

$2.52

23

BOSS, OIL FILTER (Honda Code 1243435)

90019-MB0-000

$8.61

24

BOLT, SEALING (8MM)

90019-MKC-A00

$3.93

25

BOLT, FLANGE (8X120)

90025-MKC-A00

$5.03

26

BOLT, FLANGE (8X140)

90026-MKC-A00

$5.38

27

BOLT, FLANGE (6X35)

90031-MKC-A00

$2.26

28

BOLT, FLANGE (6X75)

90032-MKC-A00

$3.10

29

BOLT, DRAIN PLUG (12X15)

90043-MKC-A00

$5.54

31

BOLT-WASHER (10X80)

90049-MKC-A00

$4.48

32

WASHER, SEALING (8MM)

90441-ME9-000

$2.61

33

WASHER, SEALING (10.2MM)

90443-MB0-000

$2.92

34

WASHER, NEUTRAL

90443-MJ6-000

$1.92

35

WASHER, SEALING (8MM)

90474-333-000

$3.30

36

CLAMP, TUBE (D18)

90651-HL3-G01

$2.48

37

PIN, DOWEL (10X16) (Honda Code 3906971)

90701-MV9-670

$4.30

38

PIN, DOWEL (12X37)

90715-RZ0-G00

$6.36

39

BEARING, RADIAL BALL (6203U SPL.)

91006-HN2-003

$12.71

40

O-RING (13X1.5)

91301-MEH-003

$1.62

41

O-RING (19.20X1.90) (NOK)

91301-P7X-003

$3.08

42

O-RING (16.7X1.9) (NOK)

91301-PWR-003

$3.02

43

O-RING

91304-RE5-003

$11.87

44

NUT, HEX. (4MM)

94001-04000-0S

$1.49

45

WASHER, DRAIN PLUG (12MM)

94109-12000

$1.49

46

PIN C, DOWEL (8X14)

94303-08140

$2.14

47

BOLT, FLANGE (6X14) (Honda Code 2410884)

95701-06014-00

$1.49

48

BOLT, FLANGE (6X18) BOLT, HEX. (6X18)

95701-06018-00

$1.62

49

BOLT, FLANGE (8X30)

95701-08030-00

$1.49

50

O-RING B

91303-MKH-D21

$2.61
