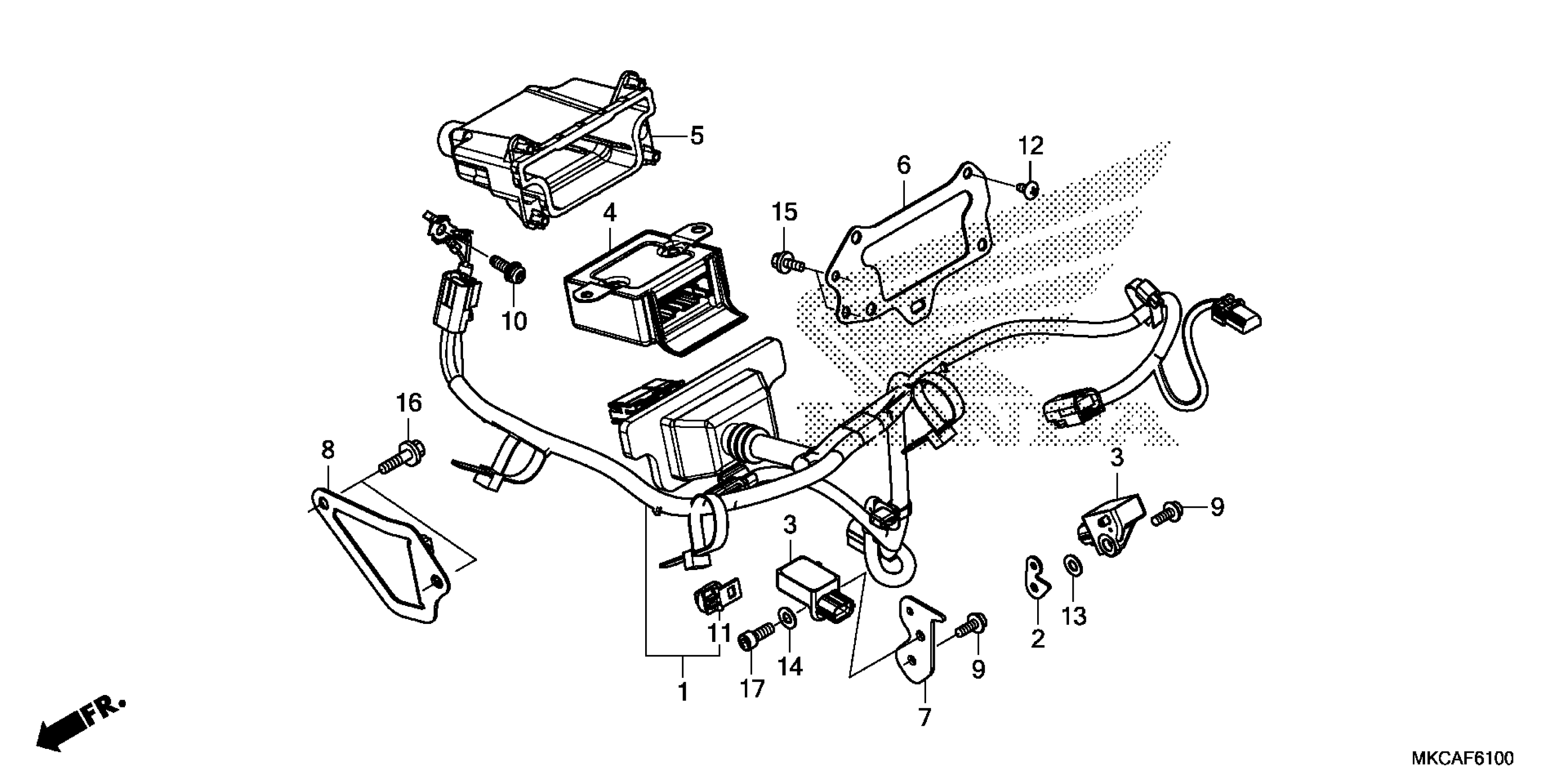

Honda GL1800DA2AC (19) MOTORCYCLE, JPN, VIN# JH2SC797-KK100001 AIRBAG HARNESS Diagram

SUB-HARNESS, AIRBAG

32191-MKC-A30

$328.97

STAY, G-SENSOR

50360-MKC-A30

$5.06

G-SENSOR ASSY.

77930-MKC-A31

$102.07

AIRBAG UNIT (DENSO)

77960-MKC-A31

$487.29

CASE, SRS UNIT

77961-MKC-A30

$36.56

STAY, SRS UNIT

77963-MKC-A30

$15.13

STAY, G-SENSOR

77964-MKC-A30

$8.41

STAY, SRS UNIT MOUNTING

77966-MKC-A30

$13.44

BOLT, TORX (6X16)

90106-MCA-A80

$3.67

BOLT, TORX GROUND (6X20)

90137-S84-A01

$5.46

CLIP, CONNECTOR (DARK BROWN)

91535-TA0-003

$3.95

SCREW, TAPPING (5X12)

93903-25220

$0.84

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

Unavailable

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

Unavailable

WASHER, PLAIN (6MM) (USED ON TAILLIGHT)

94101-06800

Unavailable

WASHER, PLAIN (6MM) (USED ON TAILLIGHT)

94101-06800

Unavailable

BOLT, FLANGE (6X12) BOLT, SPECIAL (6X12)

95701-06012-00

$1.84

BOLT, FLANGE (8X20)

95701-08020-08

$1.46

BOLT, SOCKET (6X16)

96600-06016-08

$1.60
