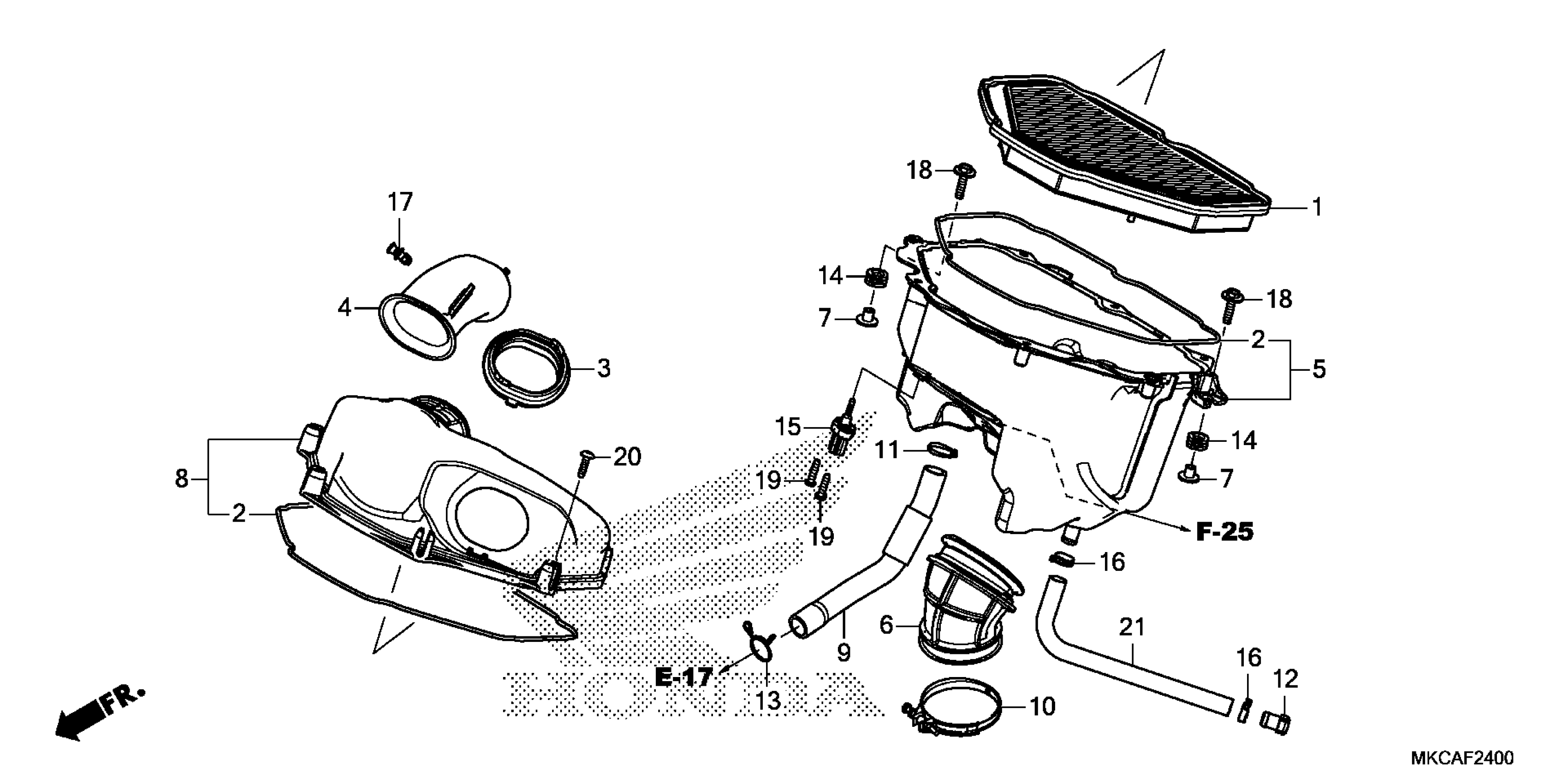

Honda GL1800DA2AC (19) MOTORCYCLE, JPN, VIN# JH2SC797-KK100001 AIR CLEANER Diagram

ELEMENT, AIR CLEANER

17210-MKC-A00

$54.60

SEAL, AIR CLEANER

17221-MKC-A00

$10.34

DUCT A, L.

17223-MKC-A00

$16.48

DUCT B, L.

17225-MKC-A00

$37.75

HOUSING, AIR CLEANER

17230-MKC-A00

$97.34

TUBE, AIR CLEANER CONNECTING

17232-MKC-A00

$26.33

COLLAR, AIR CLEANER MOUNTING

17239-MGS-D30

$3.92

COVER SUB-ASSY., AIR CLEANER

17240-MKC-A00

$78.05

TUBE, ENGINE BREATHER

17245-MKC-A00

$10.10

BAND, AIR CLEANER CONNECTING TUBE (66)

17255-MKC-A00

$13.95

CLIP B, TUBE CLIP, SUB-TANK HOSE

17366-MJ0-000

$2.25

PLUG, BREATHER TUBE

17370-382-870

$3.74

CLIP, AIR HOSE (21.5)

18532-634-670

$7.94

RUBBER, TAILLIGHT

33712-KT1-670

$4.48

SENSOR ASSY., AIR TEMPERATURE

37880-KWW-C01

$44.57

CLAMP, TUBE (14.0)

90651-HM3-A71

$2.31

CLIP, PANEL FIXING

91549-MCA-000

$2.05

BOLT-WASHER (6X25)

93404-06025-07

$1.87

SCREW, TAPPING (5X20)

93901-25420

$1.49

SCREW, TAPPING (5X20)

93903-25480

$1.49

TUBE, VINYL (11X15X250) (95003-37001-60M) (NA USE ALT:95003-37001-60M)

95003-37025-31

Unavailable
