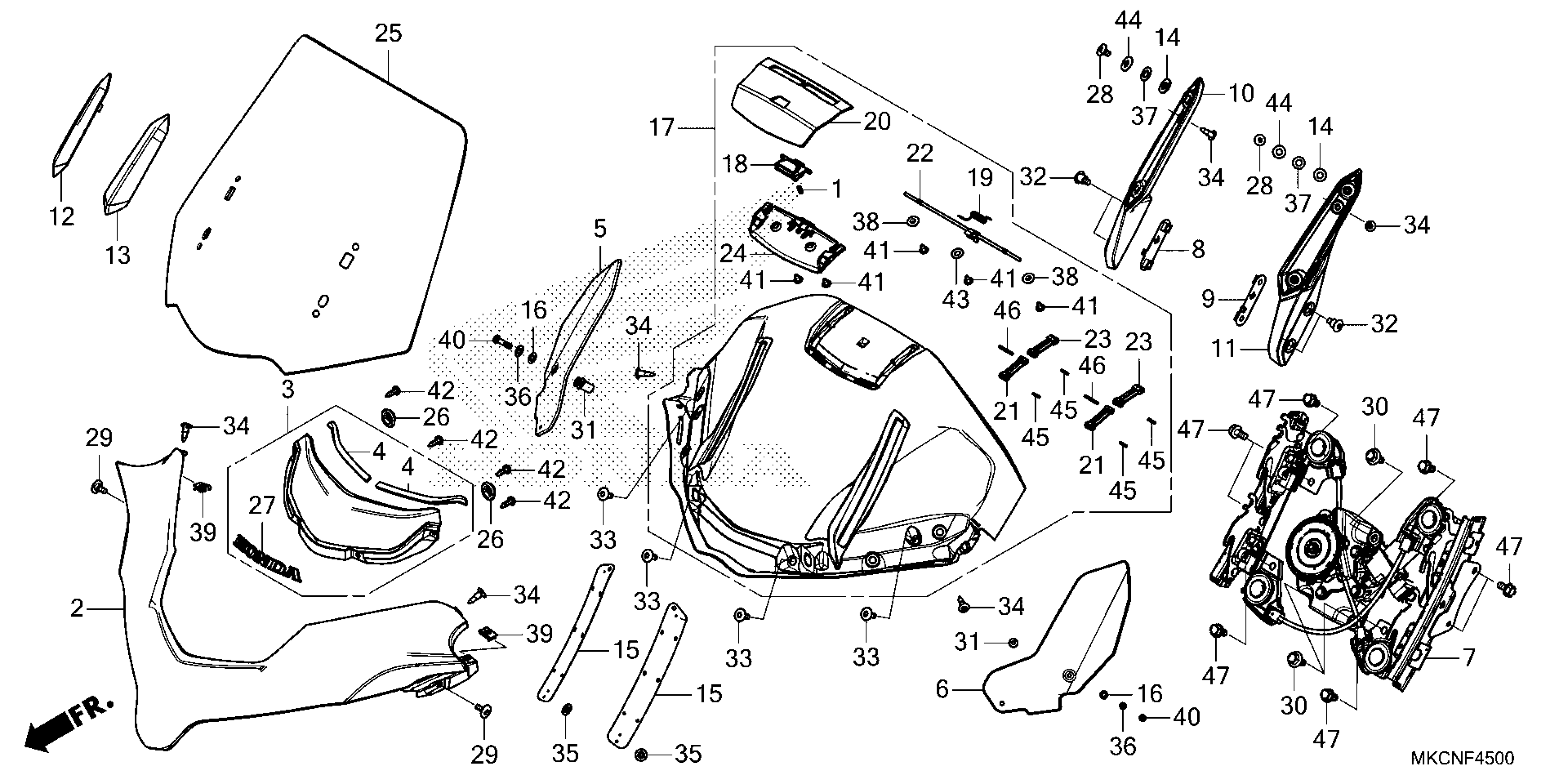

Honda GL1800D3AC (22) MOTORCYCLE, JPN, VIN# JH2SC795-NK400001 WINDSCREEN Diagram

#

Description
Price

1

SPRING, PLUNGER

14126-KV2-940

$3.62

2

SET ILLUS *2TN0040*

64100-MKC-LD0ZA

$369.01

3

GARNISH ASSY. B, SCREEN (TYPE2)

64105-MKC-A00ZA

$72.80

4

SEAL, GARNISH B

64116-MKC-A00

$2.83

5

FLAP, R. WINDSCREEN (INNER)

64121-MKC-A00

$72.36

6

FLAP, L. WINDSCREEN (INNER)

64126-MKC-A00

$72.36

7

ADJUSTER ASSY., WINDSCREEN

64170-MKC-A01

$517.07

8

PLATE, R. SCREEN ADJUSTER

64173-MKC-A00

$3.51

9

PLATE, L. SCREEN ADJUSTER

64174-MKC-A00

$3.51

10

STAY, R. WINDSCREEN

64175-MKC-A00

$33.32

11

STAY, L. WINDSCREEN

64176-MKC-A00

$33.32

12

COVER, R. WINDSCREEN *NHA86M* (MAT BALLISTIC BLACK)

64177-MKC-A00ZA

$17.20

13

COVER, L. WINDSCREEN *NHA86M* (MAT BALLISTIC BLACK)

64178-MKC-A00ZA

$17.20

14

RUBBER, WASHER

64179-MKC-A00

$1.78

15

SEAL, WINDSCREEN ADJUSTER

64185-MKC-A00

$7.18

16

WASHER, SCREEN SETTING

64205-166-610

$2.01

17

VISOR ASSY.

64251-MKC-A00

$216.65

18

SWITCH, VISOR OPEN

64273-MKC-A00

$3.12

19

SPRING, VISOR FLAP

64274-MKC-A00

$5.49

20

FLAP, VISOR

64275-MKC-A00

$12.96

21

ARM A

64276-MKC-A00

$3.35

22

ROD, ARM

64277-MKC-A00

$15.30

23

ARM B

64278-MKC-A00

$3.35

24

COVER, FLAP

64279-MKC-A00

$10.86

25

WINDSCREEN

67110-MKC-A00

$676.46

26

GROMMET, AIR CLEANER HOUSING

83551-GE2-000

Unavailable

27

EMBLEM, HONDA (105MM)

86101-MKC-A00

$25.74

28

SCREW, PAN (6X11)

90106-KY2-701

$3.95

29

SCREW, SPECIAL (5X12)

90106-MBY-000

$2.43

30

BOLT, FLANGE (6MM)

90111-162-000

$2.62

31

NUT, COWL SETTING (5MM)

90111-KW3-003

$4.20

32

SCREW, PAN (6X15)

90113-MKC-A00

$2.64

33

SCREW, SPECIAL (5X15)

90114-MKC-A00

$2.75

34

CLIP, BUMPER SEAL

90116-SP0-003

$4.40

35

NUT, PUSH (3MM)

90301-ST0-003

$2.87

36

WASHER, THRUST (5MM)

90504-964-000

$1.72

37

WASHER (9X17X1)

90511-MCS-G50

$1.68

38

WASHER, FR. SIDE COVER

90556-MB4-000

$2.38

39

NUT, CLIP (5MM)

90677-KAN-961

$3.79

40

SCREW, PAN (5X18)

93500-05018-0G

$0.42

41

SCREW, TAPPING (4X8)

93903-24180

$0.75

42

SCREW, TAPPING (4X12)

93903-24380

Unavailable

43

WASHER, PLAIN (6MM) (USED ON TAILLIGHT)

94101-06800

Unavailable

44

WASHER, PLAIN (8MM)

94101-08700

$0.90

45

PIN, SPRING (2X10)

94305-20103

$0.84

46

PIN, SPRING (2X20)

94305-20203

$0.94

47

BOLT, FLANGE (6X12)

95701-06012-08

$1.48
