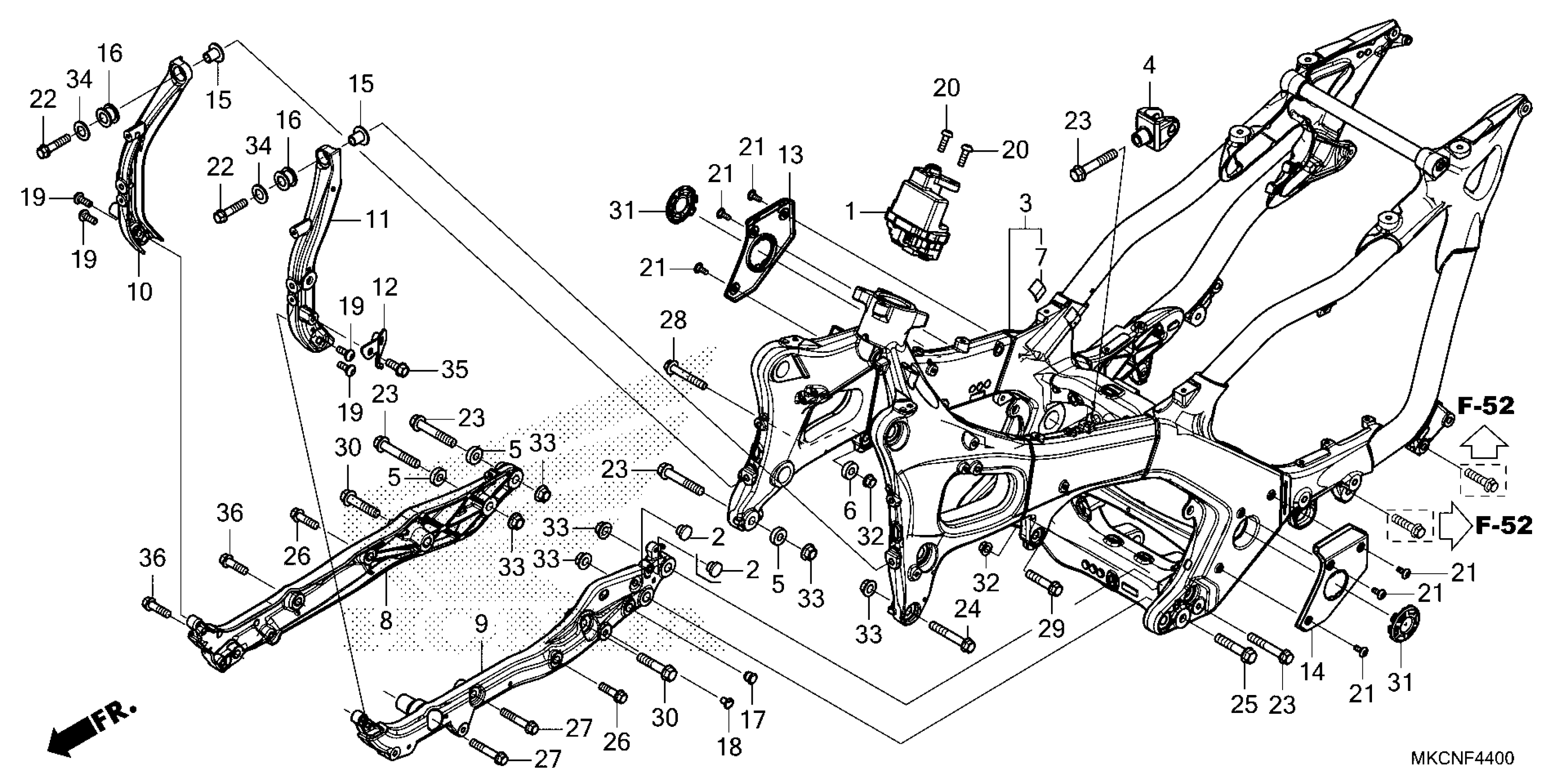

Honda GL1800D2AC (22) MOTORCYCLE, JPN, VIN# JH2SC795-NK400001 FRAME Diagram

#

Description
Price

1

LOCK ASSY., STEERING (ELECTRIC)

06351-MKC-A01

$225.49

2

CAP, RIM HOLE

42717-329-000

$3.90

3

FRAME SET *NHA86M* (MAT BALLISTIC BLACK)

50010-MKC-A01ZC

$4,843.88

4

BRACKET, RR. CUSHION

50121-MKC-A00

$72.03

5

COLLAR A, ENGINE HANGER

50193-MKC-A00

$4.01

6

COLLAR B, ENGINE HANGER

50194-MKC-A00

$3.84

7

RUBBER, CUSHION

50199-MKC-A00

$1.93

8

FRAME, R. (LOWER) *NHA86M* (MAT BALLISTIC BLACK)

50351-MKC-A00ZA

$378.68

9

FRAME, L. (LOWER) *NHA86M* (MAT BALLISTIC BLACK)

50352-MKC-A00ZA

$378.68

10

SUB-FRAME, R. (LOWER) *NHA86M* (MAT BALLISTIC BLACK)

50353-MKC-A00ZA

$95.14

11

SUB-FRAME, L. (LOWER) *NHA86M* (MAT BALLISTIC BLACK)

50354-MKC-A00ZA

$95.14

12

STAY, L. HORN

50356-MKC-A00

$7.46

13

COVER, R. PIVOT PLATE *NH1* (BLACK)

50410-MKC-A00ZB

$7.42

14

COVER, L. PIVOT PLATE *NH1* (BLACK)

50415-MKC-A00ZB

$7.42

15

COLLAR, FRAME (LOWER)

62502-MKC-A00

$4.41

16

RUBBER, FRAME (LOWER)

62503-MKC-A00

$3.91

17

CAP, RR. CARRIER

81212-GF4-000

$4.14

18

CLIP, BRUSH

83614-MKC-A01

$1.93

19

BOLT, SOCKET (8X22)

90100-GCT-J50

$1.77

20

BOLT, ONE-WAY (8MM)

90107-MBG-000

$2.80

21

SCREW, PAN (5X13)

90112-MBS-000

$2.20

22

BOLT, FLANGE (10X45)

90162-MKC-A00

$9.22

23

BOLT, FLANGE (12X70)

90163-MKC-A00

$6.84

24

BOLT, FLANGE (12X60)

90164-MKC-A00

$11.14

25

BOLT, FLANGE (12X60)

90165-MKC-A00

$6.19

26

BOLT, FLANGE (10X35)

90166-GHB-700

$2.64

27

BOLT, FLANGE (10X55)

90166-GHB-740

$4.14

28

BOLT, FLANGE (10X65)

90166-MKC-A00

$10.45

29

BOLT, FLANGE (10X55)

90167-MKC-A00

$9.72

30

BOLT, FLANGE (12X55)

90168-MKC-A00

$5.91

31

CAP, PIVOT *NHB01* (GRAPHITE BLACK)

90312-MKC-A00ZB

$7.99

32

NUT, FLANGE (10MM)

94050-10000

$1.41

33

NUT, FLANGE (12MM)

94050-12000

$0.94

34

WASHER, PLAIN (10MM)

94103-10400

$1.25

35

BOLT, FLANGE (8X20)

95701-08020-08

$1.43

36

BOLT, FLANGE (10X35)

96400-10035-00

$2.04
