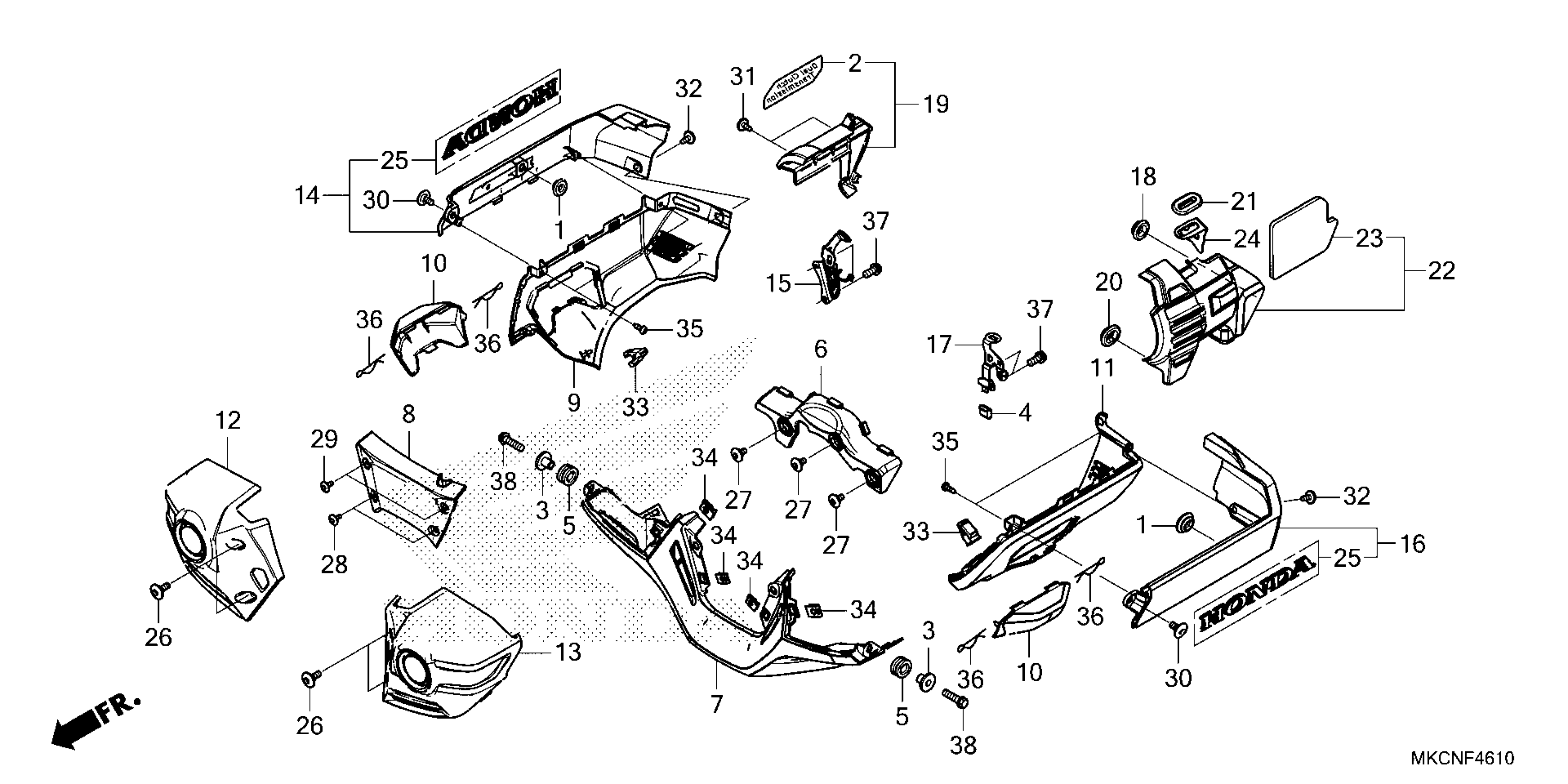

Honda GL1800D2AC (22) MOTORCYCLE, JPN, VIN# JH2SC795-NK400001 ENGINE COVER Diagram

GROMMET B, RR. COVER

11345-MB0-000

$4.06

PLATE, EMBLEM

11378-MKS-E50

$16.90

COLLAR, AIR CLEANER MOUNTING

17239-MGS-D30

$3.92

RUBBER, PROTECTOR GASKET

18293-MCA-A20

$2.05

RUBBER, TAILLIGHT

33712-KT1-670

$4.48

GUIDE, FR. AIR

61110-MKC-A00

$17.51

COWL, FR. (LOWER) (TYPE1)

64400-MKC-L30ZA

$166.13

COWL, FR. (LOWER) (INNER)

64411-MKC-A00

$19.39

COWL, R. (LOWER) *NHA86M* (MAT BALLISTIC BLACK)

64420-MKC-A00ZD

$62.80

COVER, ENGINE GUARD

64421-MKC-A00

$15.47

COWL, L. (LOWER) *NHA86M* (MAT BALLISTIC BLACK)

64430-MKC-A00ZD

$58.05

COVER, R. FR. FOGLIGHT

64440-MKC-AE0

$33.35

COVER, L. FR. FOGLIGHT

64450-MKC-AE0

$35.38

COVER SET, R. CYLINDER HEAD SIDE (WL)

64460-MKC-A10

$222.87

STAY, R. CYLINDER HEAD SIDE COVER

64466-MKC-A00

$15.23

COVER SET, L. CYLINDER HEAD SIDE (WL)

64470-MKC-A10

$222.87

STAY, L. CYLINDER HEAD SIDE COVER

64477-MKC-A00

$9.54

GROMMET, RR. COVER

83504-GE0-000

$2.92

COVER SET, R. ENGINE SIDE

83510-MKC-L00

$40.38

GROMMET, AIR CLEANER HOUSING

83551-GE2-000

$5.80

GROMMET, SIDE COVER

83551-ME9-000

$3.24

COVER ASSY., L. ENGINE SIDE

83560-MKC-A00

$76.00

MAT, L. ENGINE SIDE COVER

83562-MKC-A00

$7.95

STAY, L. ENGINE SIDE COVER

83563-MKC-A00

$5.74

EMBLEM, HONDA (140MM)

86103-MKC-A10

$38.05

SCREW, SPECIAL (5X14)

90102-MKA-D80

$2.90

BOLT, SOCKET (6X18)

90103-K53-D00

$3.38

SCREW, SPECIAL (5X12)

90106-MBY-000

$2.67

SCREW, SPECIAL (5X14)

90113-MCA-A80

$2.18

SCREW, PAN (6X13)

90124-MY6-670

$2.61

SCREW, PAN (5X14)

90132-MJE-D40

$1.49

BOLT, SOCKET (5X12)

90154-MEE-D00

$1.85

CLIP, SNAP FITTING (PO)(NATURAL)

90666-SDA-A01

$1.49

NUT, CLIP (5MM)

90677-KAN-961

$4.07

SCREW, TAPPING (4X12)

93903-24380

$1.49

PIN, LOCK (10MM)

94251-10400

$1.49

BOLT, FLANGE (6X12)

96001-06012-00

$1.80

BOLT, FLANGE (6X22)

96001-06022-00

$1.49
