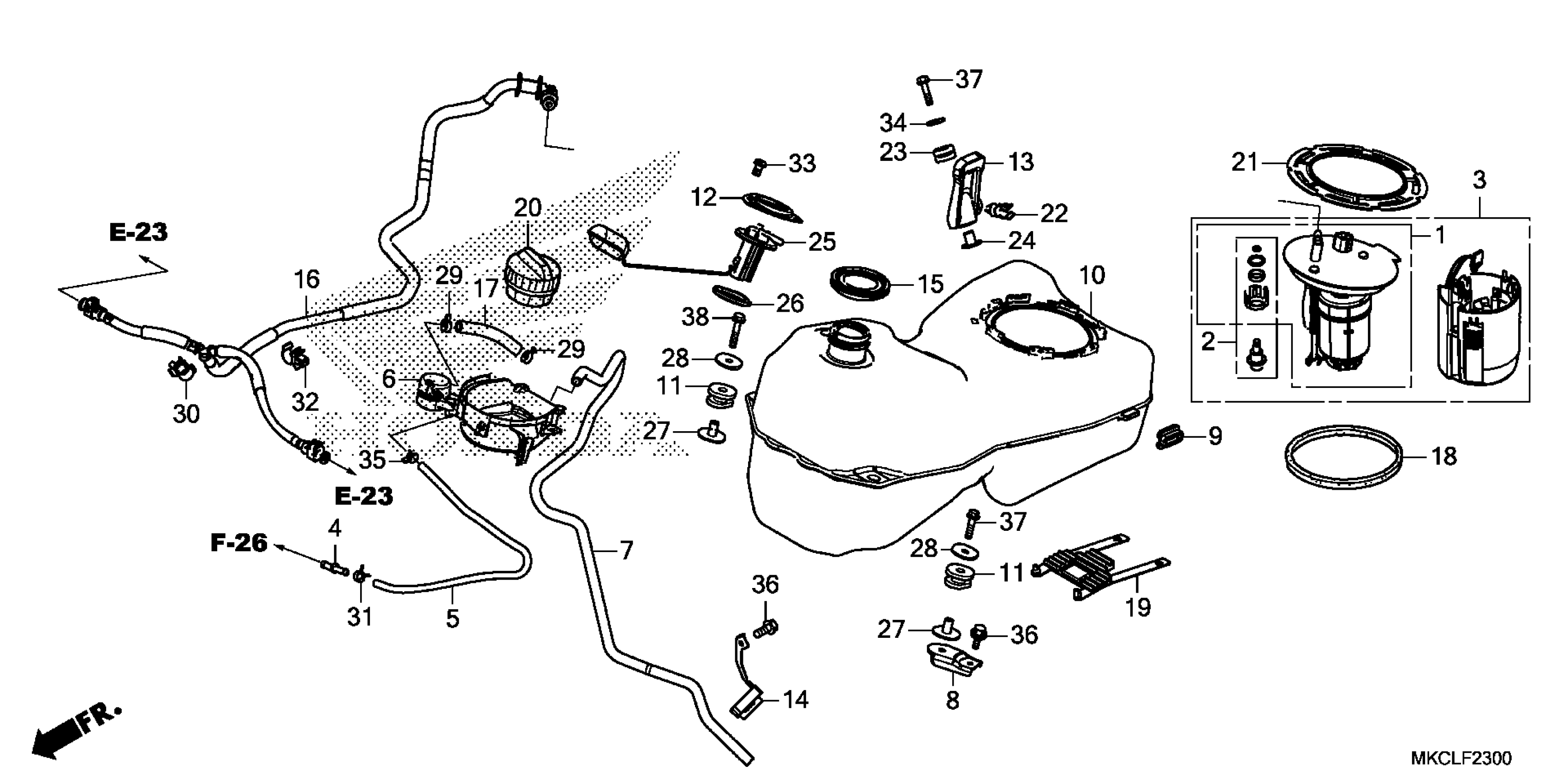

Honda GL1800D2AC (20) MOTORCYCLE, JPN, VIN# JH2SC795-LK200001 FUEL TANK Diagram

FILTER SET, FUEL

16010-MKC-A01

$197.39

REGULATOR ASSY.

16015-MKC-A01

$99.33

PUMP ASSY., FUEL (MSDS) This part replaces 16700-MKC-A01.

16700-MKC-A02

$624.28

PUMP ASSY., FUEL (MSDS)

16700-MKC-A02

$624.28

JOINT, FUEL TUBE

16958-GJ6-000

$4.53

TUBE (FKM)(TANK-JOINT)

17411-MKC-A00

$18.05

TRAY ASSY., FUEL TANK

17505-MKC-A00

$52.49

TUBE, DRAIN

17506-MKC-A00

$25.84

STAY, FR. TANK

17507-MKC-A00

$9.28

RUBBER, TANK STOPPER

17509-MKC-A00

$4.36

TANK, FUEL

17510-MKC-A00

$1,020.75

RUBBER, FUEL TANK MOUNTING

17515-GBB-000

$4.92

PLATE, UNIT SET

17515-GBL-760

$4.93

STAY, RR. TANK

17516-MKC-A00

$7.67

CLAMP, TUBE

17517-MKC-A00

$6.74

RUBBER, FUEL SEAL

17526-KRJ-900

$7.52

HOSE, FUEL FEED

17526-MKC-A01

$224.82

TUBE, SEPARATOR

17561-MKC-A00

$4.07

GASKET, FUEL PUMP

17574-HR3-A21

$4.56

GASKET, FUEL PUMP This part replaces 17574-MKC-A00.

17574-HR3-A21

$4.56

CUSHION, FUEL TANK CENTER

17614-MKC-A00

$23.69

CAP ASSY., FUEL TANK

17620-MEH-003

$44.22

RING, FUEL PUMP LOCKING

17719-HR3-A21

$11.33

CLIP, THROTTLE WIRE

17938-SE0-941

$6.80

RUBBER, RADIATOR MOUNTING

19051-KA3-830

$3.31

COLLAR, RADIATOR MOUNTING

19052-MAC-680

$5.14

FUEL UNIT

37800-MKC-A01

$77.30

GASKET, BASE

37801-GA7-700

$5.17

COLLAR, RR. FENDER

80108-KF9-900

$3.38

WASHER, TANK SETTING

90136-428-870

$1.56

CLAMP, TUBE (12.0)

90651-HN6-A51

$2.07

CLIP

90652-HL4-A01

$1.49

CLAMP, TUBE (8.0)

90652-KSJ-A21

$1.49

CLAMP, HOSE (D15)

90654-HL4-A01

$1.49

SCREW, PAN (6X10) This part replaces 93500-06010.

93500-06010-0A

$1.49

SCREW, PAN (6X10)

93500-06010-0A

$1.49

WASHER, PLAIN (6MM)

94103-06000

$1.49

CLAMP, TUBE (D7.3)

95002-40730-08

$2.52

BOLT, FLANGE (6X16)

96300-06016-00

$1.49

BOLT, FLANGE (6X25)

96300-06025-00

$1.49

BOLT, FLANGE (6X32)

96300-06032-00

$1.49
