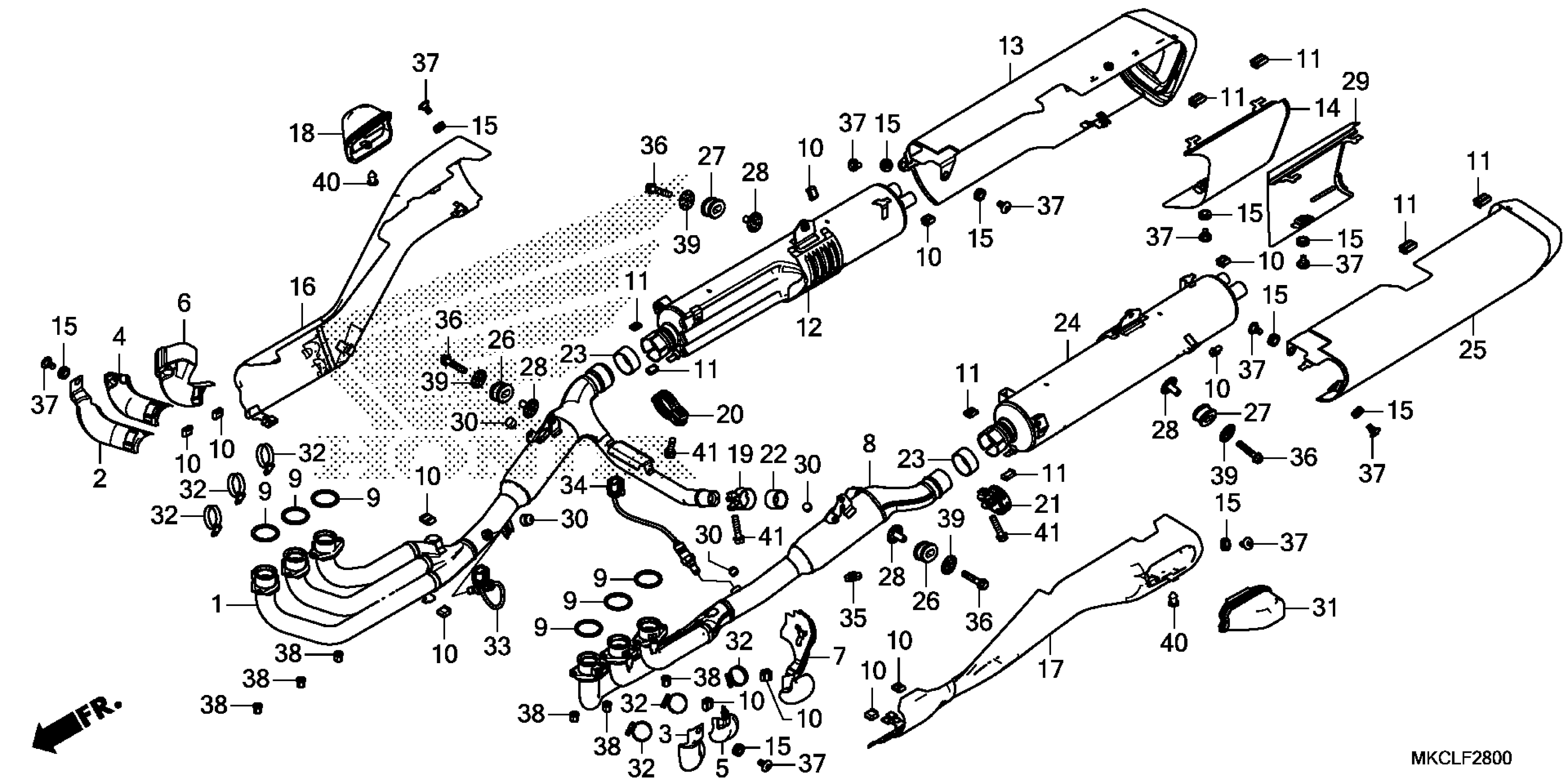

Honda GL1800D2AC (20) MOTORCYCLE, JPN, VIN# JH2SC795-LK200001 EXHAUST MUFFLER Diagram

#

Description
Price

1

PIPE COMP, EX. R This part replaces 18150-MKC-A10.

18150-MKC-A11

$1.00

2

COVER, R. FR. EX.

18151-MKC-A10

$52.05

3

COVER, L. FR. EX.

18152-MKC-A10

$52.05

4

COVER, R. EX. MIDDLE

18153-MKC-A10

$46.79

5

COVER, L. EX. MIDDLE

18154-MKC-A10

$46.79

6

COVER, R. RR. EX.

18155-MKC-A10

$52.05

7

COVER, L. RR. EX.

18156-MKC-A10

$78.03

8

PIPE COMP, EX. L This part replaces 18250-MKC-A10.

18250-MKC-A11

$1.00

9

GASKET, EX. PIPE

18291-MN4-920

$5.31

10

RUBBER, PROTECTOR GASKET

18293-MCA-A20

$2.05

11

RUBBER, PROTECTOR GASKET

18293-MJP-G50

$3.80

12

MUFFLER COMP, EX. R This part replaces 18300-MKC-A00.

18300-MKC-A01

$768.84

13

COVER, R. MUFFLER

18315-MKC-A11

$303.64

14

COVER, R. MUFFLER (INNER)

18325-MKC-A10

$102.03

15

RUBBER, PROTECTOR MOUNTING

18345-MBT-610

$2.18

16

COVER, R. EX. PIPE

18353-MKC-A10

$210.02

17

COVER, L. EX. PIPE

18354-MKC-A10

$210.02

18

COVER, R. SADDLEBAG GUARD

18355-MKC-A00

$24.90

19

BAND, L. EX. PIPE

18374-MN1-670

$14.42

20

BAND, R. MUFFLER

18375-MKC-A00

$32.38

21

BAND, L. MUFFLER

18376-MKC-A00

$32.38

22

GASKET, MUFFLER

18391-MB0-891

$17.92

23

GASKET, RR. MUFFLER

18392-MG7-750

$13.66

24

MUFFLER COMP, EX. L This part replaces 18400-MKC-A00.

18400-MKC-A01

$768.84

25

COVER, L. MUFFLER

18415-MKC-A11

$286.25

26

RUBBER, EX. PIPE MOUNTING

18421-MKC-A00

$23.20

27

RUBBER, MUFFLER MOUNTING

18422-MKC-A00

$7.50

28

COLLAR, EX. PIPE MOUNTING

18423-MFJ-D00

$6.69

29

COVER, L. MUFFLER (INNER)

18425-MKC-A10

$102.03

30

RUBBER, PROTECTOR

18443-MCW-D60

$2.20

31

COVER, L. SADDLEBAG GUARD

18455-MKC-A00

$24.90

32

CLAMP, R. RADIATOR HOSE

19509-MM5-003

$13.58

33

SENSOR, OXYGEN (#1-3-5)

36531-MKC-A01

$225.69

34

SENSOR, OXYGEN (#2-4-6)

36532-MKC-A01

$225.69

35

RUBBER, STAND STOPPER

50524-MN8-000

$6.18

36

BOLT, FLANGE (8X40)

90102-MKC-A00

$3.31

37

SCREW, PAN (6X12)

90106-MKC-A00

$3.33

38

NUT, SPECIAL (6MM)

90304-HB3-771

$6.07

39

WASHER (8.5X38)

90507-MKC-A00

$2.43

40

CLIP, SPLASH GUARD (Honda Code 3795994)

90653-HC4-900

$1.49

41

BOLT, FLANGE (8X35)

96400-08035-04

$1.49
