Description

Price

1

COLLAR, OIL GUIDE

11332-MGS-D20

$26.43

2

SEAL, RING (21.2MM)

22814-RGC-003

$10.40

3

RING, SEAL (28MM)

22815-MGE-D01

$3.77

4

MAINSHAFT (INNER) (18T)

23210-MKC-A00

$451.72

5

PLATE A, BEARING SETTING

23212-MKC-A00

$15.05

6

PLATE B, BEARING SETTING

23213-MKC-A00

$20.36

7

MAINSHAFT (OUTER) (23T)

23230-MKC-A00

$418.97

8

COLLAR, CLUTCH (OUTER)

23235-MKC-A00

$41.43

9

GEAR, MAINSHAFT THIRD (23T)

23451-MKC-A00

$118.69

10

COLLAR (32MM)

23462-MCA-000

$15.48

11

GEAR, MAINSHAFT FOURTH (26T)

23471-MKC-A00

$117.26

12

COLLAR (42X45X11.5)

23472-MKC-A00

$17.08

13

GEAR, MAINSHAFT FIFTH (39T)

23491-MKC-A00

$119.64

14

GEAR, MAINSHAFT SIXTH (42T)

23511-MKC-A00

$135.38

15

GEAR, MAINSHAFT TOP (46T)

23531-MKC-A00

$130.77

16

COLLAR, SPLINE (32X14)

23532-MKC-A00

$18.52

17

SPROCKET, MAINSHAFT REVERSE (25T)

23551-MKC-A00

$61.07

18

CHAIN, REVERSE (40L) (BORG WARNER)

23552-MKC-A01

$79.62

19

NUT, LOCK (25MM)

90231-MCH-000

$6.78

20

WASHER, SPECIAL (25X40X2)

90417-HL4-000

$4.44

21

WASHER, THRUST (25X40X2)

90451-VM0-000

$5.72

22

WASHER, SPLINE (32X31X1)

90452-MKC-A00

$3.10

23

WASHER, SPLINE (42X49.5X1.5)

90493-MKC-A00

$9.23

24

WASHER, THRUST (28MM)

90554-MCA-000

$2.39

25

CLIP (33.2MM)

90601-MGE-D00

$4.75

26

CIRCLIP (42MM)

90602-MKC-A00

$5.48

27

COLLAR, NEEDLE BEARING

90603-MKC-A00

$32.93

28

CIRCLIP (32MM)

90604-MCA-780

$3.46

29

COLLAR B, NEEDLE BEARING

90604-MGE-D00

$7.79

30

BEARING, NEEDLE (28X33X16.8) (NTN)

91012-PZ4-003

$67.90

31

BEARING, NEEDLE (28X32X27.2) (THOMPSON)

91021-ML3-003

$17.87

32

BEARING, RADIAL BALL (40X76X18)

91023-MKC-A01

$40.02

33

BEARING, RADIAL BALL (25X62X17) (EC)

91024-MKC-A01

$28.00

34

O-RING (35X2.2)

91302-MGS-D20

$2.31

35

O-RING (23.3X1.9)

91306-MGE-D01

$1.93

36

O-RING (35.5X1.9)

91320-RT4-003

$1.77

37

O-RING (29X2.4) (NOK)

91344-PC9-004

$3.51

38

CIRCLIP (INNER) (40)

94520-40150

$2.02

39

BOLT, FLANGE (6X16) (Honda Code 2410892)

95701-06016-00

$1.55

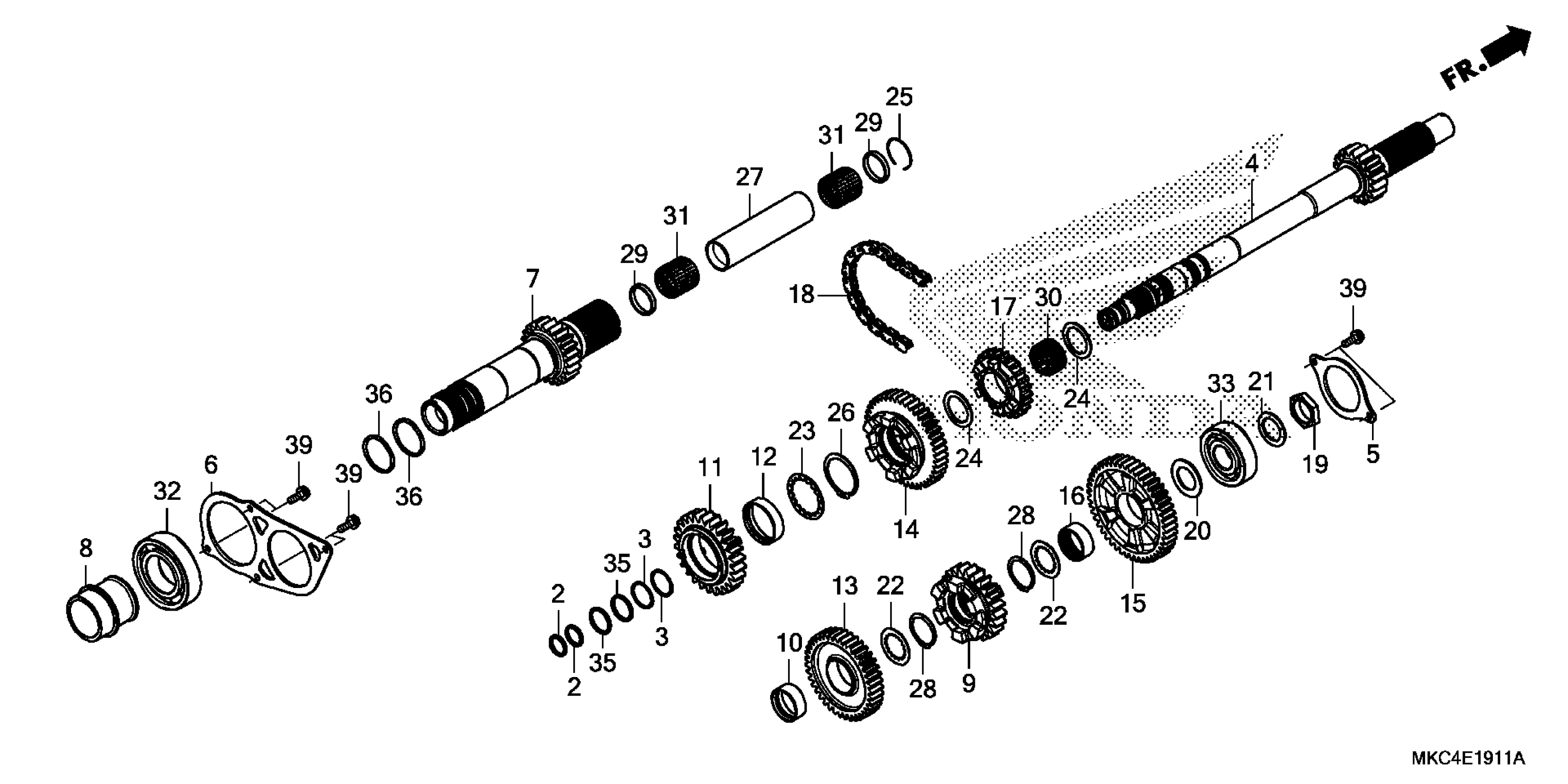

Honda GL1800D2AC (18) MOTORCYCLE, JPN, VIN# JH2SC795-JK000001 TRANSMISSION (MAINSHAFT) (DCT) Diagram
