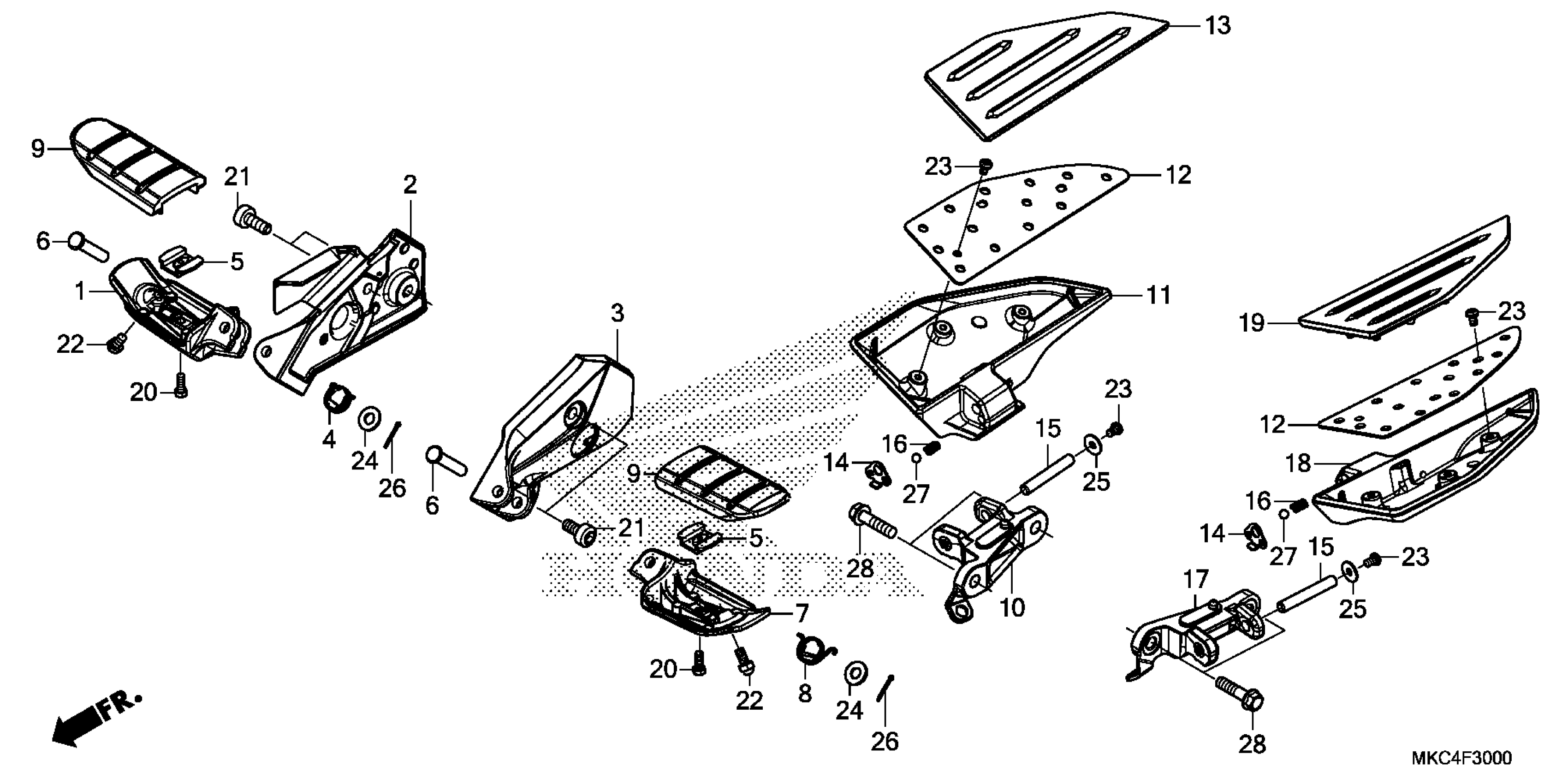

Honda GL1800D2AC (18) MOTORCYCLE, JPN, VIN# JH2SC795-JK000001 STEP Diagram

ARM, R. STEP

50612-MKC-A00

$20.02

BRACKET, R. MAIN STEP *NH460M* (OMEGA SILVER METALLIC)

50613-MKC-A00ZA

$43.21

BRACKET, L. MAIN STEP *NH460M* (OMEGA SILVER METALLIC)

50614-MKC-A00ZA

$43.21

SPRING, R. STEP RETURN

50617-MM5-000

$4.78

PLATE, STEP SETTING

50619-MKC-A00

$8.39

PIN, STEP BAR

50639-MFL-D20

$2.92

ARM, L. STEP

50642-MKC-A00

$20.02

SPRING, L. STEP RETURN

50644-MM5-000

$4.78

RUBBER, STEP

50661-MKC-A00

$14.73

HOLDER, R. PILLION STEP *NH460M* (OMEGA SILVER METALLIC)

50715-MKC-A00ZA

$42.18

ARM, R. PILLION STEP *NH460M* (OMEGA SILVER METALLIC)

50716-MKC-A00ZA

$94.33

PLATE, PILLION STEP

50717-MKC-A00

$27.33

RUBBER, R. PILLION STEP

50718-MKC-A00

$17.51

PLATE, PILLION STEP CLICK

50720-MKC-A00

$4.56

PIN, PILLION STEP

50721-MKC-A00

$5.00

SPRING, PILLION STEP ADJUST CLICK

50746-MT8-770

$2.13

HOLDER, L. PILLION STEP *NH460M* (OMEGA SILVER METALLIC)

50815-MKC-A00ZA

$42.18

ARM, L. PILLION STEP *NH460M* (OMEGA SILVER METALLIC)

50816-MKC-A00ZA

$94.33

RUBBER, L. PILLION STEP

50818-MKC-A00

$17.51

BOLT, MAIN STEP RUBBER SETTING

90115-MT3-000

$2.70

BOLT, SOCKET (8X19)

90158-MKC-A00

$2.66

BOLT, CAP (6X12)

92501-06012-0A

$2.41

BOLT, FLANGE (8X62)

93500-05008-0A

$1.49

WASHER, PLAIN (8MM)

94101-08000

$1.49

WASHER, PLAIN (5MM)

94103-05800

$1.49

PIN, COTTER (2.0X15)

94201-20150

$1.49

BALL, STEEL (#8) (1/4)

96211-08000

$1.49

BOLT, FLANGE (8X32)

96400-08032-00

$2.17
