Description

Price

1

RUBBER, FUEL PUMP STOPPER

16712-MN5-000

$2.68

2

STAY, SHELTER

50280-MKC-A00

$41.16

3

SEAT, DOUBLE HEATED (TYPE1)

77200-MKC-A01ZA

$1,608.44

4

RUBBER B, SEAT SETTING

77205-286-000

$5.04

5

RUBBER, SEAT SETTING

77206-426-000

$4.83

6

STAY, R. FR. SEAT

77206-MKC-A00

$12.15

7

STAY, L. FR. SEAT

77207-MKC-A00

$12.41

8

HEATED SEAT, BACK (TYPE1) (NOT AVAILABLE)

77500-MKC-A01ZA

$494.82

12

GRIP ASSY., L. PASSENGER NHA86M (MAT BALLISTIC BLACK)

84110-MKC-A00ZA

$172.78

13

GRIP, R. PASSENGER NHA86M (MAT BALLISTIC BLACK)

84150-MKC-A00ZA

$124.01

14

BUTTON, HELMET HOLDER NHA86M (MAT BALLISTIC BLACK)

84160-MKC-A00ZB

$38.93

15

SPRING, BUTTON RETURN

84163-MKC-A00

$2.71

16

PLATE A, HELMET HOLDER

84164-MKC-A00

$2.00

17

PLATE B, HELMET HOLDER

84166-MKC-A00

$4.71

18

CABLE, HELMET HOLDER

84167-MKC-A01

$15.51

20

BOLT, SPECIAL (M6)

90107-KTW-900

$3.73

21

SCREW, TAPPING (5X12)

90121-MJK-N20

$2.07

22

COLLAR (8MM)

90450-KG8-000

$4.56

23

NUT, CLIP (5MM)

90677-KAN-961

$3.89

24

SCREW, TAPPING (4X12)

93903-24310

Unavailable

25

SCREW, TAPPING (5X16)

93903-25380

$0.90

26

NUT, FLANGE (5MM)

94050-05070

$1.28

27

WASHER, PLAIN (8MM)

94101-08800

$1.74

28

WASHER, PLAIN (4MM)

94103-04800

$0.91

29

BOLT, FLANGE (8X32)

95801-08032-00

$1.91

30

BOLT, SOCKET (8X22)

96700-08022-18

$1.85

31

PLATE, HELMET HOLDER

81250-MKC-A00

$14.18

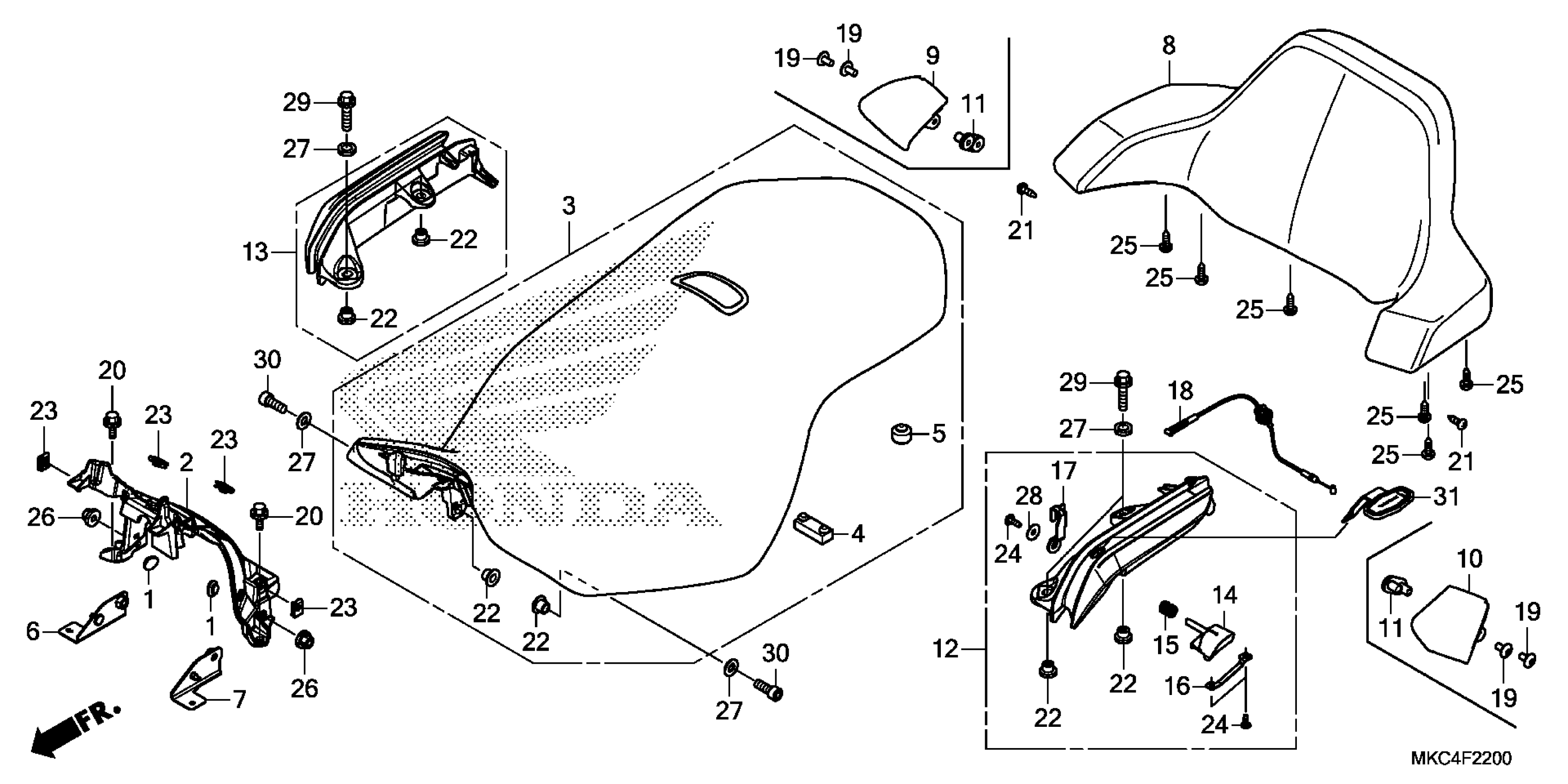

Honda GL1800D2AC (18) MOTORCYCLE, JPN, VIN# JH2SC795-JK000001 SEAT Diagram
