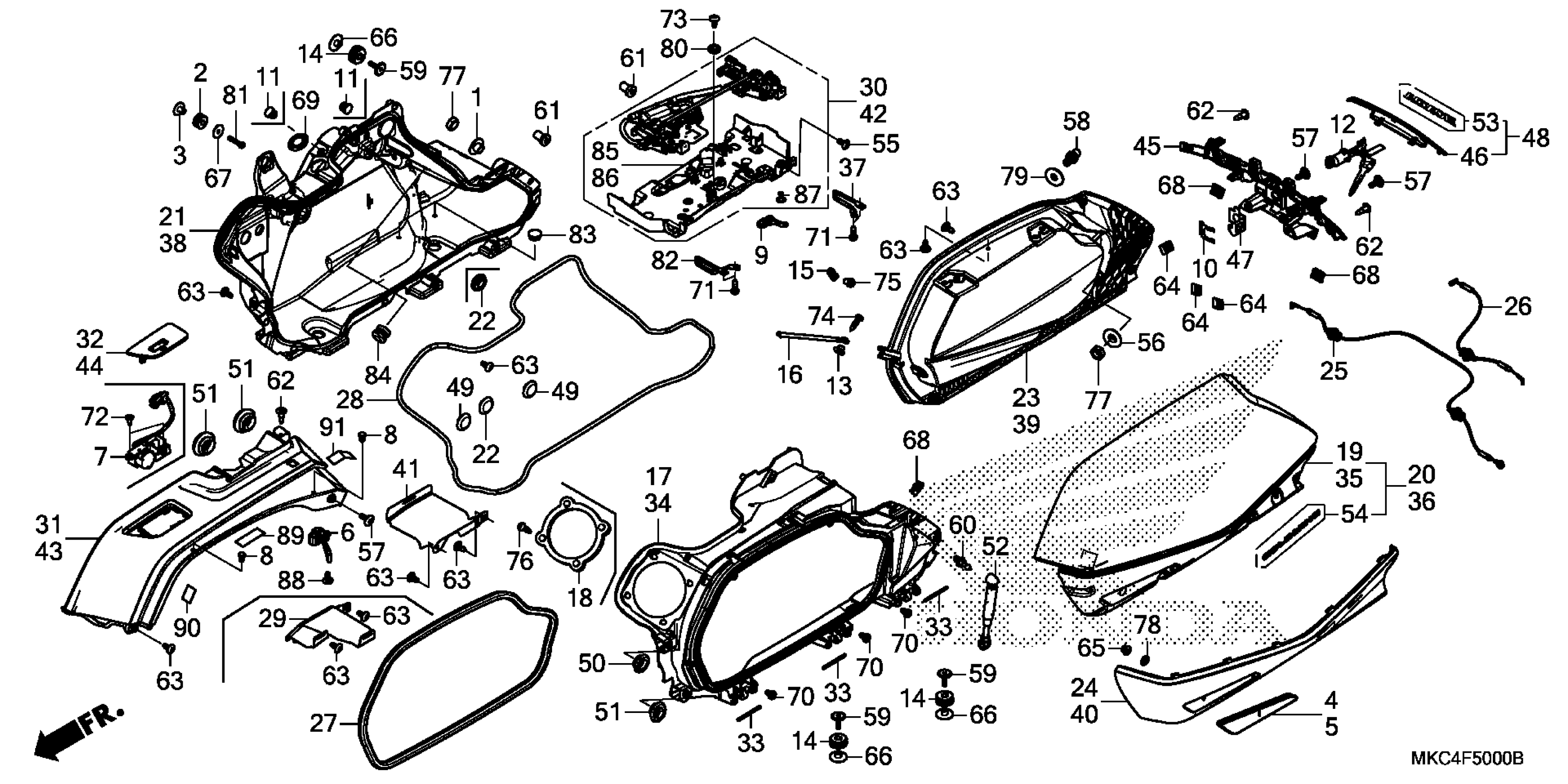

Honda GL1800D2AC (18) MOTORCYCLE, JPN, VIN# JH2SC795-JK000001 SADDLEBAG Diagram

#

Description
Price

1

COLLAR (8MM)

18422-MR1-000

$5.19

2

RUBBER, RADIATOR MOUNTING

19051-KA3-710

$4.83

3

COLLAR, RADIATOR MOUNTING

19052-KA3-710

$6.60

4

REFLECTOR, R. RR. REFLEX This part replaces 33743-MKC-A01.

33743-MKC-A04

$50.09

4

REFLECTOR, R. RR. REFLEX | Use up to Frame SN JK003527. This part replaces 33743-MKC-A02.

33743-MKC-A04

$50.09

4

REFLECTOR, R. RR. REFLEX This part replaces 33743-MKC-A03.

33743-MKC-A04

$50.09

5

REFLECTOR, L. RR. REFLEX This part replaces 33744-MKC-A01.

33744-MKC-A04

$50.62

5

REFLECTOR, L. RR. REFLEX | Use up to Frame SN JK003527. This part replaces 33744-MKC-A02.

33744-MKC-A04

$50.62

5

REFLECTOR, L. RR. REFLEX This part replaces 33744-MKC-A03.

33744-MKC-A04

$50.62

6

SWITCH ASSY., LID OPENER

35380-MKC-A01

$44.50

7

SWITCH ASSY., PASSENGER

39500-MKC-A01

$83.69

8

PLUG, HEAD PIPE

50049-046-000

$1.88

9

LEVER, HOT STARTER

53190-MEN-670

$15.57

10

SPRING, LOCK KEY SETTING

75581-GN8-920

$4.58

11

RUBBER, SEAT SIDE (RIGHT SIDE)

77212-965-000

$4.71

12

KEY, EMERGENCY This part replaces 77234-MKC-A01.

77234-MKC-A02

$41.82

13

COLLAR, FENDER SETTING

80103-MCJ-750

$2.38

14

RUBBER, SADDLEBAG MOUNTING

80201-MCA-000

$14.34

15

STAY B, LID STOPPER

81254-MN5-000

$4.99

16

CABLE, SADDLEBAG STOPPER

81255-MKC-A00

$12.99

17

BODY, R. SADDLEBAG

81311-MKC-A00

$671.49

19

LID SET, R. SADDLEBAG (TYPE1) (WL)

81320-MKC-A50ZA

$759.91

21

PANEL, R. SADDLEBAG

81331-MKC-A00

$220.85

22

PLUG, BLIND (20MM)

81336-MKC-A00

$4.82

23

INNER LID, R. SADDLEBAG

81341-MKC-A00

$216.43

24

COVER, R. SADDLEBAG LID *NH1* (BLACK)

81344-MKC-A00ZA

$59.90

25

CABLE, R. SADDLEBAG EMERGENCY

81345-MKC-A01

$20.90

26

CABLE, L. SADDLEBAG EMERGENCY

81346-MKC-A01

$14.18

27

RUBBER, SADDLEBAG LID SEAL

81350-MKC-A00

$44.96

28

RUBBER, BACK PANEL SEAL

81351-MKC-A00

$20.91

29

GUARD, R. SADDLEBAG HEAT

81359-MKC-A00

$17.01

30

CATCH ASSY., R. SADDLEBAG

81365-MKC-A01

$284.60

31

COVER, R. SADDLEBAG (UPPER) (TYPE6)

81393-MKC-A00ZF

$162.94

32

COVER, R. SADDLEBAG SWITCH

81395-MKC-A00

$23.69

33

PIN, SADDLEBAG HINGE

81401-MKC-A00

$3.97

34

BODY, L. SADDLEBAG

81411-MKC-A00

$671.49

35

LID SET, L. SADDLEBAG (TYPE1) (WL)

81420-MKC-A50ZA

$759.91

37

ROD B, SADDLEBAG STRIKER

81424-MKC-A00

$14.18

38

PANEL, L. SADDLEBAG

81431-MKC-A00

$220.85

39

INNER LID, L. SADDLEBAG

81441-MKC-A00

$216.43

40

COVER, L. SADDLEBAG LID *NH1* (BLACK)

81444-MKC-A00ZA

$41.47

41

GUARD, L. SADDLEBAG HEAT

81459-MKC-A00

$14.18

42

CATCH ASSY., L. SADDLEBAG

81465-MKC-A01

$284.60

43

COVER, L. SADDLEBAG (UPPER) (TYPE6)

81493-MKC-A00ZF

$162.94

44

COVER, L. SADDLEBAG SWITCH

81495-MKC-A00

$23.69

45

COWL, RR. CENTER SADDLEBAG

81501-MKC-A00

$44.79

46

COVER, RR. CENTER SADDLEBAG

81502-MKC-A00

$16.10

47

STAY, EMERGENCY CABLE

81504-MKC-A00

$7.07

49

GROMMET, DRAIN HOLE (25MM)

82871-671-000

$5.52

50

GROMMET, RR. COVER

83504-GE0-000

$2.80

51

GROMMET, AIR CLEANER HOUSING

83551-GE2-000

$5.38

52

DAMPER, SADDLEBAG LID

83590-MKC-A01

$49.28

55

SCREW, SPECIAL (5X16)

90001-MG1-000

$4.28

56

COLLAR A, FENDER SETTING

90006-KC5-000

$1.74

57

SCREW, SPECIAL (5X14)

90101-MJJ-D30

$3.01

58

STUD, BALL

90108-KWR-003

$5.37

59

SCREW, SPECIAL (6MM)

90109-MCA-000

$3.46

60

STUD, BALL

90109-SCK-003

$18.53

61

NUT, WELL (5MM)

90111-MGS-D70

$3.23

62

CLIP, BUMPER SEAL

90116-SP0-003

$4.50

63

SCREW, TAPPING (5X12)

90121-MJK-N20

$2.07

64

NUT, SPRING (5MM)

90301-KE1-003

$3.01

65

NUT, FLANGE (5MM) (FUSE RASHI)

90301-MG8-000

$4.31

66

COLLAR, SADDLEBAG MOUNTING

90501-MCA-000

$4.83

67

WASHER, FENDER MOUNTING

90506-430-000

$2.75

68

NUT, CLIP (5MM)

90677-KAN-961

$3.89

69

GROMMET (30MM)

90830-T0T-003

$0.54

70

SCREW, TAPPING (4X8)

93901-24180

$0.71

71

SCREW, TAPPING (5X16)

93901-25380

$0.90

72

SCREW, TAPPING (4X10)

93903-24280

Unavailable

73

SCREW, TAPPING (4X10)

93903-24220

$0.90

74

SCREW, TAPPING (5X20)

93903-25420

$0.87

75

SCREW, TAPPING (4X16)

93911-14480

$0.90

77

NUT, HEX. (8MM)

94001-08000-0S

$1.31

78

WASHER, PLAIN (5MM)

94101-05800

$0.91

79

WASHER, PLAIN (8MM)

94101-08000

Unavailable

80

WASHER, PLAIN (4MM)

94103-04800

$0.91

81

BOLT, FLANGE (6X32)

96001-06032-00

$1.29

82

ROD A, SADDLEBAG STRIKER

81324-MKC-A00

$14.18

83

PLUG, HOLE

50317-254-000

$2.07

84

PLUG, HOLE

50318-041-600

$2.04

85

COVER, R. SADDLEBAG CATCH

81362-MKC-A00

Unavailable

86

COVER, L. SADDLEBAG CATCH

81462-MKC-A00

Unavailable

87

SCREW (5X12)

90112-MJK-N20

$2.07

88

SCREW, TAPPING (3X8)

93903-32180

$0.87

89

TAPE E, PROTECTION

81998-MKC-A00

$2.96

90

TAPE D, PROTECTION

81997-MKC-A01

$1.97

91

TAPE F, PROTECTION

81999-MKC-A00

$3.50
