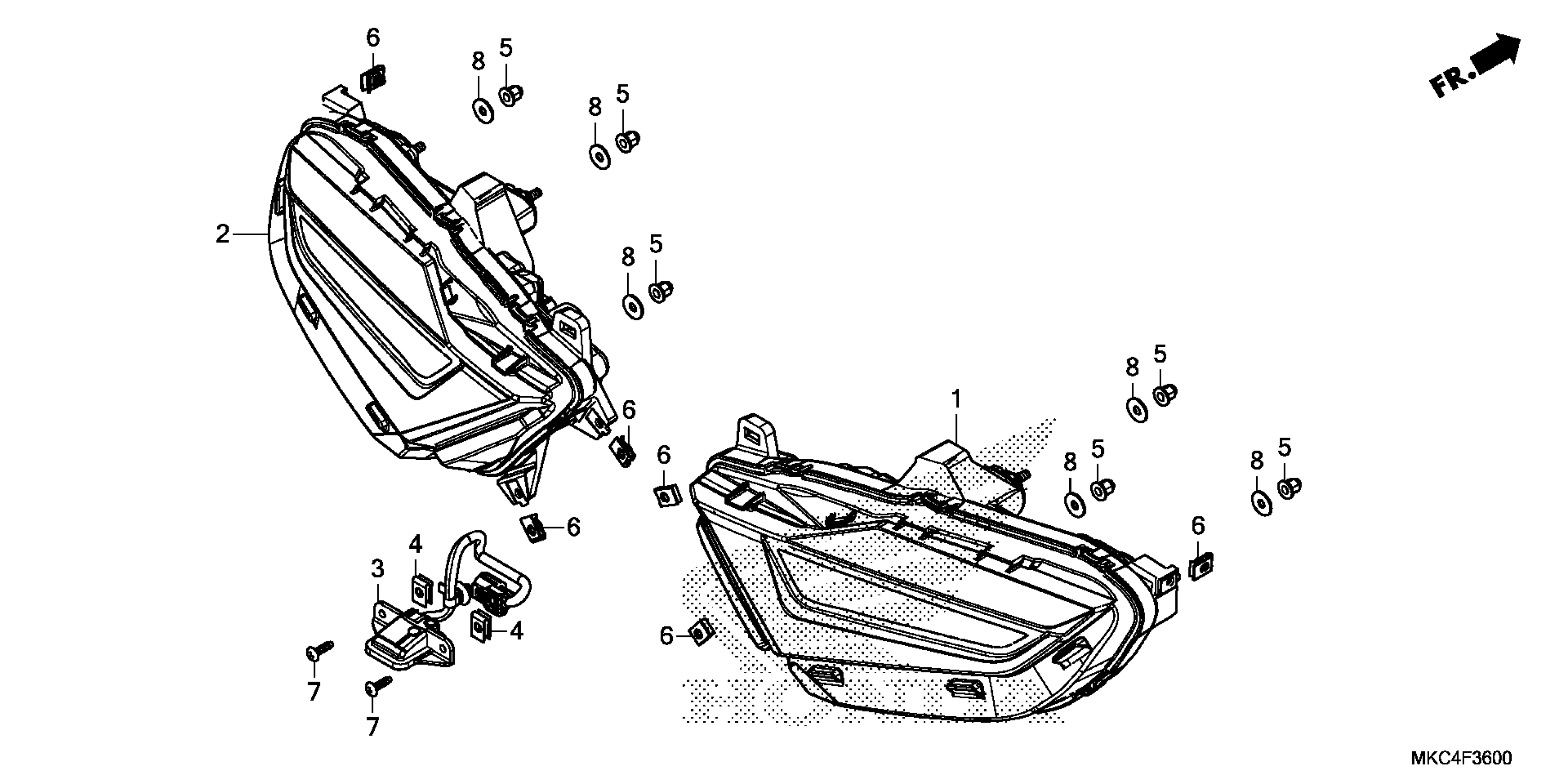

Honda GL1800D2AC (18) MOTORCYCLE, JPN, VIN# JH2SC795-JK000001 REAR COMBINATION LIGHT Diagram

#

Description

Price

1

LIGHT ASSY., R. RR. COMBINATION | Use up to Frame SN JK002270.

33500-MKC-A02

$434.99

1

LIGHT ASSY., R. RR. | Use from Frame SN JK002271.

33500-MKC-A03

$429.75

2

LIGHT ASSY., L. RR. COMBINATION | Use up to Frame SN JK002270.

33550-MKC-A02

$429.85

2

LIGHT ASSY., L. RR | Use from Frame SN JK002271.

33550-MKC-A03

$429.85

3

LIGHT ASSY., LICENSE

33720-MKC-A01

$110.88

4

NUT, COWL (UPPER)

66871-KY2-700

$2.22

5

NUT, HEX. CAP (5MM)

90321-SLE-000

$5.68

6

NUT, CLIP (5MM)

90677-KAN-961

$3.89

7

SCREW, TAPPING (4X16)

93903-24480

$0.90

8

WASHER, PLAIN (5MM)

94103-05800

$0.91
