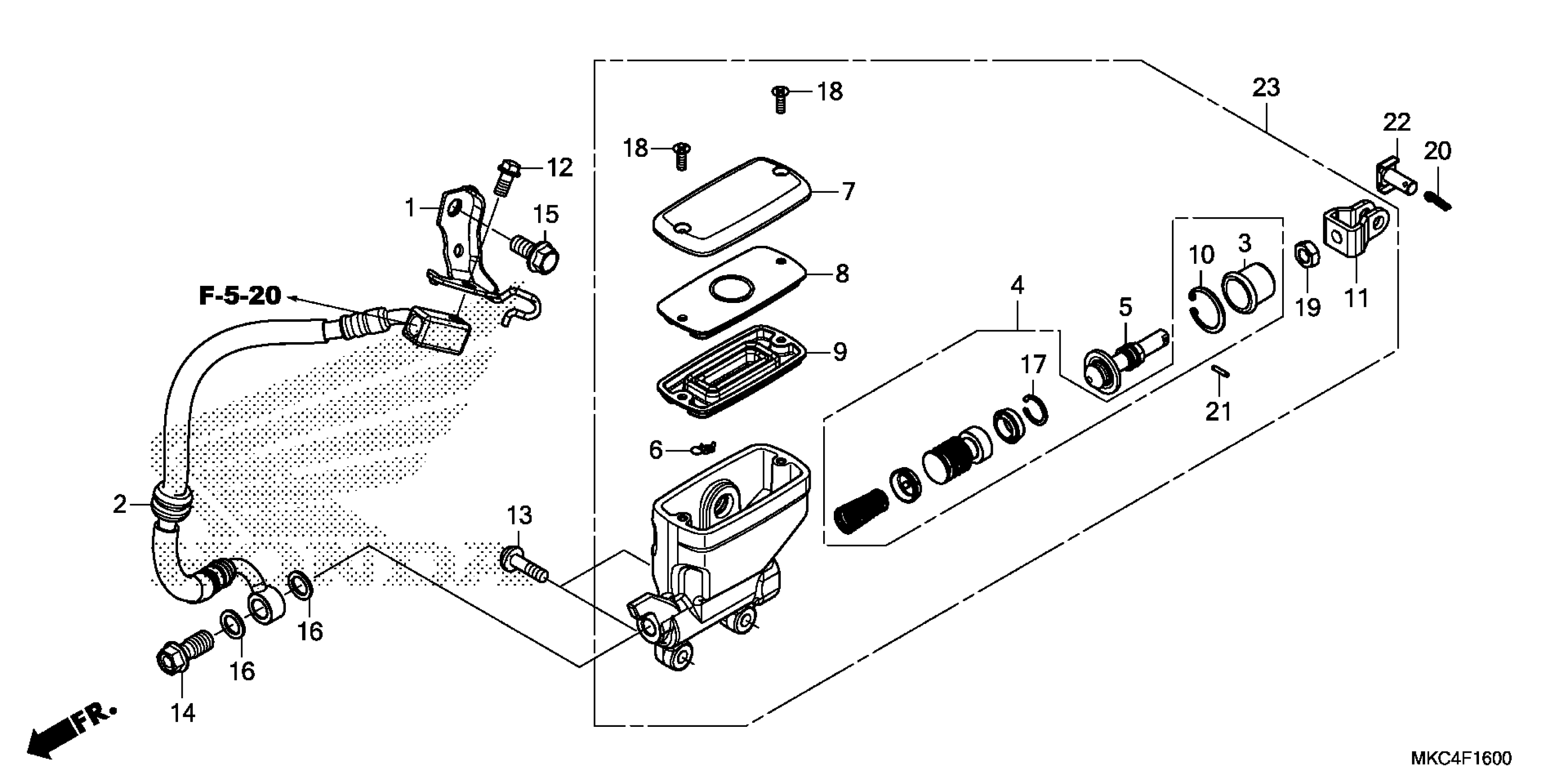

Honda GL1800D2AC (18) MOTORCYCLE, JPN, VIN# JH2SC795-JK000001 REAR BRAKE MASTER CYLINDER Diagram

STAY B, RR. BRAKE

43163-MKC-A00

$6.65

HOSE A, RR. BRAKE

43310-MKC-A01

$45.88

BOOT

43504-MB2-006

$9.01

PISTON SET, RR. MASTER CYLINDER

43520-MKC-A01

$24.10

ROD ASSY., PUSH

43530-MKC-A01

$20.26

PROTECTOR

45512-MA6-006

$3.99

CAP, MASTER CYLINDER (NISSIN)

45513-MM5-016

$20.12

PLATE, DIAPHRAGM (NISSIN)

45518-MM5-006

$9.57

DIAPHRAGM (NISSIN)

45520-MM5-006

$13.57

CIRCLIP

46182-MEL-D21

$1.77

JOINT, BRAKE ROD

46504-MAH-671

$13.01

BOLT, FLANGE (6X12) (L. SIDE ONLY)

90013-GHB-610

$2.12

BOLT, RR. MASTER CYLINDER (6X21)

90144-MKC-A00

$2.81

BOLT, OIL (10X22) (SAGA)

90145-MS9-612

$6.82

BOLT, FLANGE (8X16)

90164-GHB-630

$1.93

WASHER, OIL BOLT

90545-300-000

$3.72

CIRCLIP, PISTON

90651-MBG-006

$2.59

SCREW, FLAT (4X12)

93600-04012-0G

$0.83

SCREW, FLAT (4X12) This part replaces 93600-04012-1G.

93600-04012-0G

$0.83

NUT, HEX. (8MM)

94002-08070-0S

$1.19

PIN, COTTER (2.0X15)

94201-20150

$0.94

PIN, SPRING (2X10)

94305-20102

$0.80

PIN D, JOINT

95015-54000

$3.95

MASTER CYLINDER ASSY., RR. (NISSIN)

43500-MKC-A01

$233.30
