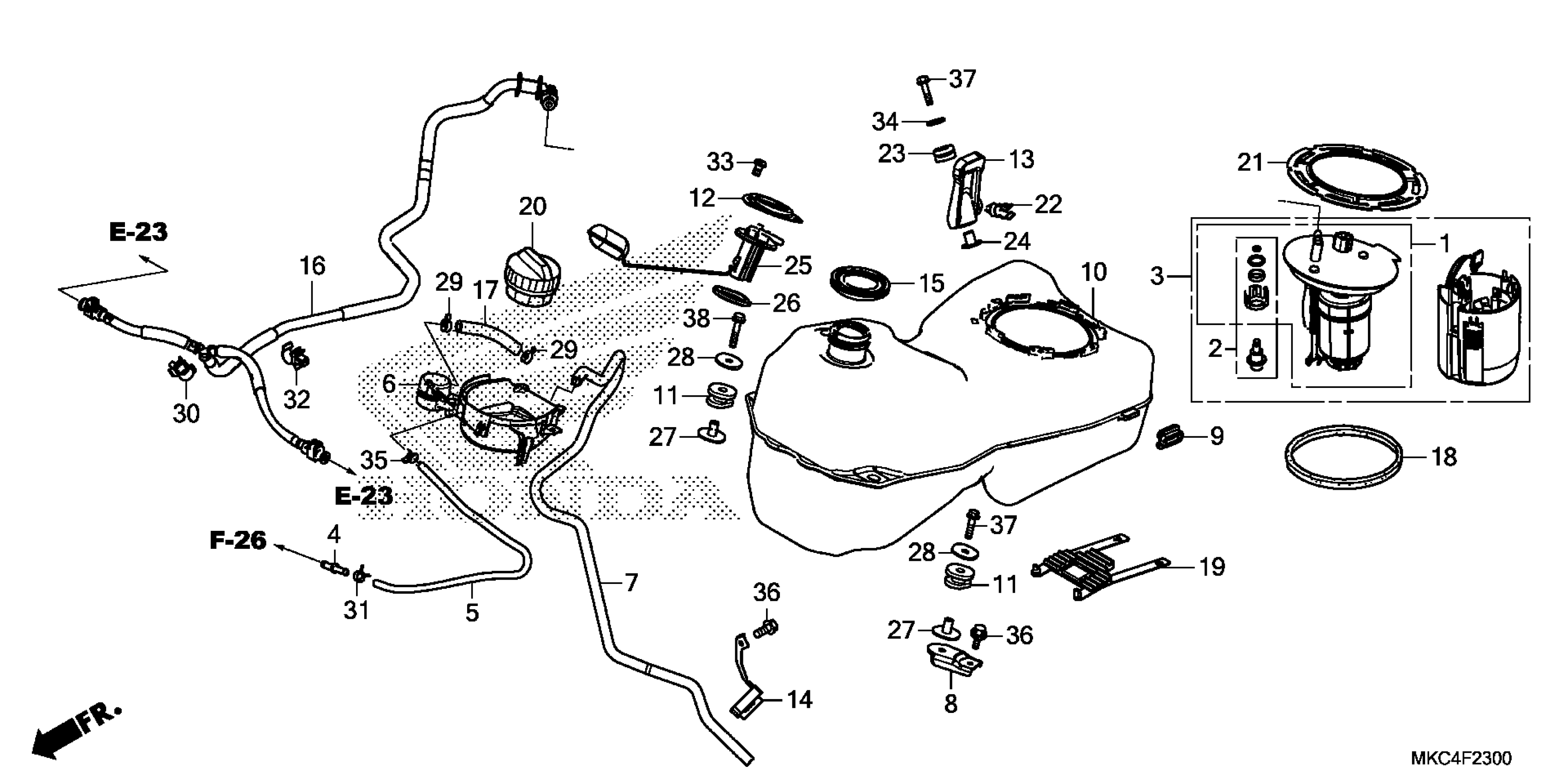

Honda GL1800D2AC (18) MOTORCYCLE, JPN, VIN# JH2SC795-JK000001 FUEL TANK Diagram

FILTER SET, FUEL

16010-MKC-A01

$182.37

REGULATOR ASSY.

16015-MKC-A01

$91.78

PUMP ASSY., FUEL (MSDS) This part replaces 16700-MKC-A01.

16700-MKC-A02

$576.85

JOINT, FUEL TUBE

16958-GJ6-000

$4.40

TUBE (FKM)(TANK-JOINT)

17411-MKC-A00

$16.68

TRAY ASSY., FUEL TANK

17505-MKC-A00

$48.50

TUBE, DRAIN

17506-MKC-A00

$23.87

STAY, FR. TANK

17507-MKC-A00

$8.57

RUBBER, TANK STOPPER

17509-MKC-A00

$4.03

TANK, FUEL

17510-MKC-A00

$943.09

RUBBER, FUEL TANK MOUNTING

17515-GBB-000

$4.54

PLATE, UNIT SET

17515-GBL-760

$4.56

STAY, RR. TANK

17516-MKC-A00

$7.09

CLAMP, TUBE

17517-MKC-A00

$6.22

RUBBER, FUEL SEAL

17526-KRJ-900

$6.96

HOSE, FUEL FEED

17526-MKC-A01

$207.71

TUBE, SEPARATOR

17561-MKC-A00

$3.75

GASKET, FUEL PUMP

17574-HR3-A21

$4.23

GASKET, FUEL PUMP | Use from Frame SN JK001952. This part replaces 17574-MKC-A00.

17574-HR3-A21

$4.23

CUSHION, FUEL TANK CENTER

17614-MKC-A00

$21.88

CAP ASSY., FUEL TANK

17620-MEH-003

$40.59

RING, FUEL PUMP LOCKING

17719-HR3-A21

$10.10

CLIP, THROTTLE WIRE

17938-SE0-941

Unavailable

RUBBER, RADIATOR MOUNTING

19051-KA3-830

$3.16

COLLAR, RADIATOR MOUNTING

19052-MAC-680

$4.90

FUEL UNIT

37800-MKC-A01

$71.43

GASKET, BASE

37801-GA7-700

$4.93

COLLAR, RR. FENDER

80108-KF9-900

$3.12

WASHER, TANK SETTING

90136-428-870

$1.44

CLAMP, TUBE (12.0)

90651-HN6-A51

$1.91

CLIP

90652-HL4-A01

$0.44

CLAMP, TUBE (8.0)

90652-KSJ-A21

$1.34

CLAMP, HOSE (D15)

90654-HL4-A01

$0.50

SCREW, PAN (6X10) This part replaces 93500-06010.

93500-06010-0A

$0.94

SCREW, PAN (6X10)

93500-06010-0A

$0.94

WASHER, PLAIN (6MM)

94103-06000

Unavailable

CLAMP, TUBE (D7.3)

95002-40730-08

$2.34

BOLT, FLANGE (6X16)

96300-06016-00

Unavailable

BOLT, FLANGE (6X25)

96300-06025-00

$1.35

BOLT, FLANGE (6X32)

96300-06032-00

$1.28
