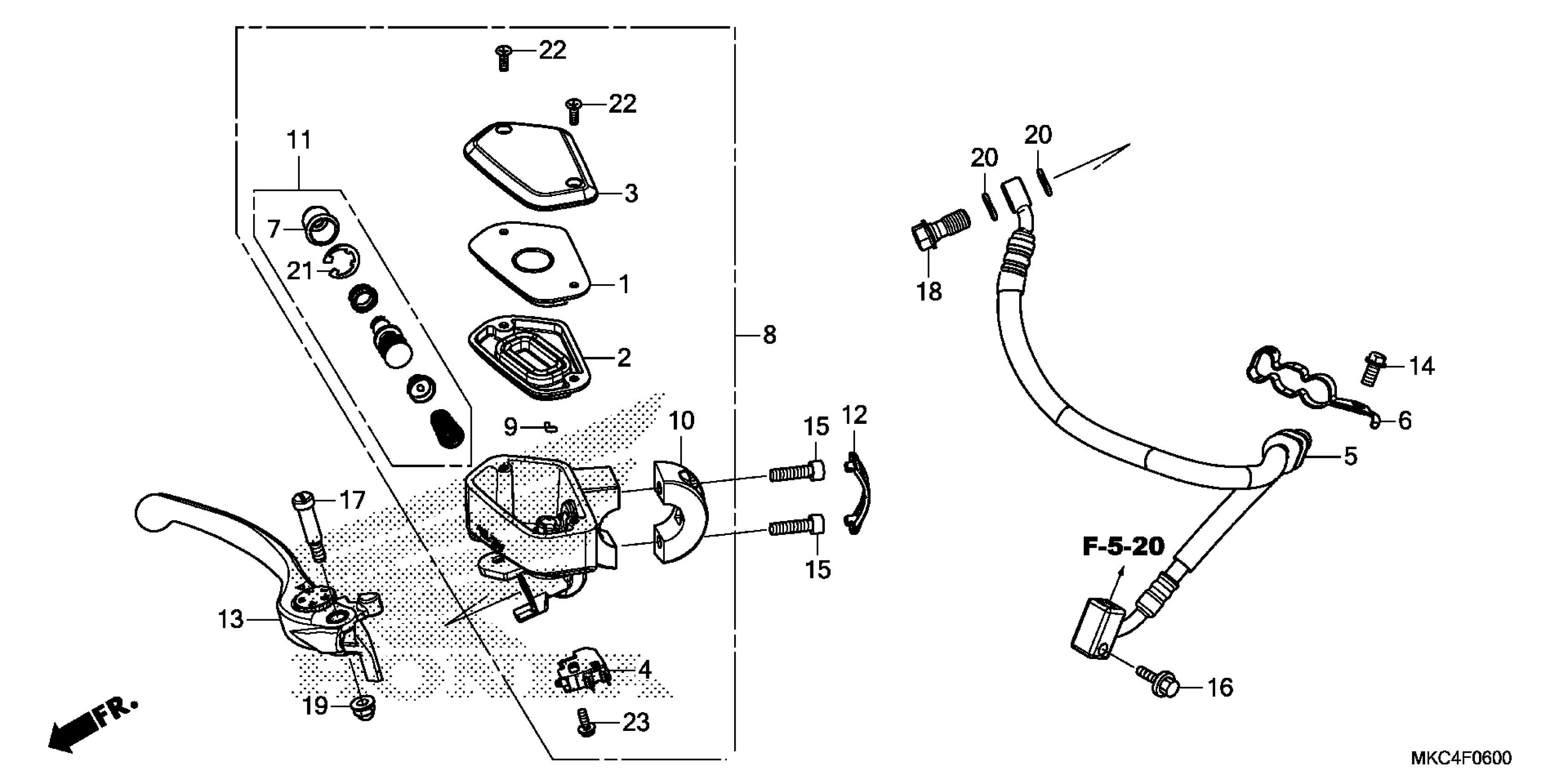

Honda GL1800D2AC (18) MOTORCYCLE, JPN, VIN# JH2SC795-JK000001 FRONT BRAKE MASTER CYLINDER Diagram

PLATE, DIAPHRAGM

22887-MGE-006

$7.90

DIAPHRAGM

22888-MGE-006

$13.16

CAP, MASTER CYLINDER

22889-MGE-006

$34.13

SWITCH ASSY., FR. STOP

35340-MGS-D31

$18.50

HOSE A, FR. BRAKE

45123-MKC-A01

$62.64

CLAMP A, FR. BRAKE

45155-MKC-A00

$7.02

BOOT

45504-410-003

$12.16

MASTER CYLINDER SUB-ASSY., FR. BRAKE

45510-MKC-A01

$259.10

PROTECTOR

45512-MA6-006

$4.28

HOLDER, MASTER CYLINDER

45517-MAM-A62

$14.27

MASTER CYLINDER SET

45530-MA5-671

$71.69

CAP, BRAKE MASTER CYLINDER HOLDER

45553-MAM-A60

$3.12

LEVER ASSY., R. HANDLE

53170-MKC-A01

$60.03

BOLT, FLANGE (6X12) (L. SIDE ONLY)

90013-GHB-610

$2.33

BOLT, SOCKET (6X22)

90101-MCL-000

$1.49

BOLT, FLANGE (6MM)

90111-187-000

$5.59

BOLT, HANDLE LEVER

90114-MG9-951

$7.88

BOLT, OIL (10X22) (SAGA)

90145-MS9-612

$7.54

NUT, CAP (6MM)

90202-ZV0-000

$2.91

WASHER, OIL BOLT

90545-300-000

$3.99

CIRCLIP

90651-MA5-671

$2.66

SCREW, FLAT (4X12)

93600-04012-0G

$1.49

SCREW, FLAT (4X12) This part replaces 93600-04012-1G.

93600-04012-0G

$1.49

SCREW-WASHER (4X12)

93893-04012-07

$1.49

SCREW-WASHER (4X12) This part replaces 93893-04012-17.

93893-04012-07

$1.49
