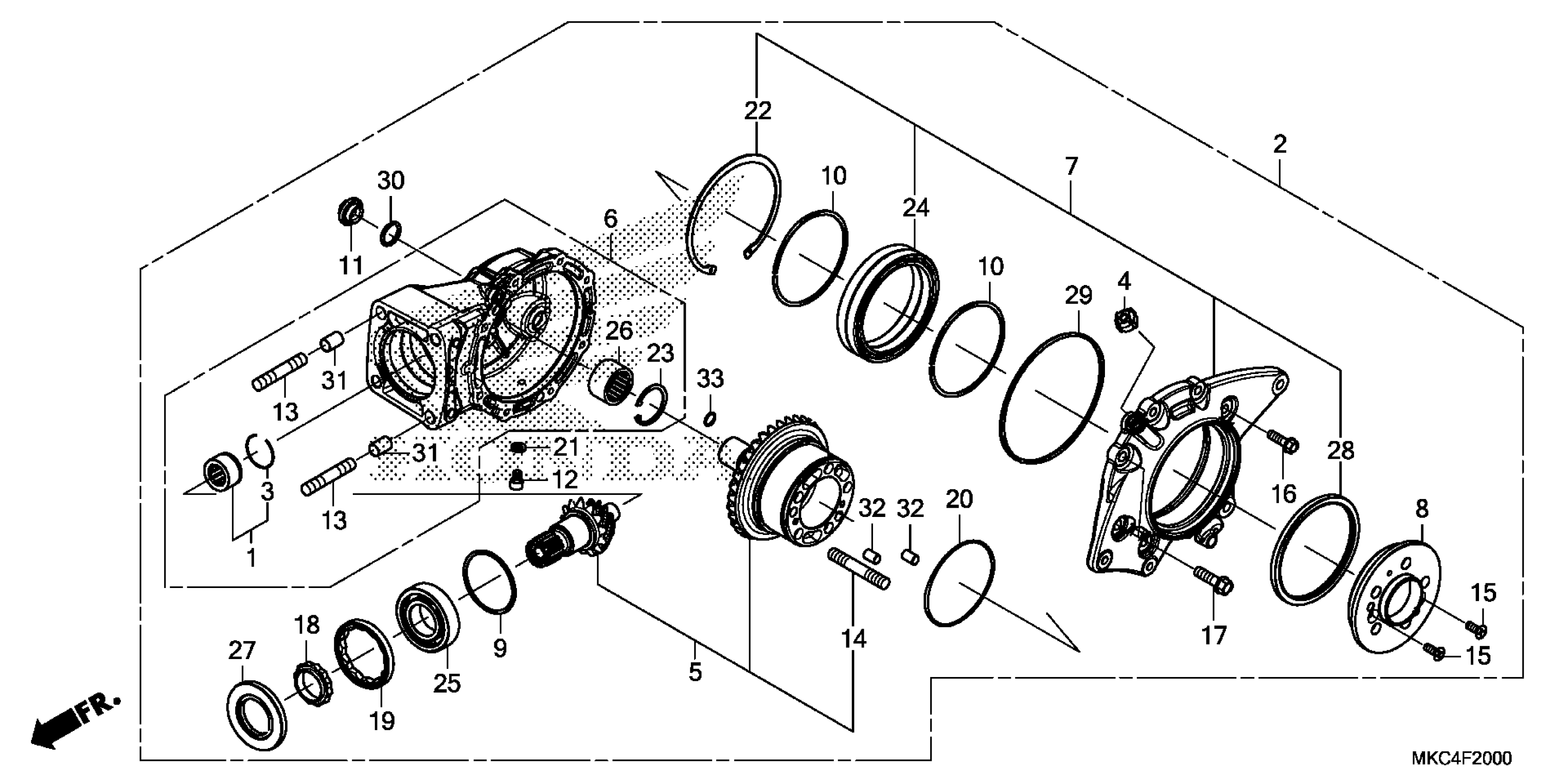

Honda GL1800D2AC (18) MOTORCYCLE, JPN, VIN# JH2SC795-JK000001 FINAL DRIVEN GEAR Diagram

#

Description
Price

1

BEARING SET, NEEDLE

06910-MCA-000

$18.21

2

GEAR ASSY., FINAL

41300-MKC-A00

$1,846.89

3

RING, STOPPER

41305-MB4-770

$5.62

4

CAP, BREATHER

41306-MKC-A00

$7.15

5

GEAR SET, FINAL

41310-MKC-A00

$463.74

6

CASE SUB-ASSY., FINAL GEAR

41311-MKC-A00

$1,080.26

7

COVER SUB-ASSY., FINAL GEAR

41320-MKC-A00

$295.57

8

FLANGE, FINAL GEAR SIDE

41441-MKC-A00

$114.05

9

SHIM A, PINION GEAR (1.32)

41450-MGE-000

$10.87

9

SHIM B, PINION GEAR (1.38)

41451-MGE-000

$10.87

9

SHIM C, PINION GEAR (1.44)

41452-MGE-000

$10.87

9

SHIM D, PINION GEAR (1.50)

41453-MGE-000

$10.87

9

SHIM E, PINION GEAR (1.56)

41454-MGE-000

$10.87

9

SHIM F, PINION GEAR (1.62)

41455-MGE-000

$10.87

9

SHIM G, PINION GEAR (1.68)

41456-MGE-000

$10.87

10

SHIM A, RING GEAR (1.82)

41530-MCA-000

$7.85

10

SHIM B, RING GEAR (1.88)

41531-MCA-000

$7.85

10

SHIM C, RING GEAR (1.94)

41532-MCA-000

$7.85

10

SHIM D, RING GEAR (2.00)

41533-MCA-000

$7.85

10

SHIM E, RING GEAR (2.06)

41534-MCA-000

$7.85

10

SHIM F, RING GEAR (2.12)

41535-MCA-000

$7.85

10

SHIM G, RING GEAR (2.18)

41536-MCA-000

$7.85

10

SHIM H, RING GEAR (2.24)

41537-MCA-000

$7.85

10

SHIM I, RING GEAR (2.30)

41538-MCA-000

$7.85

10

SHIM J, RING GEAR (2.36)

41539-MCA-000

$7.85

10

SHIM K, RING GEAR (2.42)

41540-MCA-000

$7.85

10

SHIM L, RING GEAR (2.48)

41541-MCA-000

$7.85

10

SHIM S, RING GEAR (1.76)

41547-MCA-000

$8.49

11

CAP, FINAL GEAR CASE HOLE

41530-MGE-000

$16.69

12

BOLT, SOCKET (8X11)

90109-ME5-770

$5.73

13

BOLT, STUD (12X48)

90124-MGE-300

$10.48

14

BOLT, STUD (12X51)

90125-MKC-A00

$5.77

15

SCREW, FLAT (6X16)

90132-MCA-000

$1.49

16

BOLT, FLANGE (8X28)

90132-MKC-A00

$2.79

17

BOLT, FLANGE (10X35)

90134-MGE-000

$2.89

18

NUT, LOCK (35MM)

90241-MCH-000

$8.54

19

NUT, LOCK (75MM)

90242-MCH-000

$24.26

20

O-RING

90351-MCA-003

$5.81

21

WASHER (8MM)

90471-580-000

$2.92

22

CIRCLIP (INNER) (125MM)

90653-MCA-000

$19.64

23

CIRCLIP (INNER) (42)

90654-MKC-A01

$3.93

24

BEARING, RADIAL BALL (100X125X26)

91051-MCA-003

$118.51

25

BEARING, BALL SPECIAL (35X72X17)

91054-MKC-A01

$30.85

26

BEARING, NEEDLE (30X42X23)

91057-MKC-A01

$20.03

27

OIL SEAL (42X76X8)

91254-MKC-A01

$14.33

28

OIL SEAL (110X125X7)

91265-MCA-003

$21.71

29

O-RING, FINAL GEAR CASE

91351-MKC-A00

$10.48

30

O-RING (21.5X2.9)

91352-MGE-003

$1.93

31

PIN A, DOWEL (14X20)

94301-14200

$2.28

32

PIN, DOWEL (10X16)

94303-10160

$2.34

33

O-RING (12X1.5)

91355-MGE-700

$1.95
