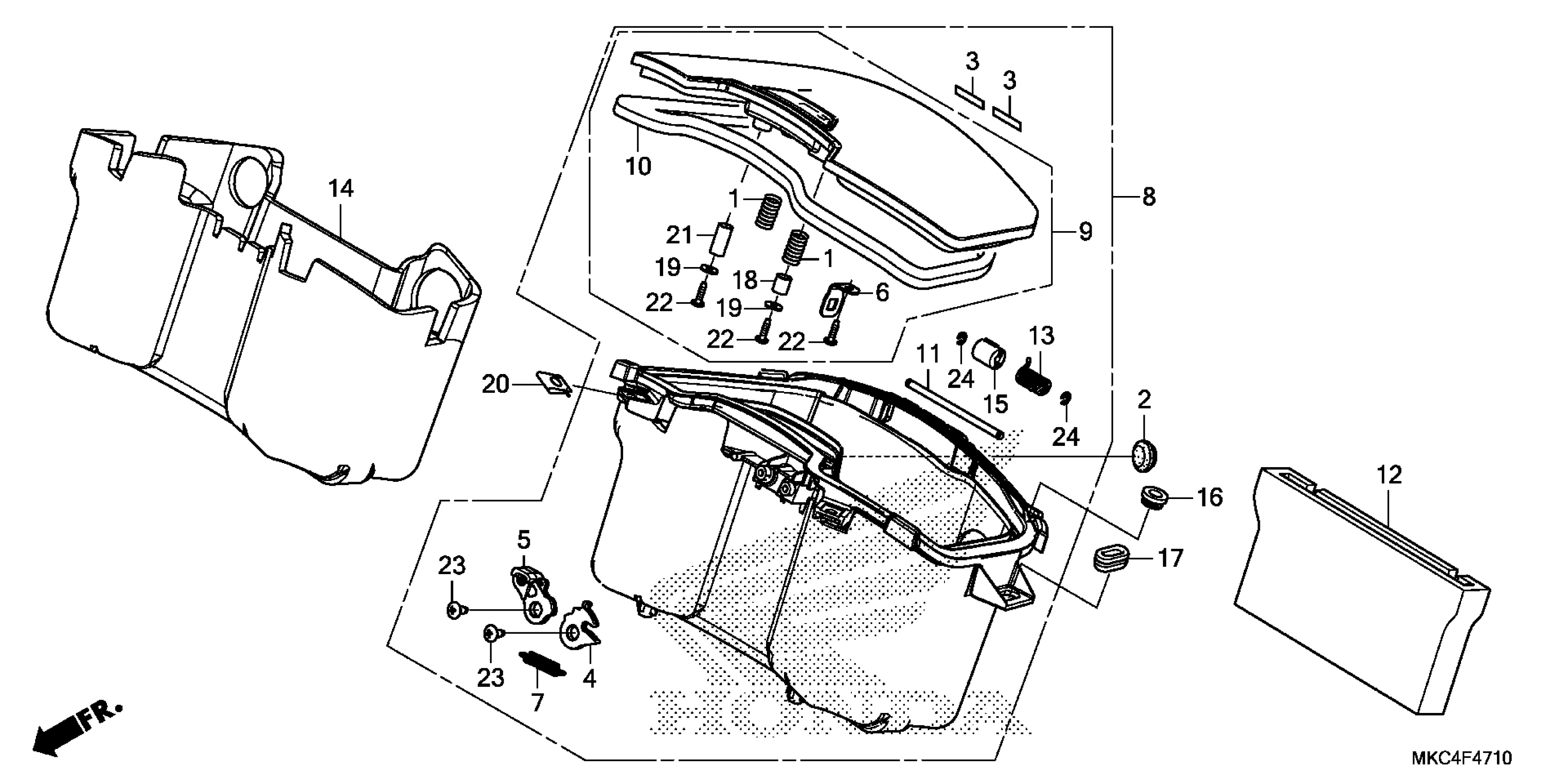

Honda GL1800D2AC (18) MOTORCYCLE, JPN, VIN# JH2SC795-JK000001 CENTER POCKET Diagram

#

Description
Price

1

SPRING, COIL

38253-898-000

$1.39

2

GROMMET, WASHER HOLE

38564-SA5-000

$7.26

3

CUSHION, FR. CENTER COWL

64205-MEJ-J00

$1.22

4

CAM A, POCKET COVER LOCK

64428-MKC-A00

$7.90

5

CAM B, POCKET COVER LOCK

64429-MKC-A00

$7.90

6

PLATE, POCKET LOCK

64431-MCA-000

$3.77

7

SPRING, POCKET LOCK CAM

64436-MCA-000

$4.36

8

POCKET ASSY., CENTER (TYPE6)

83210-MKC-A00ZJ

$155.90

9

LID ASSY., CENTER POCKET (TYPE6)

83211-MKC-A00ZJ

$76.00

10

SEAL, CENTER POCKET

83235-MKC-A00

$6.64

11

PIN, CENTER POCKET

83236-MKC-A00

$4.35

12

MAT, CENTER POCKET

83240-MKC-A00

$24.16

13

SPRING, CENTER POCKET

83241-MKC-A00

$4.64

14

CASE, CENTER POCKET (OUTER)

83242-MKC-A00

$81.64

15

DAMPER, POCKET

83245-MKC-A00

$5.04

16

GROMMET, SIDE COVER (16MM ATTACHES PROTECTOR SET, SIDE TO COVER, PILLION STEP)

83501-MG7-000

$2.38

17

GROMMET A, SIDE COVER

83601-MB0-000

$4.20

18

COLLAR, BATTERY (LOWER)

83607-356-000

$2.71

19

WASHER, PLAIN (4MM) (Honda Code 0331462)

94101-04800

$0.90

20

NUT, CLIP (5MM)

90677-KAN-961

$3.79

21

COLLAR A

91551-883-T00

$2.67

22

SCREW, TAPPING (4X10)

93903-24220

$0.83

23

SCREW, TAPPING (4X10)

93903-24280

$1.23

24

E-RING (3MM)

94540-03010

$1.00
