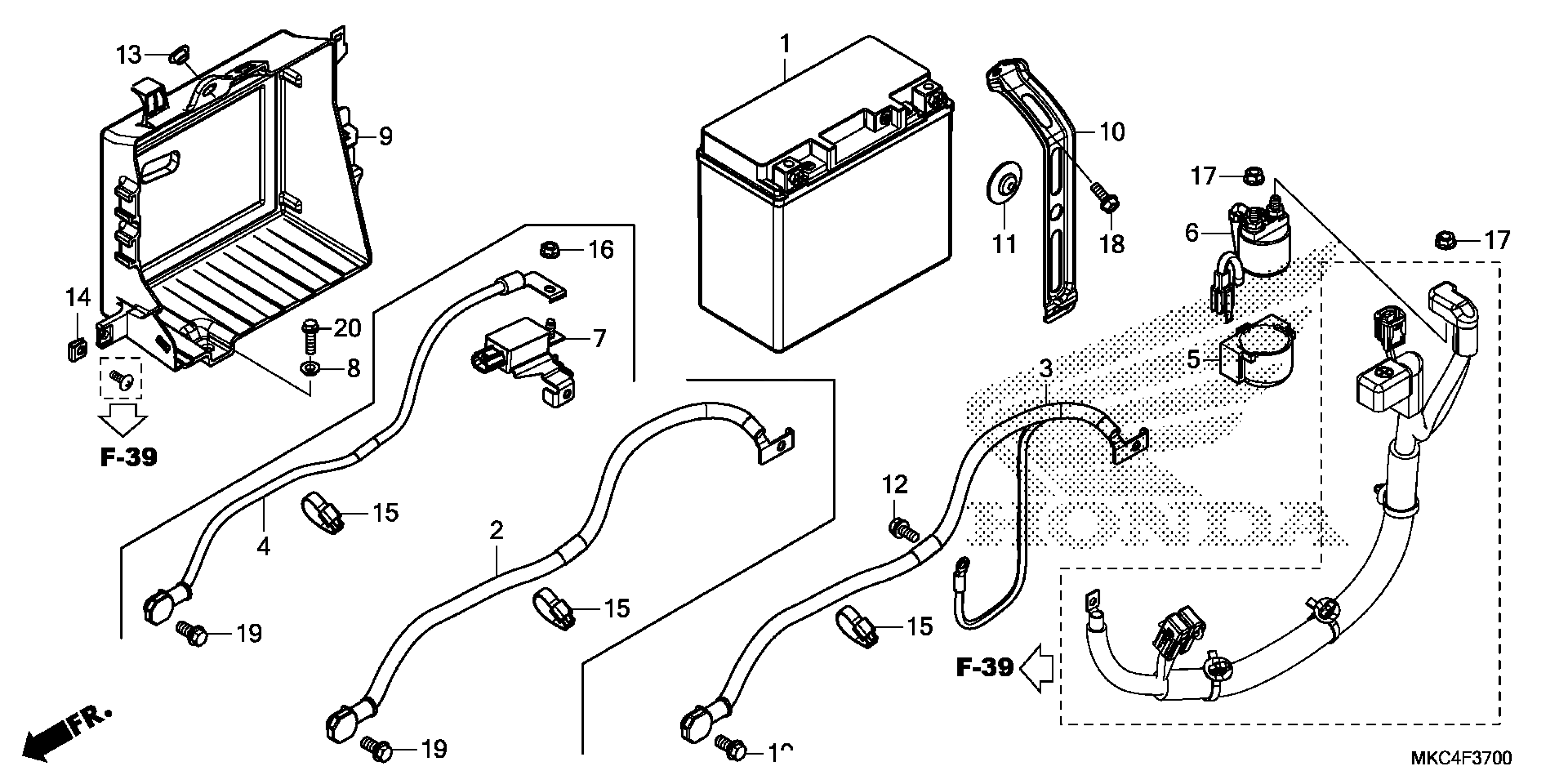

Honda GL1800D2AC (18) MOTORCYCLE, JPN, VIN# JH2SC795-JK000001 BATTERY Diagram

#

Description

Price

1

BATTERY,GYZ20L This part replaces 31500-MCA-R31.

31500-MCA-R32AH

$147.85

1

BATTERY (GYZ20L) (YUASA) (MSDS)

31500-MCA-R31AH

Unavailable

2

CABLE, BATTERY GROUND

32601-MKC-A00

$24.98

8

COLLAR, FR. FENDER (RR.)

61105-KM7-910

$3.10

9

BOX, BATTERY

80111-MKC-A00

$37.66

10

BAND, BATTERY

80112-MKC-A00

$18.05

11

RUBBER, BATTERY BOX

83618-323-000

$2.47

13

COLLAR (6X4)

90127-KF0-770

$3.42

14

NUT, CLIP (5MM)

90312-MT3-000

$4.57

15

BAND, WIRE (BLACK)

90652-KT1-771

$4.48

18

BOLT, FLANGE (6X16) (Honda Code 2410892)

95701-06016-00

$1.55

19

BOLT, FLANGE (6X12)

96001-06012-00

$1.80

20

BOLT, FLANGE (6X20)

96001-06020-07

$1.49
