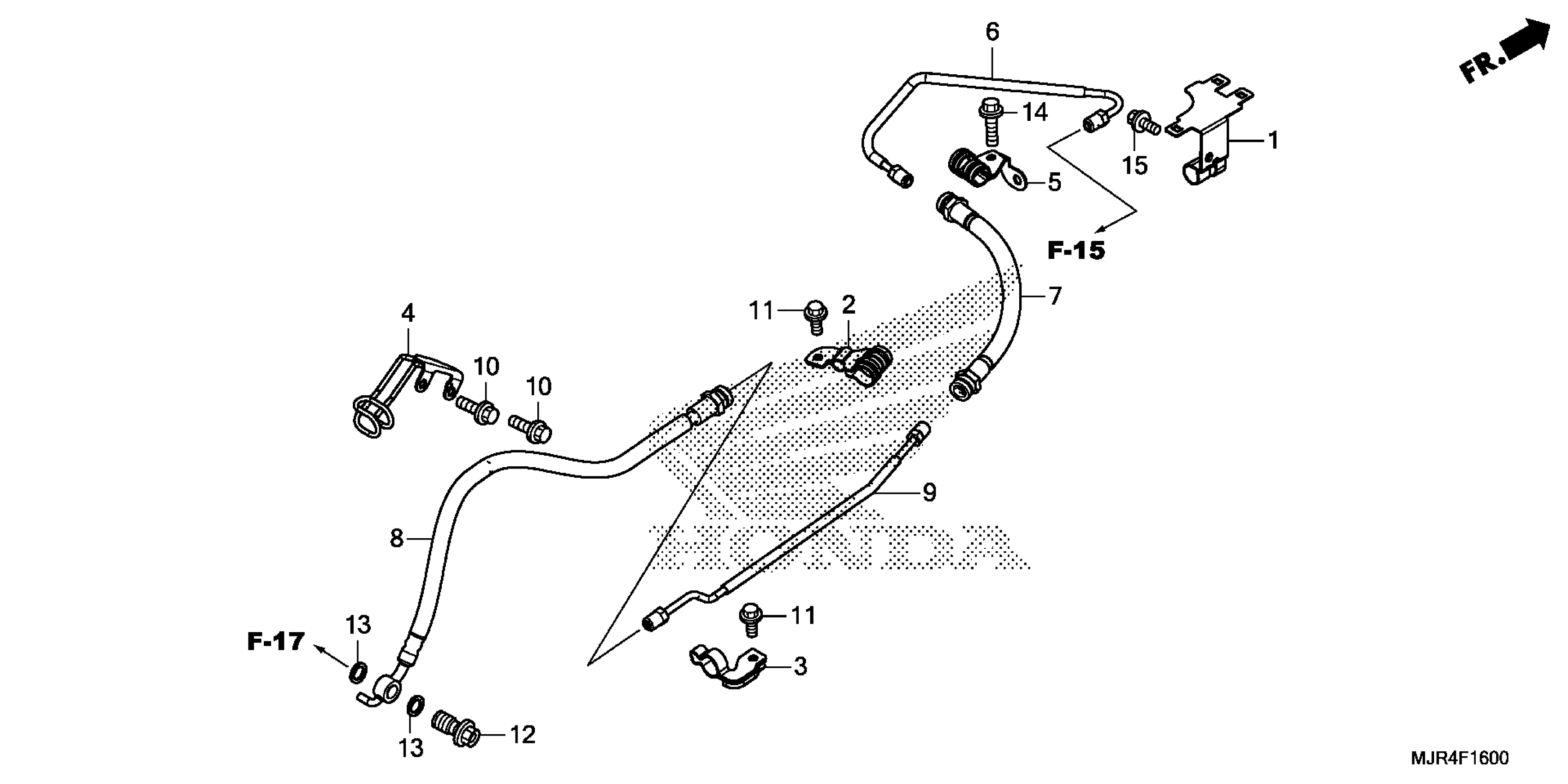

Honda GL1800CAC (14) MOTORCYCLE, JPN, VIN# JH2SC680-EK000001 TO JH2SC680-EK099999 REAR BRAKE HOSE (STD) Diagram

CLAMP A, RR. BRAKE HOSE

43156-MJR-670

$12.26

CLAMP B, RR. BRAKE HOSE

43157-MJR-670

$9.80

CLAMP C, RR. BRAKE HOSE

43158-MJR-670

$10.26

GUIDE, RR. BRAKE HOSE

43159-MJR-670

$19.64

CLAMP D, RR. BRAKE HOSE

43161-MJR-670

$12.26

PIPE A, RR. BRAKE

43311-MJR-670

$12.36

HOSE B, RR. BRAKE MAIN

43314-MJR-671

$42.62

HOSE C, RR. BRAKE

43316-MJR-671

$48.68

SUB-PIPE E, BRAKE

43330-MCA-000

$6.83

BOLT, FLANGE (6X16)

90104-MJR-670

$2.14

BOLT, FLANGE (6X12)

90123-MCH-A00

$1.30

BOLT, OIL (10X22) (SAGA)

90145-MS9-612

$6.82

WASHER, OIL BOLT

90545-300-000

$3.72

BOLT, FLANGE (6X20)

95701-06020-08

$0.35

BOLT, FLANGE (6X12)

96001-06012-00

$1.64
