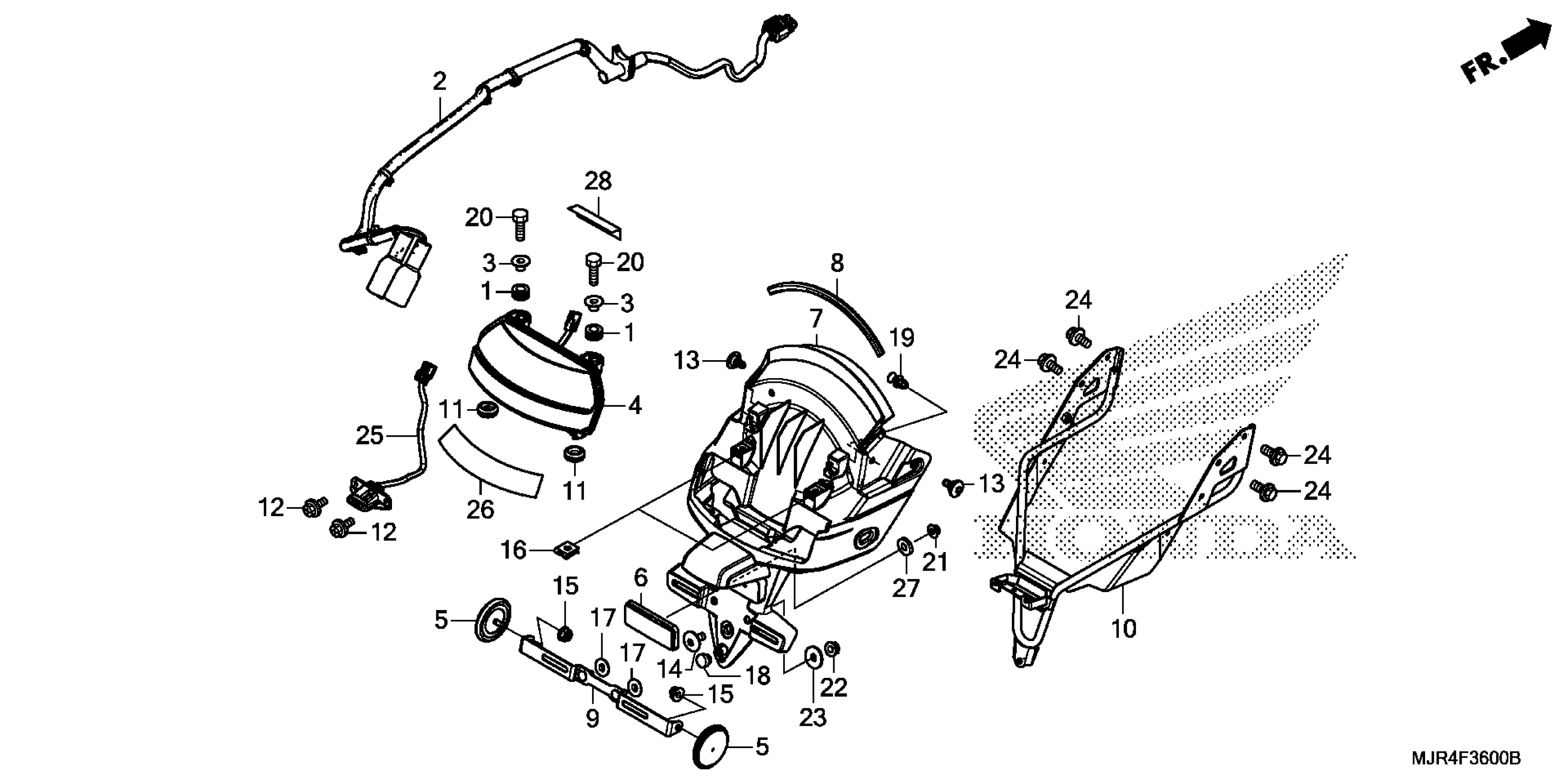

Honda GL1800C2AC (15) MOTORCYCLE, JPN, VIN# JH2SC68J-FK100001 TAILLIGHT Diagram

RUBBER, MOUNTING

19639-GBC-000

$1.49

SUB-HARNESS, RR.

32120-MJR-670

$62.54

COLLAR C, RR. TURN SIGNAL

33614-MEC-650

$2.56

TAILLIGHT ASSY.

33701-MJR-671

$298.84

REFLECTOR, RR. REFLEX (RED)

33741-HB9-641

$13.66

REFLECTOR, REFLEX (STANLEY)

33741-MS6-921

$13.93

FENDER A, RR.

80101-MJR-670

$31.70

MOUL, RR. FENDER COVER

80104-MFE-670

$8.49

STAY, REFLECTOR

80104-MJR-670

$23.49

STAY A, RR. FENDER

80150-MJR-670

$257.49

GROMMET

83551-MB9-000

$2.44

BOLT (4X10)

90008-ZM7-000

$1.83

SCREW, SPECIAL (5X11)

90114-MGE-000

$2.59

SCREW, PAN (6X13)

90124-MY6-670

$2.61

NUT, U (6MM)

90301-MG3-000

$6.91

NUT, SPRING (5MM)

90320-GC3-000

$2.20

WASHER, RR. COVER

90506-425-000

$2.89

RUBBER, SEPARATOR MOUNTING

90572-KV3-300

$4.05

CLIP, PANEL FIXING *NH1* (BLACK)

91549-MW0-790ZA

$4.24

BOLT, FLANGE (5X16)

90005-896-000

$2.08

NUT, FLANGE (5MM) (FUSE RASHI)

90301-MG8-000

$4.66

NUT, FLANGE (6MM)

94050-06000

$1.49

WASHER, PLAIN (6MM)

94103-06000

$1.49

BOLT, FLANGE (6X12)

95701-06012-08

$1.67

LIGHT ASSY., LICENSE

33720-MJR-671

$94.20

FILM A, PROTECTOR

17554-MFJ-D10

$11.07

WASHER, PLAIN (5MM)

94103-05800

$1.49

FILM, PROTECTOR

50183-MJR-670

$4.31
