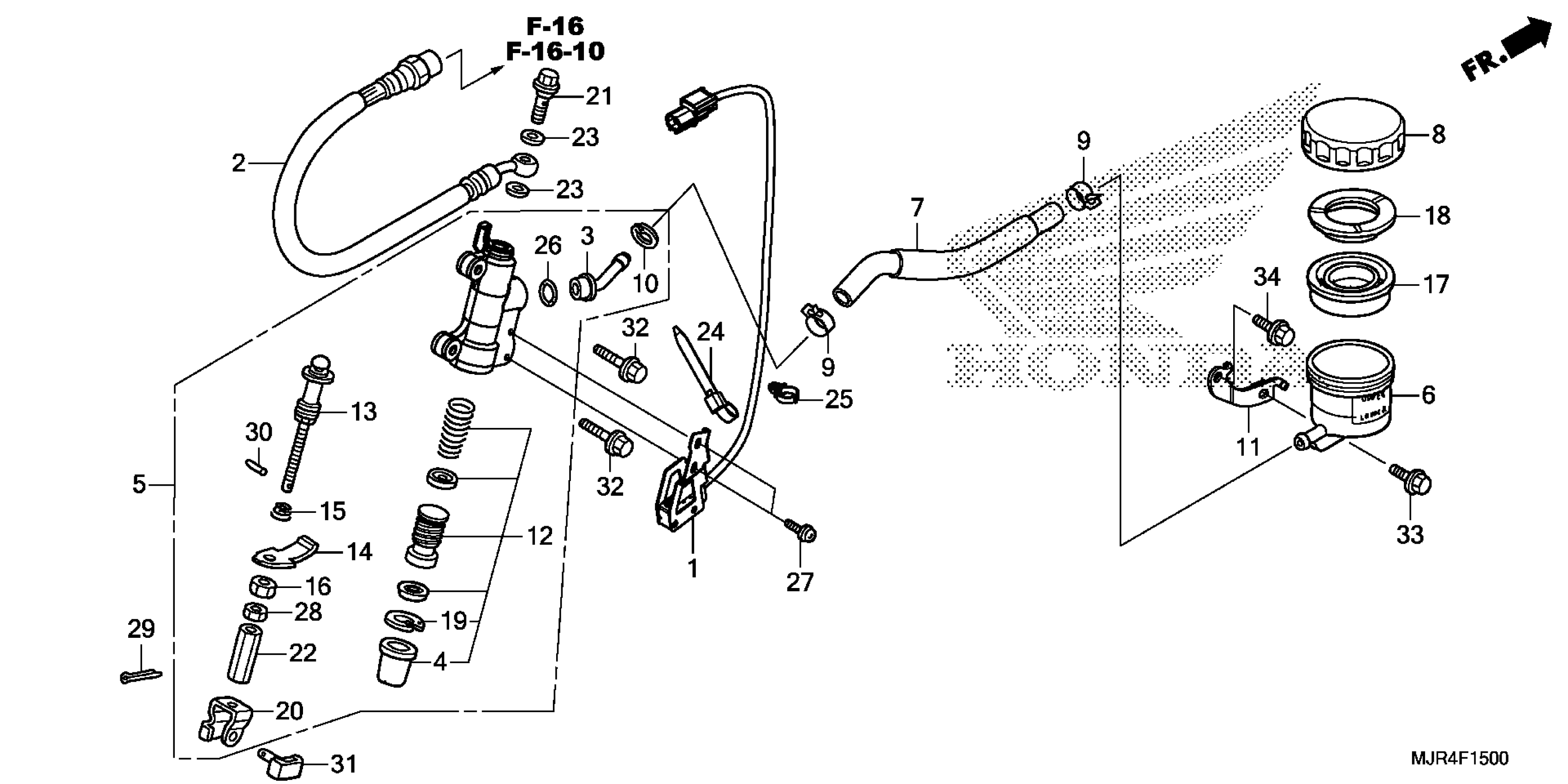

Honda GL1800C2AC (15) MOTORCYCLE, JPN, VIN# JH2SC68J-FK100001 REAR BRAKE MASTER CYLINDER Diagram

SWITCH SET, RR. STOP

35300-MJR-670

$34.26

MAIN HOSE A, RR. BRAKE

43310-MJR-671

$38.65

CONNECTOR

43503-KCY-671

$10.13

BOOT

43504-MB2-006

$9.01

MASTER CYLINDER SUB-ASSY., RR. BRAKE (NISSIN) This part replaces 43510-MJR-305.

43510-MJR-671

$186.93

MASTER CYLINDER SUB-ASSY., RR. BRAKE (NISSIN)

43510-MJR-671

$186.93

CUP, MASTER CYLINDER OIL

43511-MCA-006

$4.29

HOSE, RR. MASTER CYLINDER

43512-MCA-006

$5.35

CAP, OIL CUP

43513-MY1-006

$26.39

CLAMP, MASTER CYLINDER OIL HOSE

43514-KS6-701

$11.77

CIRCLIP, RR. MASTER CYLINDER (FOR FR.)

43517-KS6-701

$3.55

STAY, MASTER CYLINDER RESERVE TANK

43518-MJR-670

$8.75

PISTON SET, MASTER CYLINDER (NISSIN)

43520-MG9-315

$54.74

ROD, PUSH

43530-MJR-671

$35.93

PLATE, SWITCH (NISSIN)

43537-MN5-006

$4.00

SPRING, SWITCH

43538-MCA-006

$0.97

NUT, SWITCH PLATE (NISSIN)

43539-MN5-006

$3.75

DIAPHRAGM

45520-300-000

$8.13

PLATE, DIAPHRAGM

45521-MJ6-006

$3.77

CIRCLIP

46182-MEL-D21

$1.77

JOINT, BRAKE ROD

46504-MT4-006

$9.03

BOLT, OIL (10X22) (SAGA)

90145-MS9-612

$6.82

NUT, SPECIAL (8MM)

90315-MCA-006

$0.33

WASHER, OIL BOLT

90545-300-000

$3.72

BAND, WIRE (Honda Code 2687788)

90650-KV6-003

$2.90

CLIP, HARNESS (NIKOFU)

90659-734-K51

$1.94

O-RING (14.8X2.4)

91212-422-006

Unavailable

SCREW-WASHER (4X12)

93893-04012-07

$1.22

SCREW-WASHER (4X12) This part replaces 93893-04012-17.

93893-04012-07

$1.22

NUT, HEX. (8MM)

94002-08000-0S

$1.19

NUT, HEX. (8MM) This part replaces 94002-08080-0S.

94002-08000-0S

$1.19

PIN, COTTER (2.0X15)

94201-20150

$0.94

PIN, SPRING (2X10)

94305-20102

$0.80

PIN D, JOINT

95015-54000

$3.95

BOLT, FLANGE (6X22)

95701-06022-08

$1.64

BOLT, FLANGE (6X14)

96001-06014-00

$1.64

BOLT, FLANGE (6X14)

96001-06014-07

$1.09
