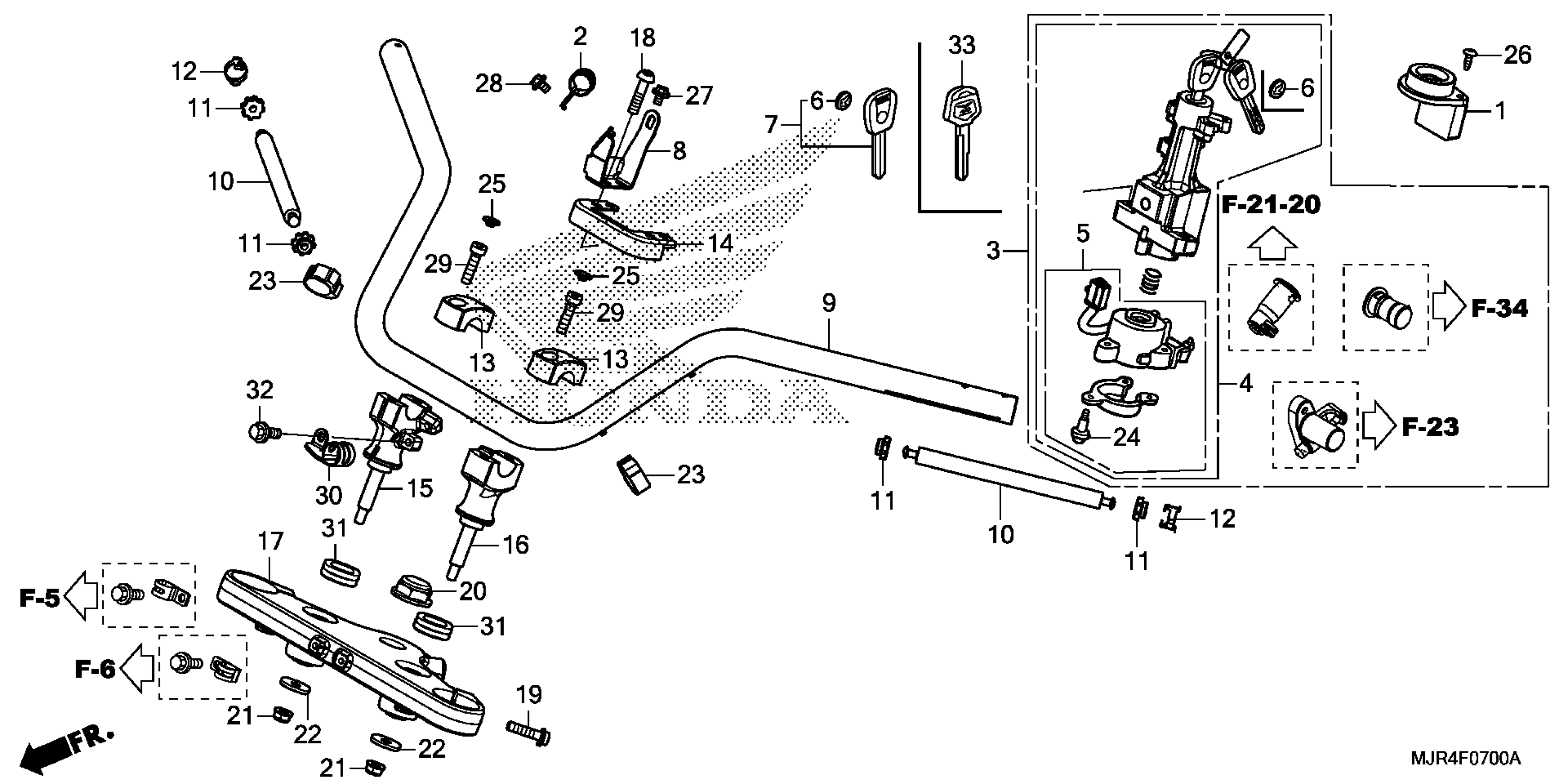

Honda GL1800C2AC (15) MOTORCYCLE, JPN, VIN# JH2SC68J-FK100001 HANDLEBAR@TOP BRIDGE Diagram

#

Description
Price

1

COVER, COMBINATION SWITCH TOP

30430-MCA-671

$78.65

1

COVER, COMBINATION SWITCH TOP This part replaces 30430-MCA-672.

30430-MCA-671

$78.65

2

STAY, HARNESS CLAMP

32104-MJR-670

$4.65

3

LOCK SET

35010-MJR-A00

$315.29

4

SWITCH ASSY., COMBINATION & LOCK

35100-MJR-A01

$240.45

5

BASE, CONTACT

35101-MCA-S41

$49.65

8

STAY, COMBINATION SWITCH WIRE

35151-MJR-670

$15.52

9

HANDLEBAR *NHA86M* This part replaces 53100-MJR-305ZA.

53100-MJR-670ZA

$213.80

10

WEIGHT, HANDLE

53106-KG1-920

$12.10

11

RUBBER, HANDLE WEIGHT

53107-MR1-010

$5.37

12

RING, HANDLE WEIGHT SNAP

53108-KW9-920

$6.56

13

HOLDER, HANDLE (UPPER)

53131-MJR-670

$16.32

14

GUARD B, COMBINATION SWITCH

53132-MCA-640

$5.60

15

HOLDER, R. HANDLE (LOWER)

53231-MJR-670

$41.22

16

HOLDER, L. HANDLE (LOWER)

53232-MJR-670

$41.22

17

BRIDGE ASSY., FORK TOP

53300-MJR-670

$284.64

18

BOLT, ONE-WAY (8X34)

90108-MCA-000

$3.41

19

BOLT, FLANGE SOCKET (8X32)

90160-MGJ-D00

$4.04

20

NUT, STEERING STEM FLANGE

90304-MJR-670

$11.19

21

NUT, FLANGE (8MM) This part replaces 90309-ML4-901.

90309-MR1-770

$2.90

21

NUT, FLANGE (8MM)

90309-MR1-770

$2.90

22

WASHER, HANDLE HOLDER (LOWER)

90535-MR1-770

$3.55

23

CLIP, CABLE (20MM)

90690-GHB-661

$1.99

24

SCREW, TAPPING (3X16)

91059-MG9-681

$2.17

25

CAP, SOCKET BOLT

91456-371-770

$3.22

26

SCREW, TAPPING (5X16)

93903-25320

$0.83

27

BOLT, FLANGE (6X10)

96001-06010-00

$1.48

28

BOLT, FLANGE (6X10)

96001-06010-07

$1.48

29

BOLT, SOCKET (8X32) (NOT AVAILABLE)

96600-08032-17

Unavailable

30

STAY, R. HARNESS CLAMP

32105-MJR-670

$4.75

31

CAP, HANDLE (LOWER)

53125-KW9-700

$4.94

32

BOLT, FLANGE (6X16)

96001-06016-07

$0.96

33

KEY, BLANK | (Optional).

35121-MJK-A81

$47.93
