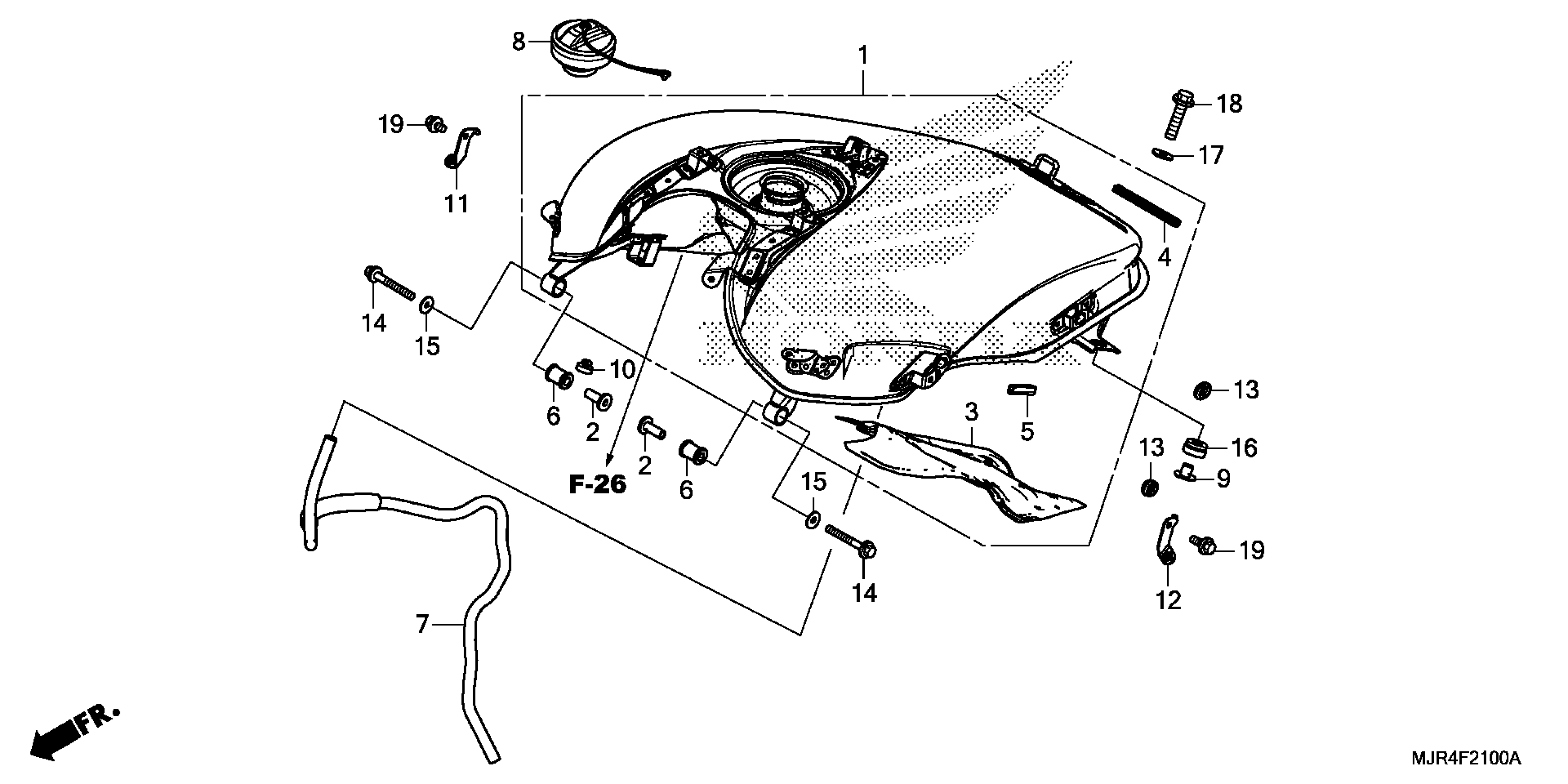

Honda GL1800C2AC (15) MOTORCYCLE, JPN, VIN# JH2SC68J-FK100001 FUEL TANK Diagram

Description

Price

TANK ASSY., FUEL R342C (CANDY PROMINENCE RED)

17500-MJR-670ZE

$1,725.69

COLLAR

17501-MJR-670

$3.15

MAT, TANK PROTECTOR

17505-MJR-670

$55.82

TRIM, FUEL TANK (SOURCE: VINTAGE PARTS INC.)

17516-MK7-000

$9.94

TRIM A, FUEL TANK

17521-KSV-J00

$3.43

RUBBER, RR. TANK MOUNTING (FRONT SIDE)

17534-MFJ-D00

$4.75

TUBE, FUEL DRAIN

17590-MJR-670

$33.72

CAP, FUEL FILLER

17670-MJN-A01

$66.57

COLLAR, METER STAY MOUNTING (SOURCE: VINTAGE PARTS INC.)

37107-KN6-960

Unavailable

RUBBER, LINK STOPPER

50352-GS6-000

$4.53

STAY, R RADIATOR SIDE

64288-MJR-670

$6.23

STAY, L RADIATOR SIDE

64298-MJR-670

$6.23

GROMMET, AIR CLEANER HOUSING

83551-240-300

$3.24

BOLT, FLANGE (6X45) (SH)

90101-MJR-670

$3.02

WASHER, PLAIN (6MM)

90501-MJR-670

$3.08

RUBBER, TANK CUSHION

90851-898-000

$4.48

WASHER, PLAIN (8MM)

94103-08800

$1.49

BOLT, FLANGE (8X35)

95701-08035-08
