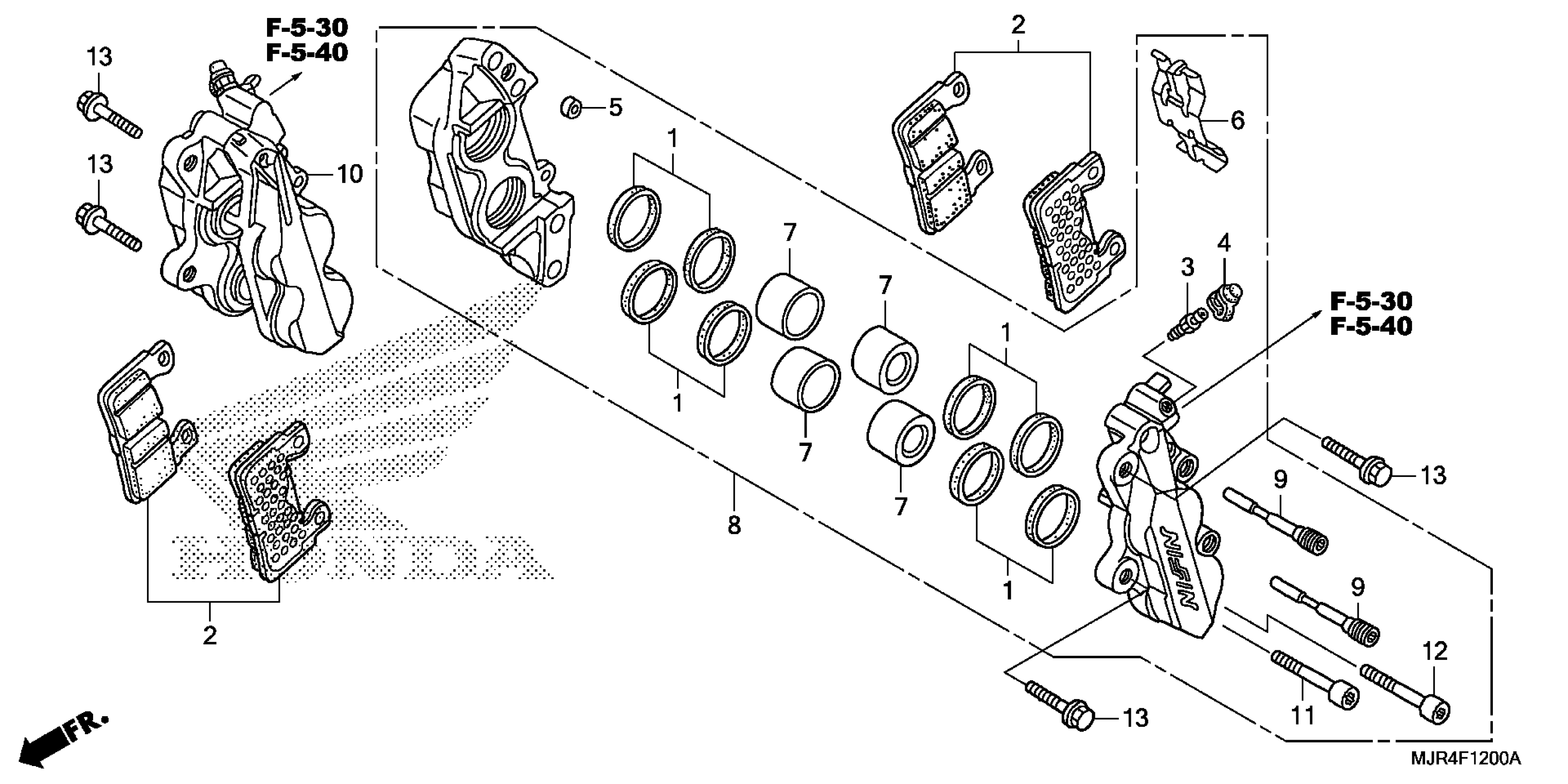

Honda GL1800C2AC (15) MOTORCYCLE, JPN, VIN# JH2SC68J-FK100001 FRONT BRAKE CALIPER Diagram

#

Description

Price

1

SEAL SET, PISTON

06451-MCZ-006

$5.42

2

PAD SET, FR. This part replaces 06455-MCF-016.

06455-MCF-026

$43.51

3

SCREW, BLEEDER (NISSIN)

43352-568-003

$7.39

4

CAP, BLEEDER

43353-461-771

$4.70

5

SEAL, JOINT (NISSIN)

45103-MR7-006

$3.48

6

SPRING, PAD

45106-MAS-E01

$8.69

7

PISTON A This part replaces 45107-MCZ-016.

45107-MCZ-026

$41.99

8

CALIPER SUB-ASSY. This part replaces 45150-MEJ-642.

45150-MEJ-643

Unavailable

9

PIN, HANGER

45215-MAS-E01

$9.30

10

CALIPER SUB-ASSY. This part replaces 45250-MEJ-642.

45250-MEJ-643

$438.94

11

BOLT, TORX (8X35)

90107-MAS-E01

$6.96

12

BOLT, TORX (8X40)

90108-MAS-E01

$6.70

13

BOLT, FLANGE (8X32) (SAGA)

90131-KBV-003

$4.43
