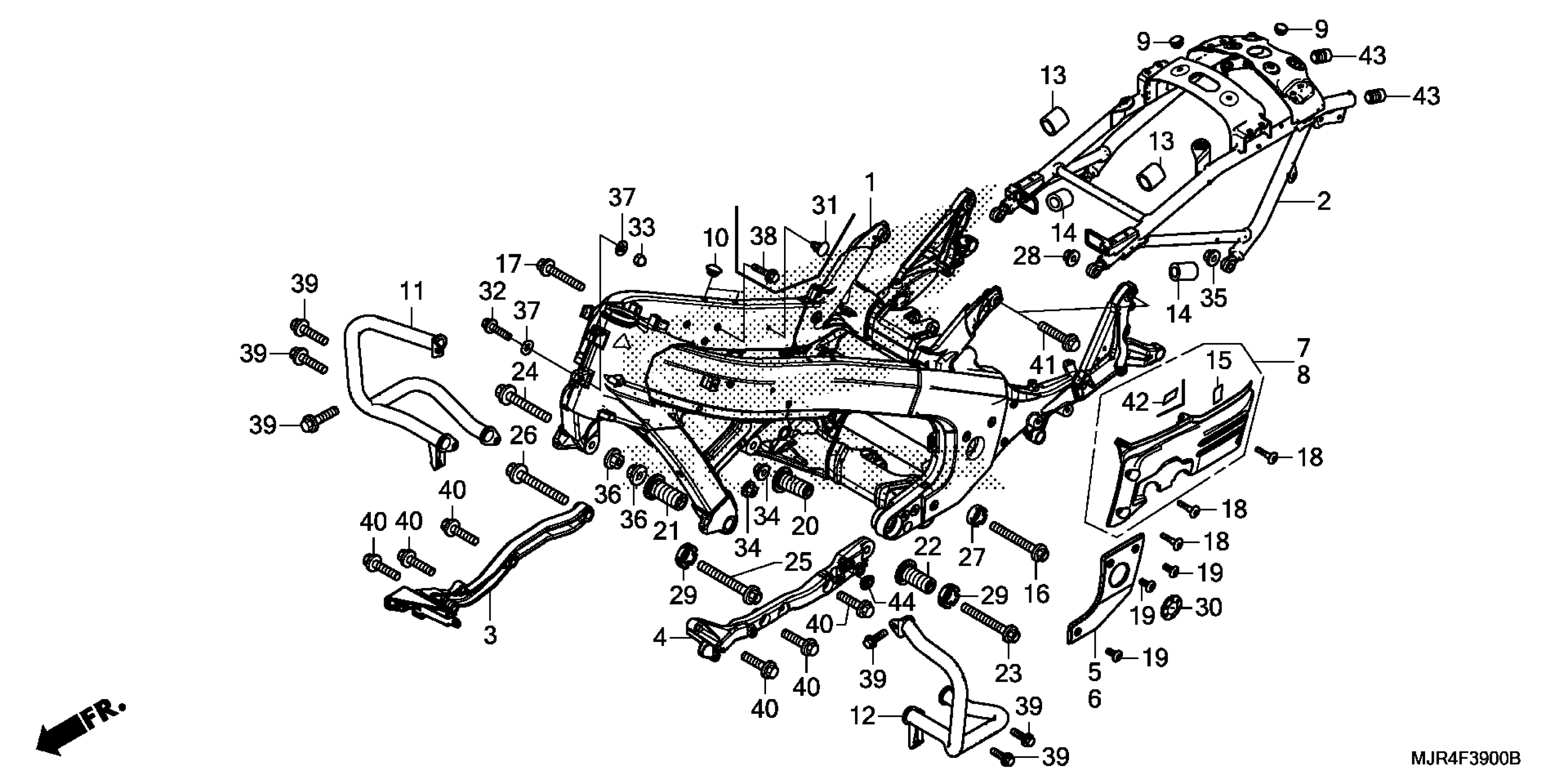

Honda GL1800C2AC (15) MOTORCYCLE, JPN, VIN# JH2SC68J-FK100001 FRAME Diagram

#

Description
Price

1

FRAME *NHA86M* (MAT BALLISTIC BLACK)

50100-MJR-670ZA

$5,314.30

2

RAIL, SEAT

50240-MJR-670

$711.78

3

BEAM, R. ENGINE SUPPORT

50351-MCA-S40

$147.93

4

BEAM, L. ENGINE SUPPORT

50352-MCA-S40

$159.13

5

COVER, R. PIVOT PLATE *NH1* (BLACK)

50410-MCA-000ZB

$6.83

6

COVER, L. PIVOT PLATE *NH1* (BLACK)

50415-MCA-000ZB

$9.49

7

COVER, R. PILLION STEP HOLDER

50710-MJR-670

$86.81

8

COVER, L. PILLION STEP HOLDER

50720-MJR-670

$86.81

9

PLUG, HANDLE COVER (LOWER)

53125-174-670

$1.77

10

PLUG, FR. FENDER

61105-KA8-000

$1.32

11

GUARD, R. ENGINE

62501-MJG-670

$247.54

12

GUARD, L. ENGINE

62601-MJG-670

$247.54

13

RUBBER, RR. FENDER (UPPER)

80102-MJR-670

$2.68

14

RUBBER, RR. FENDER (LOWER)

80103-MJR-670

$2.68

15

RUBBER, PROTECTOR (L. SIDE ONLY)

81214-MT3-300

$2.29

16

BOLT, FLANGE (10X85)

90101-KK6-000

$6.62

17

BOLT, FLANGE (10X62)

90101-MBB-000

$3.75

18

SCREW, SPECIAL (5X12)

90106-MBY-000

$2.43

19

SCREW, PAN (5X13)

90112-MBS-000

$2.20

20

BOLT, ADJUSTING (M20-43.5)

90116-MCA-000

$12.80

21

BOLT, ADJUSTING (M22-47)

90117-MCA-000

$15.39

22

BOLT, ADJUSTING (M22-40)

90126-MCA-000

$11.10

23

BOLT, FLANGE (12X92)

90127-MCA-000

$4.52

24

BOLT, FLANGE (12X72)

90128-MCA-000

$10.90

25

BOLT, FLANGE (12X92)

90129-MCA-000

$11.03

26

BOLT, FLANGE (12X84)

90166-SZ3-000

$11.91

27

NUT, LOCK (20MM)

90201-MW0-000

$9.75

28

NUT, FLANGE CAP (10MM)

90202-MR1-000

$3.01

29

NUT, LOCK This part replaces 90310-MCA-000.

90310-MCA-010

$8.99

30

CAP, PIVOT

90312-MCA-000

$7.21

32

BOLT, CAP (8X30)

92501-08030-0G

$1.75

33

NUT, CAP (8MM)

94021-08070-0S

$1.48

34

NUT, FLANGE (10MM)

94050-10000

$1.41

35

NUT, FLANGE (10MM)

94050-10080

$2.93

36

NUT, FLANGE (12MM)

94050-12000

$0.94

37

WASHER, PLAIN (8MM)

94101-08700

$0.90

39

BOLT, FLANGE (8X25)

96300-08025-00

$1.48

40

BOLT, FLANGE (10X40)

96300-10040-00

$2.80

41

BOLT, FLANGE (10X50)

96300-10050-00

$1.46

42

RUBBER, PROTECTOR (L. SIDE ONLY)

81214-MT3-300

$2.29

43

RUBBER, PIPE END

50270-MJR-670

$4.83

44

GROMMET, AIR CLEANER HOUSING

83551-GE2-000

Unavailable
