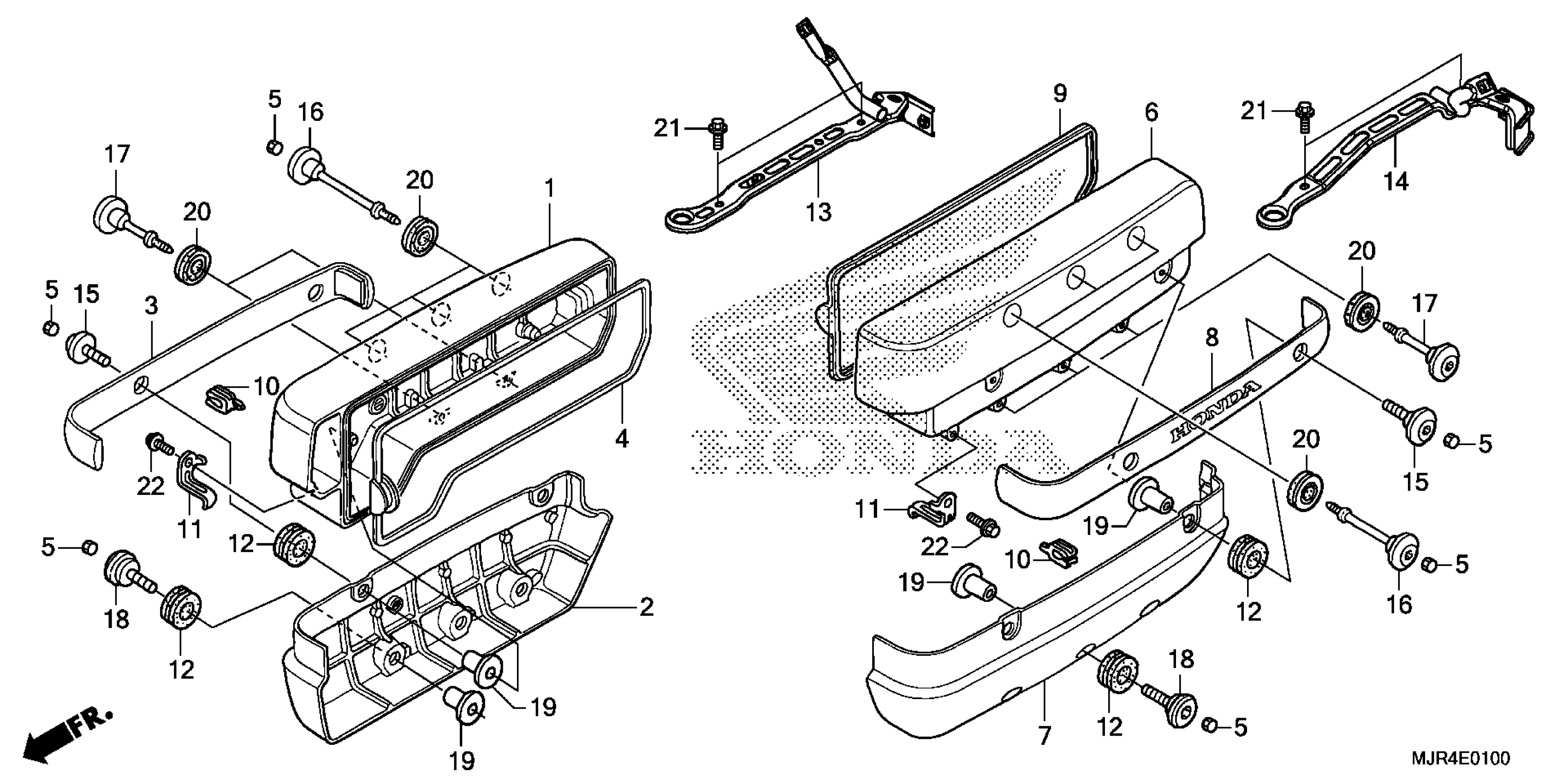

Honda GL1800C2AC (15) MOTORCYCLE, JPN, VIN# JH2SC68J-FK100001 CYLINDER HEAD COVER Diagram

#

Description
Price

1

COVER, R. CYLINDER HEAD

12311-MCA-000

$372.22

2

COVER, R. CYLINDER HEAD SIDE

12321-MCA-000

$190.30

3

EMBLEM, R. CYLINDER HEAD COVER

12322-MCA-A20

$64.77

4

GASKET, R. CYLINDER HEAD COVER

12391-MCA-000

$26.27

5

PLUG, HEX. (6MM)

12392-MJ0-000

$4.20

6

COVER, L. CYLINDER HEAD

12411-MCA-000

$343.43

7

COVER, L. CYLINDER HEAD SIDE

12421-MCA-000

$190.28

8

EMBLEM, L. CYLINDER HEAD COVER

12422-MCA-A20

$64.77

9

GASKET, L. CYLINDER HEAD COVER

12491-MCA-000

$26.27

10

CLAMP, IGNITION WIRE

32114-MCA-000

$2.95

11

GUIDE, IGNITION WIRE

32115-MCA-000

$4.19

12

RUBBER, PIVOT COVER (LOWER)

64386-MS2-000

$4.94

13

STAY, R. AIR GUIDE

83516-MJR-670

$38.12

14

STAY, L. AIR GUIDE

83566-MJR-670

$38.12

15

BOLT, SOCKET SPECIAL (6X19)

90016-MCA-780

$2.80

16

BOLT, HEAD COVER

90017-MCA-000

$4.29

17

BOLT, HEAD COVER

90018-MCA-000

$4.54

18

BOLT, HEAD COVER

90019-MCA-780

$3.77

19

COLLAR, COWL SETTING (LOWER)

90122-463-770

$4.09

20

RUBBER, MOUNTING (Honda Code 3699139)

90543-MV9-670

$4.60

21

BOLT, FLANGE (6X12)

95701-06012-08

$1.48

21

BOLT, FLANGE (6X12) This part replaces 95801-06012-08.

95701-06012-08

$1.48

22

BOLT, FLANGE (6X10)

96001-06010-00

$1.48
