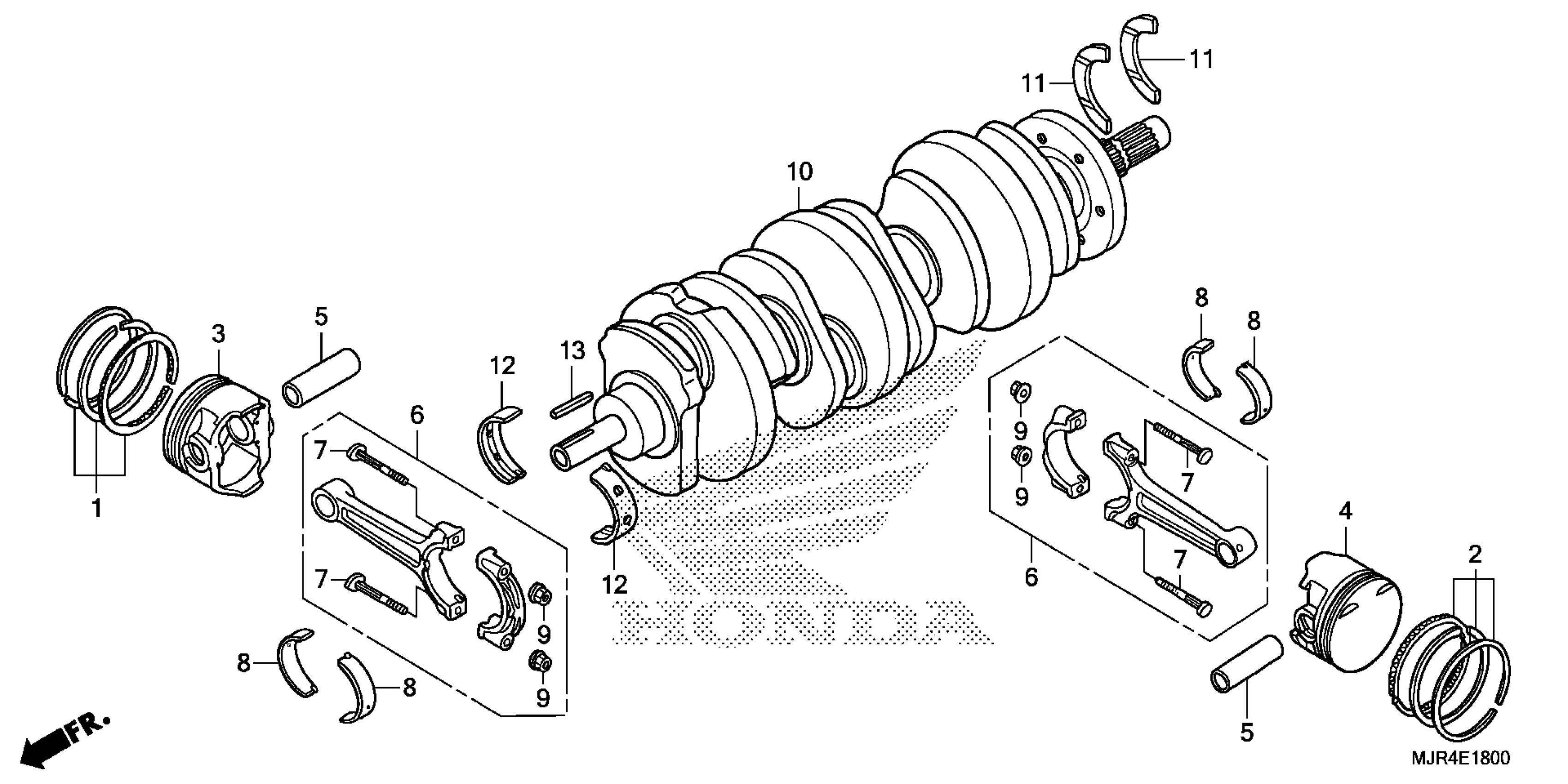

Honda GL1800C2AC (15) MOTORCYCLE, JPN, VIN# JH2SC68J-FK100001 CRANKSHAFT@PISTON Diagram

#

Description
Price

1

RING SET, PISTON (STD)

13011-MCA-305

$73.69

1

RING SET, PISTON (0.25) | (Optional).

13021-MCA-305

$73.70

1

RING SET, PISTON (0.50) | (Optional).

13031-MCA-305

$73.70

1

RING SET, PISTON (0.75) | (Optional).

13041-MCA-305

$70.54

1

RING SET, PISTON (1.00) | (Optional).

13051-MCA-305

$70.57

2

RING SET, PISTON (STD)

13011-MCA-306

$73.69

2

RING SET, PISTON (0.25) | (Optional).

13021-MCA-306

$73.70

2

RING SET, PISTON (0.50) | (Optional).

13031-MCA-306

$73.70

2

RING SET, PISTON (0.75) | (Optional).

13041-MCA-306

$70.54

2

RING SET, PISTON (1.00) | (Optional).

13051-MCA-306

$70.57

3

PISTON, R. (STD)

13101-MCA-000

$105.10

3

PISTON, R. (0.25) | (Optional).

13103-MCA-306

$104.39

3

PISTON, R. (0.50) | (Optional).

13104-MCA-306

$104.39

3

PISTON, R. (0.75) | (Optional).

13105-MCA-306

$99.89

3

PISTON, R. (1.00) | (Optional).

13106-MCA-306

$99.85

4

PISTON, L. (STD)

13102-MCA-000

$105.10

4

PISTON, L. (0.25) | (Optional).

13107-MCA-306

$104.39

4

PISTON, L. (0.50) | (Optional).

13108-MCA-306

$104.39

4

PISTON, L. (0.75) | (Optional).

13109-MCA-306

$99.89

4

PISTON, L. (1.00) | (Optional).

13110-MCA-306

$99.85

5

PIN, PISTON

13111-MZ0-000

$15.77

6

ROD ASSY., CONNECTING

13201-MCA-000

$259.31

7

BOLT, CONNECTING ROD

13213-MS2-610

$9.92

8

BEARING A, CONNECTING ROD (BLUE) (DAIDO)

13214-MN5-003

$14.51

8

BEARING B, CONNECTING ROD (BLACK) (DAIDO)

13215-MN5-003

$14.70

8

BEARING C, CONNECTING ROD (BROWN) (DAIDO)

13216-MN5-003

$15.39

8

BEARING D, CONNECTING ROD (GREEN) (DAIDO)

13217-MN5-003

$15.39

8

BEARING E, CONNECTING ROD (YELLOW) (DAIDO)

13218-MN5-003

$14.70

9

NUT, CONNECTING ROD

13215-ML7-000

$3.89

10

CRANKSHAFT

13310-MCA-780

$1,923.07

11

BEARING, THRUST

13312-MN5-003

$18.21

12

BEARING A, MAIN (BLUE)

13314-MCA-003

$14.26

12

BEARING B, MAIN (BLACK)

13315-MCA-003

$15.13

12

BEARING C, MAIN (BROWN)

13316-MCA-003

$15.13

12

BEARING D, MAIN (GREEN)

13317-MCA-003

$15.13

12

BEARING E, MAIN (YELLOW)

13318-MCA-003

$15.13

13

KEY (2X2X30)

90701-MCA-010

$5.23
