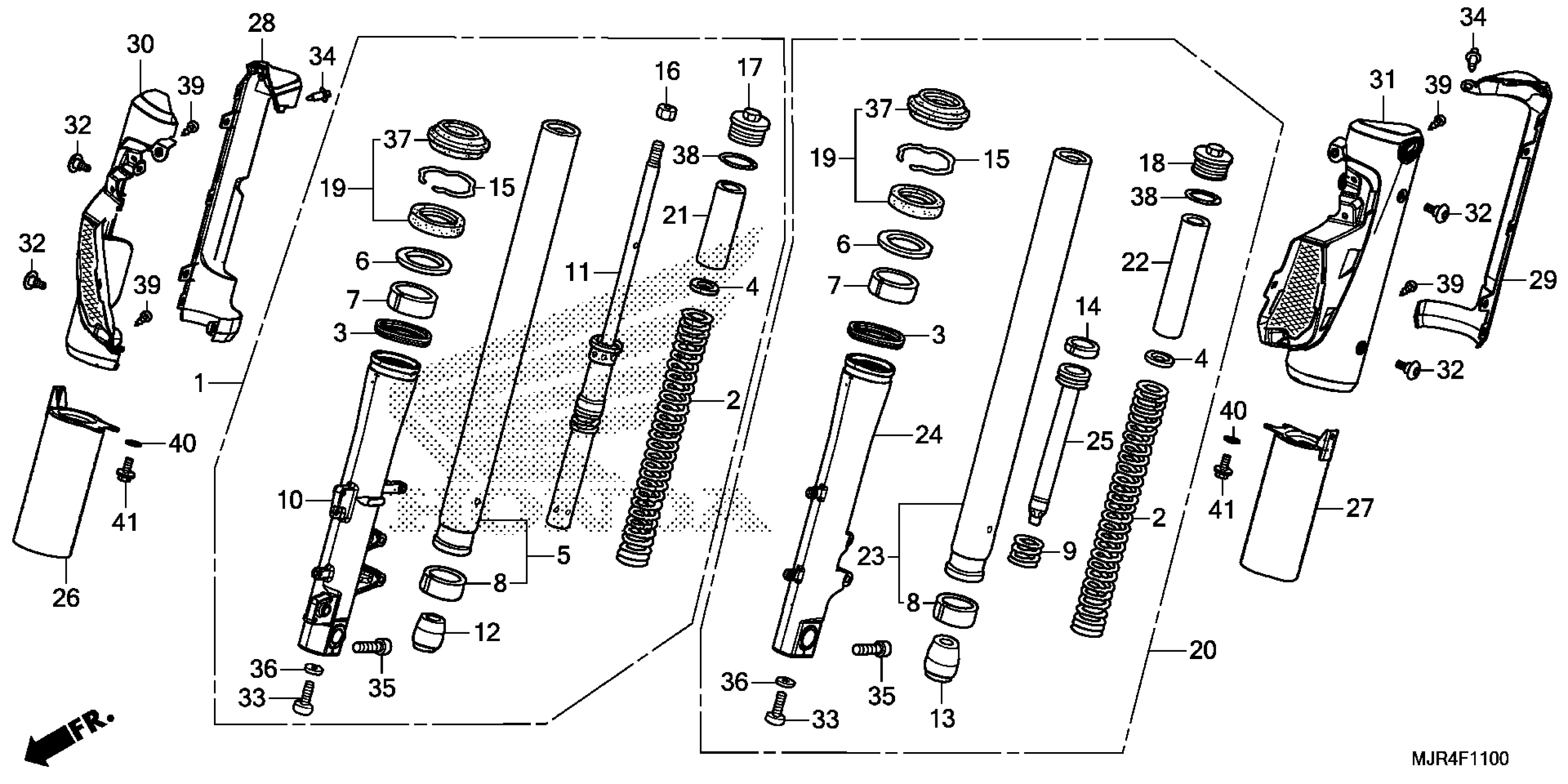

Honda GL1800C2AC (14) MOTORCYCLE, JPN, VIN# JH2SC68J-EK000001 TO JH2SC68J-EK099999 FRONT FORK Diagram

#

Description
Price

1

FORK ASSY., R. FR. (COO) (SHOWA)

51400-MJR-305

Unavailable

2

SPRING, FR. FORK

51401-MJR-671

$49.68

3

GUIDE, CASE

51402-MJR-671

$4.12

4

SEAT, SPRING

51405-KA4-711

$5.80

5

PIPE, R. FR. FORK

51410-MJR-671

$369.38

6

RING, BACK-UP

51412-KZ3-003

$8.46

7

BUSH, GUIDE

51414-MFR-671

$19.32

8

BUSH, SLIDER

51415-MFR-671

$10.35

9

SPRING, FR. REBOUND (34.3N/MM, 3.5KGF/MM) (SHOWA)

51416-KA4-831

$12.88

10

CASE, R. FR. (LOWER)

51420-MJR-671

$370.09

11

DAMPER, FR.

51430-MJR-671

$368.67

12

PIECE, OIL LOCK

51432-MCA-003

$8.71

13

PIECE, OIL LOCK

51432-MV4-003

$13.54

14

RING, PISTON

51437-MCA-003

$7.08

15

RING, OIL SEAL STOPPER

51447-KZ3-003

$4.76

16

NUT, HEX. (10MM)

51451-MAJ-G41

$2.64

17

BOLT, FR. FORK

51454-MBR-003

$29.05

18

BOLT, FR. FORK

51454-MCA-003

$15.94

19

SEAL SET, FR. FORK

51490-MFR-671

$26.94

20

FORK ASSY., L. FR. (COO) (SHOWA)

51500-MJR-305

$914.86

21

COLLAR B, SPRING

51502-MCA-003

$4.45

22

COLLAR B, SPRING

51502-MJR-671

$65.06

23

PIPE, L. FR. FORK

51510-MJR-671

$369.38

24

CASE, L. FR. (LOWER)

51520-MJR-671

$370.09

25

PIPE, SEAT

51540-MJR-671

$51.14

26

COVER, R. FR. FORK *NHA86M* (MAT BALLISTIC BLACK) (LOWER)

51610-MJR-670ZA

$75.36

27

COVER, L. FR. FORK *NHA86M* (MAT BALLISTIC BLACK) (LOWER)

51660-MJR-670ZA

$78.77

28

COVER, R. FR. FORK *NHA86M* (RR) (MAT BALLISTIC BLACK)

64130-MJR-670ZA

$32.72

29

COVER, L. FR. FORK *NHA86M* (RR) (MAT BALLISTIC BLACK)

64140-MJR-670ZA

$32.72

30

COVER, R. FR. FORK *NHA86M* (MAT BALLISTIC BLACK)

64250-MJR-670ZA

$109.35

31

COVER, L. FR. FORK *NHA86M* (MAT BALLISTIC BLACK)

64260-MJR-670ZA

$109.35

32

SCREW, SPECIAL (5X15) (SUS)

90112-MGH-640

$4.83

33

BOLT, SOCKET (8X27) BOLT, SOCKET (8MM) (SHOWA)

90116-383-721

$4.77

34

RIVET, PUSH

90116-MCS-G00

$1.26

35

BOLT, SOCKET (8X32)

90122-MCH-A00

$1.99

36

WASHER, SPECIAL (8MM) (SHOWA)

90544-283-000

$2.61

37

DUST SEAL

91254-MCH-C11

$11.48

38

O-RING (37.2X2.4) (SHOWA)

91356-MW0-003

$2.67

39

SCREW, TAPPING (4X12)

93903-24320

$0.83

40

WASHER, PLAIN (6MM)

94101-06700

$0.86

41

BOLT, FLANGE (6X12)

95701-06012-07

$1.48
