Description

Price

1

PUMP ASSY., OIL

15100-MKC-A00

$237.85

3

JOINT, FEED LINE (IN)

15106-MKC-A00

$10.53

4

JOINT, FEED LINE (OUT)

15107-MKC-A00

$8.01

5

JOINT, LINE (DCT)(OUT)

15108-MKC-A00

$6.06

6

GASKET, OIL PUMP COVER B

15115-MKC-A01

$3.93

7

SPROCKET, OIL PUMP DRIVE (31T)

15131-MKC-A01

$57.26

8

SPROCKET, OIL PUMP DRIVEN (17T)

15134-MKC-A00

$38.21

9

CHAIN, OIL PUMP (DID25H-54L) (54L) (DAIDO)

15135-MCA-003

$19.54

10

STRAINER, OIL

15150-MKC-A00

$44.15

11

GASKET, OIL STRAINER

15154-MM5-000

$6.30

12

BOLT, SOCKET (6X12)

90003-HA0-003

$2.41

13

WASHER (6X2.3)

90488-MB0-000

$4.44

14

O-RING (14.8X2.4)

91303-MKC-A00

$3.19

15

O-RING (25X3) This part replaces 91305-MN1-670.

91305-384-750

Unavailable

15

O-RING (25X3)

91305-384-750

Unavailable

16

O-RING (9.8X2.4)

91307-PY3-000

$2.57

17

PIN A, DOWEL (8X10)

94301-08100

$2.76

18

BOLT, FLANGE (6X14) (Honda Code 2410884)

95701-06014-00

$0.93

19

BOLT, FLANGE (6X32) (Honda Code 2105856)

95701-06032-00

$1.88

20

SCREEN, OIL FILTER

15421-MKC-A00

$5.88

21

PLATE, OIL SCREEN SET

15422-MKC-A00

$3.01

22

BOLT, FLANGE (6X14)

95701-06014-08

$1.63

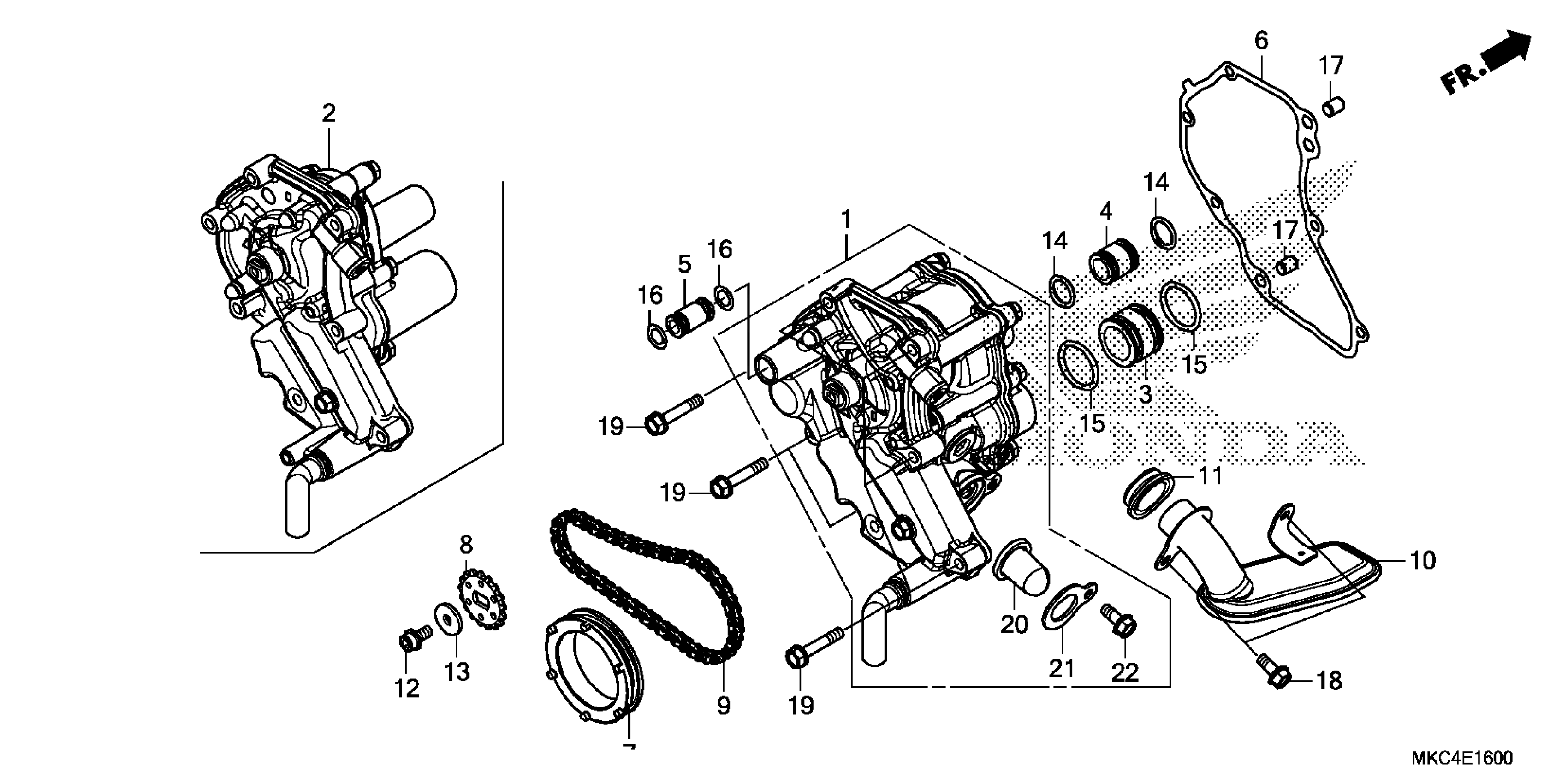

Honda GL1800BDAC (18) MOTORCYCLE, JPN, VIN# JH2SC794-JK000001 OIL PUMP Diagram
