Description

Price

1

WASHER, SPECIAL

13341-MKC-A00

$7.52

2

SPROCKET, TIMING (17T)

14311-MKC-A00

$45.33

3

SPROCKET, CAM (34T)

14321-MKC-A00

$65.31

4

CHAIN, CAM (116L) (BORG WARNER)

14401-MKC-A01

$71.16

5

ROTOR, CAM PULSE

14405-MKC-A00

$12.16

6

TENSIONER, CAM CHAIN

14510-MKC-A00

$83.90

7

PIN, TENSIONER PIVOT SETTING

14512-MKC-A00

$4.44

8

PLATE, TENSIONER PIVOT SETTING

14515-MKC-A00

$2.10

9

LIFTER ASSY., TENSIONER

14520-MKC-A01

$89.92

10

GASKET, TENSIONER LIFTER

14560-MKC-A01

$5.30

11

GUIDE, CAM CHAIN

14620-MKC-A00

$71.44

12

COLLAR, CAM CHAIN GUIDE

14622-MKC-A00

$3.57

13

PULSER ASSY., CAM (Honda Code 6959951)

36140-MCT-003

$168.15

14

BOLT, SPECIAL (10X25)

90013-430-000

$6.46

15

BOLT, SOCKET SPECIAL (6X7.5)

90014-MFL-000

$4.77

16

BOLT, FLANGE (6X28) (NSHF)

90017-GHB-680

$2.38

17

BOLT, FLANGE KNOCK (7X10.5) (Honda Code 1824291)

90082-HA0-000

$1.97

18

BOLT-WASHER, SPECIAL (6X22)

90085-KCR-000

$2.38

19

BOLT, FLANGE (6X10) (NSHF)

90101-KRN-A90

$2.23

20

COLLAR, CAM CHAIN TENSIONER

90401-MFL-000

$5.79

21

WASHER, PLAIN (10MM)

90402-KSE-670

$4.93

22

WASHER, SEALING (6MM)

90442-397-000

$2.28

23

WASHER, SHIFT DRUM STOPPER WASHER (6X2.3)

90487-MB0-000

$3.41

24

O-RING (16X2.1) (NOK) (Honda Code 3301793)

91309-PX4-003

$2.93

25

BOLT, FLANGE (6X14) (Honda Code 2410884)

95701-06014-00

$1.49

26

BOLT, FLANGE (6X18) (Honda Code 2410918)

95701-06018-07

$1.55

27

BOLT, FLANGE (6X28)

95801-06028-00

$1.73

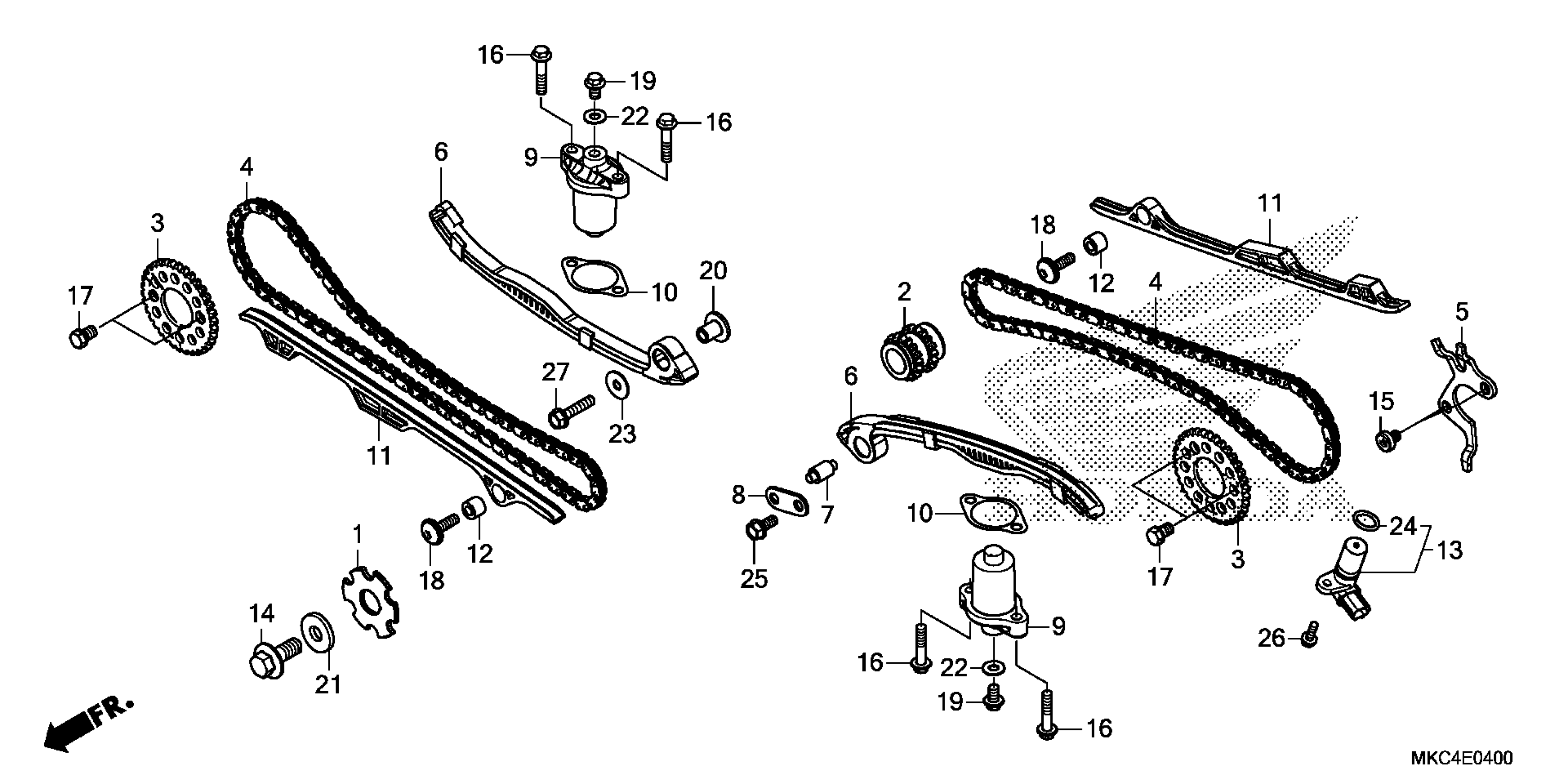

Honda GL1800BDAC (18) MOTORCYCLE, JPN, VIN# JH2SC794-JK000001 CAM CHAIN@TENSIONER Diagram
