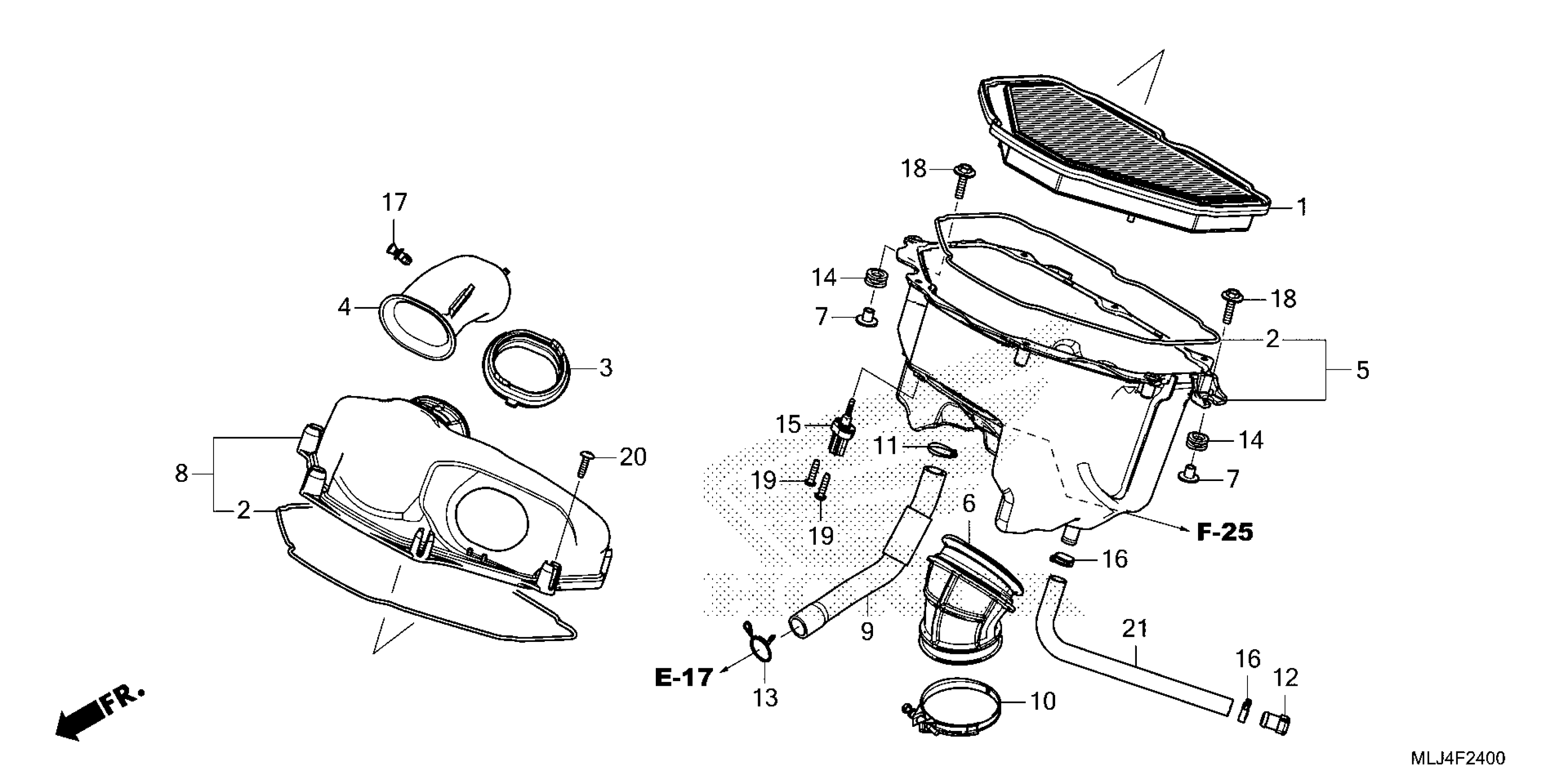

Honda GL1800BD4AC (23) MOTORCYCLE, JPN, VIN# JH2SC794-PK500001 AIR CLEANER Diagram

#

Description
Price

1

ELEMENT, AIR CLEANER

17210-MKC-A00

$48.67

2

SEAL, AIR CLEANER

17221-MKC-A00

$9.56

3

DUCT A, L.

17223-MKC-A00

$15.22

4

DUCT B, L.

17225-MKC-A00

$34.88

5

HOUSING, AIR CLEANER

17230-MKC-A00

$89.93

6

TUBE, AIR CLEANER CONNECTING

17232-MKC-A00

$24.32

7

COLLAR, AIR CLEANER MOUNTING

17239-MGS-D30

$3.74

8

COVER SUB-ASSY., AIR CLEANER

17240-MKC-A00

$70.01

9

TUBE, ENGINE BREATHER

17245-MKC-A00

$9.32

10

BAND, AIR CLEANER CONNECTING TUBE (66)

17255-MKC-A00

$12.90

11

CLIP B, TUBE CLIP, SUB-TANK HOSE

17366-MJ0-000

$2.07

12

PLUG, BREATHER TUBE

17370-382-870

$3.58

13

CLIP, AIR HOSE (21.5)

18532-634-670

$7.58

14

RUBBER, TAILLIGHT

33712-KT1-670

$4.28

15

SENSOR ASSY., AIR TEMPERATURE

37880-KWW-C01

$40.93

16

CLAMP, TUBE (14.0)

90651-HM3-A71

$2.13

17

CLIP, PANEL FIXING

91549-MCA-000

$1.90

18

BOLT-WASHER (6X25)

93404-06025-07

$1.72

19

SCREW, TAPPING (5X20)

93901-25420

$0.76

20

SCREW, TAPPING (5X20)

93903-25480

$0.84

21

TUBE, VINYL (11X15X250) (95003-37001-60M) (NA USE ALT:95003-37001-60M)

95003-37025-31

Unavailable
