Description

Price

1

REFLECTOR, R. FR. REFLEX

33741-MKC-A05

$54.20

2

REFLECTOR, L. FR. REFLEX

33742-MKC-A05

$54.20

3

GROMMET, FR. FORK

51114-MKC-A00

$7.18

4

CAP, STEM PIPE

51117-MKC-A00

$8.67

5

FORK SUB-ASSY., FR. (TYPE3)

51119-MKC-A00ZC

$1,250.18

6

HOLDER ASSY., FR. FORK (TYPE3)

51200-MKC-A00ZC

$355.21

7

COLLAR, L. PIVOT DISTANCE

51365-MKC-A00

$13.69

8

COLLAR B, R. PIVOT DISTANCE

51366-MKC-A00

$18.87

9

END, R. TIE ROD (RIGHT HAND THREAD)

53157-MKC-A01

$47.67

10

END, L. TIE ROD (LEFT HAND THREAD)

53158-MKC-A01

$47.67

11

COVER, TIE ROD

53159-MKC-A00

$14.11

12

DUST SEAL (UPPER)

53214-MKC-A01

$14.33

13

DUST SEAL (LOWER)

53215-MKC-A01

$19.57

14

THREAD, STEERING HEAD TOP

53220-MKC-A00

$39.21

15

SEAL, FR. FORK

53233-MKC-A00

$9.20

16

ARM, STEERING

53240-MKC-A00

$139.16

17

CAP, NUT

53242-MKC-A00

$9.62

18

TIE ROD, STEERING

53521-MKC-A00

$11.05

19

BOLT (8X45)

90134-MEL-000

$2.92

20

BOLT, HEAD PIPE PIVOT (UPPER)

90174-MKC-A00

$28.77

21

BOLT, HEAD PIPE PIVOT (LOWER)

90175-MKC-A00

$31.25

22

BOLT, FLANGE (12X78)

90176-MKC-A00

$8.16

23

NUT, FLANGE (5MM) (FUSE RASHI)

90301-MG8-000

$4.66

24

NUT, U (10MM) NUT, SELF-LOCK (10MM)

90304-GE8-003

$3.67

25

NUT, SPECIAL U (16MM)

90305-MCB-610

$8.43

26

NUT, U FLANGE (12MM)

90306-KV6-911

$2.61

27

NUT A, HEX. (10MM)

90311-MKC-A00

$3.31

28

NUT B, HEX. (10MM) (LH)

90315-MKC-A00

$3.31

29

WASHER, LOCK

90502-MKC-A00

$7.34

30

WASHER (10X20X1.0)

90504-MKC-A00

$3.10

31

BEARING, HEAD PIPE (UPPER)

91061-MKC-A01

$39.07

32

BEARING, HEAD PIPE (LOWER)

91062-MKC-A01

$90.67

33

OIL SEAL (22X30X5)

91253-HL1-A01

$5.80

34

DUST SEAL (22X29X4) (ARAI)

91283-ML7-003

$5.92

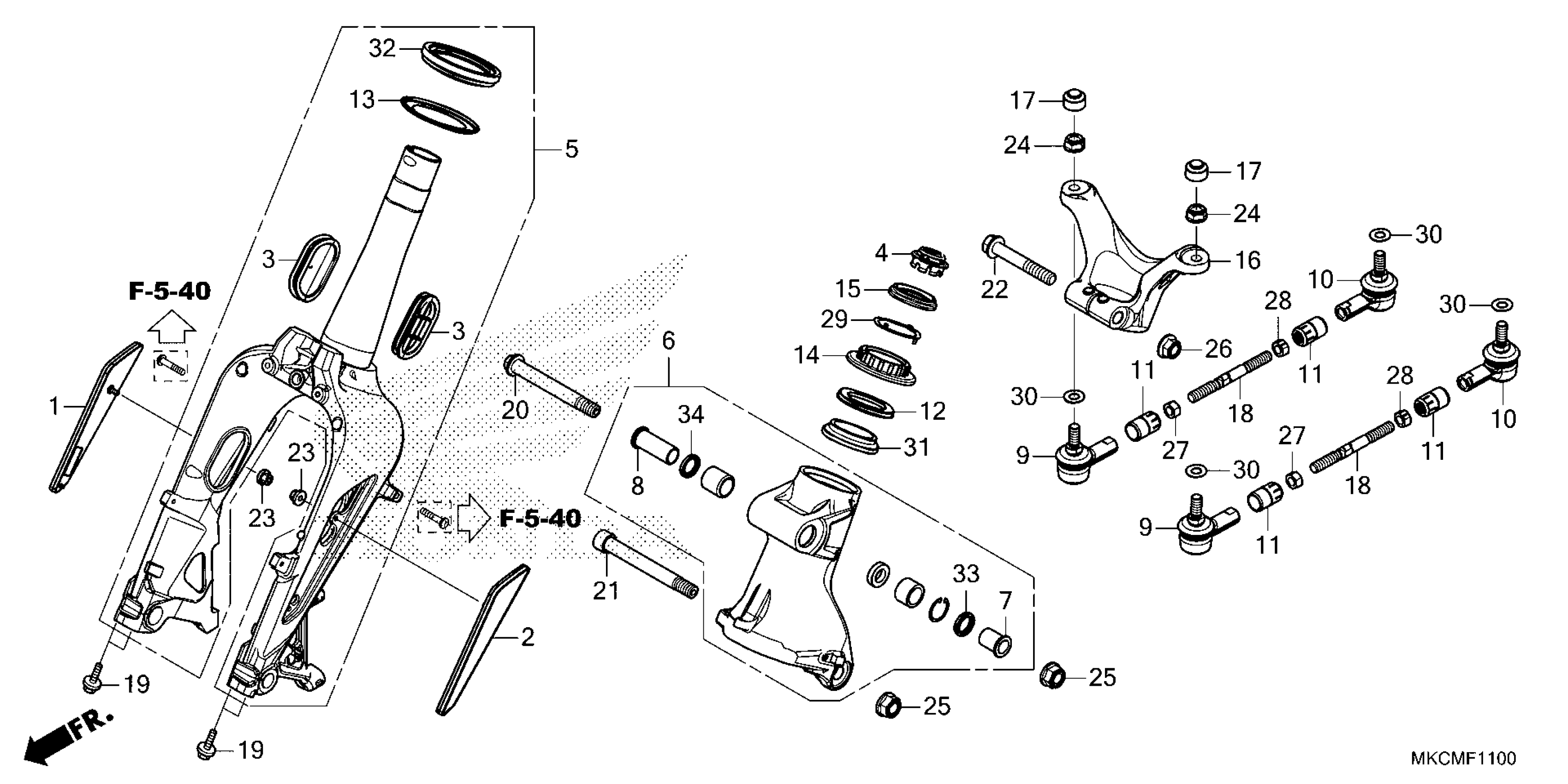

Honda GL1800BD3AC (21) MOTORCYCLE, JPN, VIN# JH2SC794-MK300001 FRONT FORK Diagram
