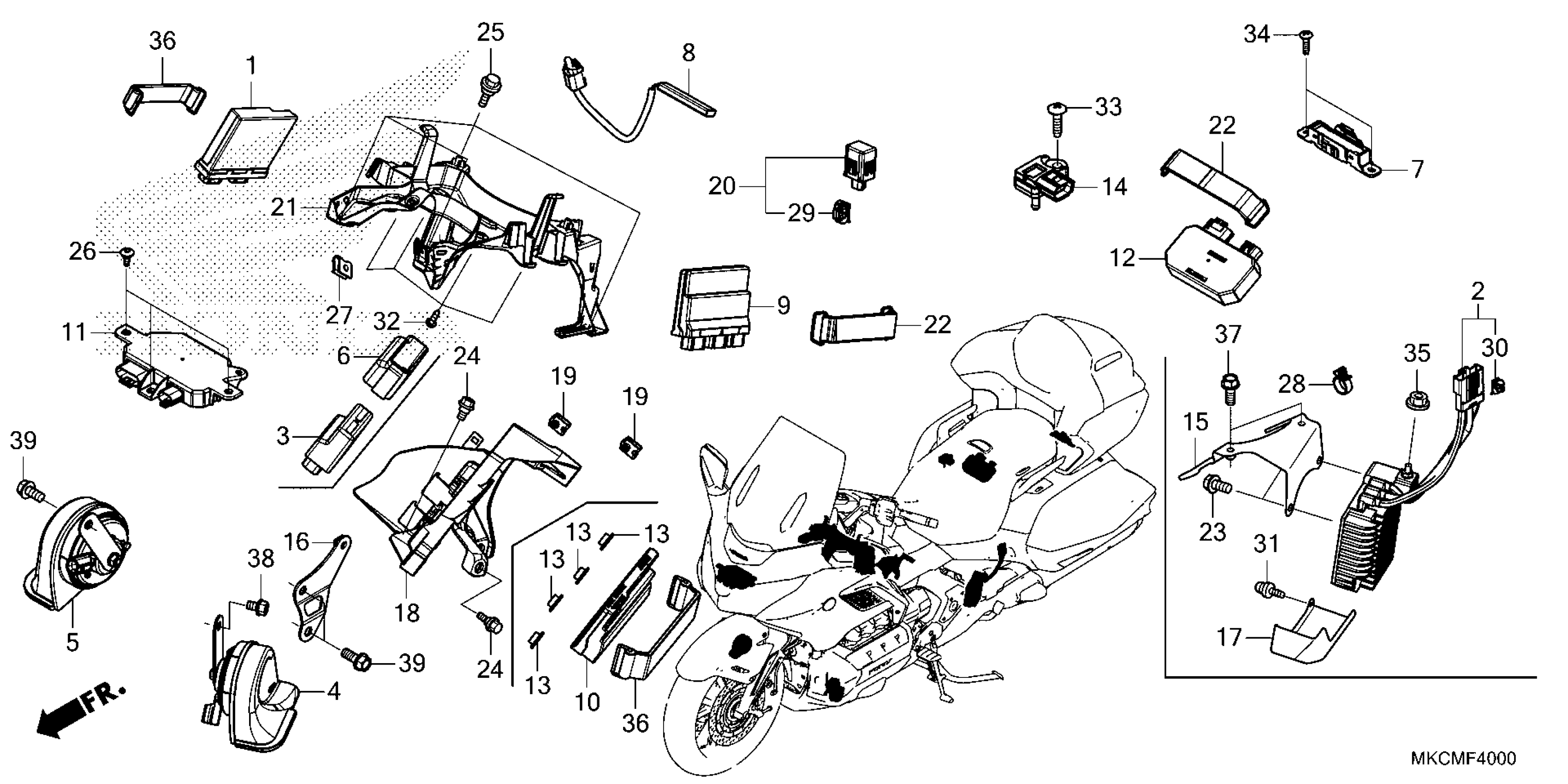

Honda GL1800BD3AC (21) MOTORCYCLE, JPN, VIN# JH2SC794-MK300001 CONTROL UNIT Diagram

SMART UNIT

35500-MKC-A02

$472.97

HORN ASSY. (HIGH)

38110-MKC-A01

$71.02

HORN ASSY. (LOW)

38120-MKC-A01

$71.02

ANTENNA ASSY., LF (FR) (FOR RR.)

38387-TY0-J01

$59.07

ANTENNA ASSY., LF (FR)

38389-MKC-A01

$41.34

PGM-FI UNIT (DCT)

38770-MKC-AF1

$1,625.30

PGM-DCT UNIT

38780-MKC-AF1

$749.05

CONTROL UNIT, FR.

38950-MKC-L31

$981.59

SENSOR A, MASTER POWER PRESSURE

46401-TM8-A01

$202.72

STAY, ELECTRIC UNIT

58150-MKC-A00

$31.00

NUT, CLIP (4MM)

64521-MN5-000

$2.92

BUZZER ASSY., SMART

74940-SZW-003

$95.34

STAY, CENTER POCKET

83120-MKC-A00

$53.34

BAND, TOOL SETTING (183MM)

89105-MCA-000

$9.85

BOLT, FLANGE (6MM)

90106-K29-900

$2.93

BOLT, FR. FENDER FIXING

90106-MM9-000

$2.97

SCREW, SPECIAL (5X15)

90114-MKC-A00

$2.92

CLIP, CONNECTOR (DARK GRAY)

91534-SWA-003

$9.84

SCREW, TAPPING (4X10)

93903-24220

$1.49

SCREW, TAPPING (5X20)

93903-25480

$1.49

SCREW, TAPPING (4X16)

93903-34480

$1.49

BAND F, BATTERY (155MM)

95012-17001

$7.23

BOLT, FLANGE (8X12)

95701-08012-08

$1.80

BOLT, FLANGE (8X20)

95701-08020-08

$1.62
