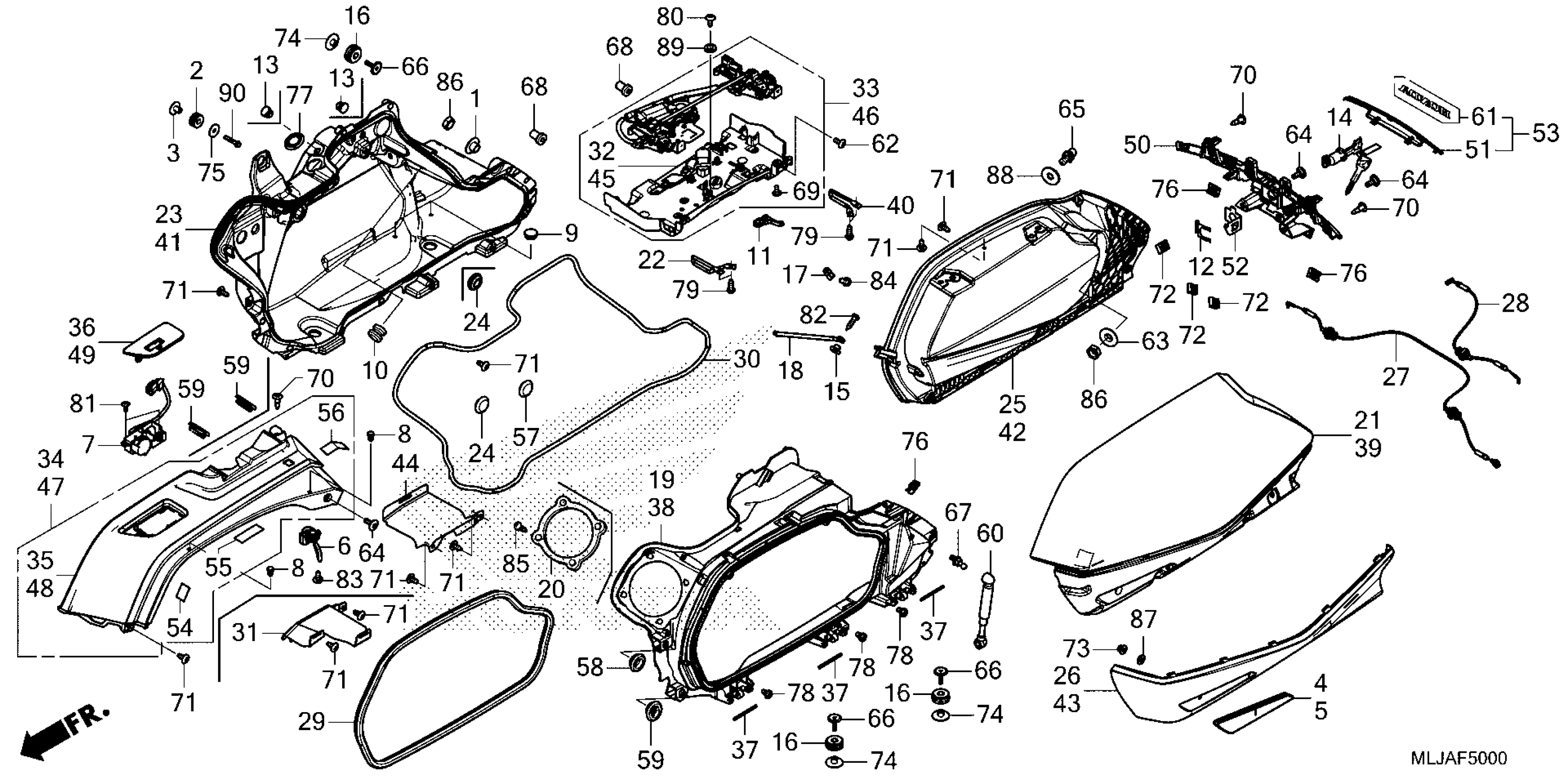

Honda GL1800BD2AC (24) MOTORCYCLE, JPN, VIN# JH2SC794-RK600001 TO JH2SC794-RK699999 SADDLEBAG Diagram

COLLAR (8MM)

18422-MR1-000

$5.12

RUBBER, RADIATOR MOUNTING

19051-KA3-710

$4.70

COLLAR, RADIATOR MOUNTING

19052-KA3-710

$6.44

REFLECTOR, R. RR. REFLEX

33743-MKC-A04

$49.36

REFLECTOR, L. RR. REFLEX

33744-MKC-A04

$49.88

SWITCH ASSY., LID OPENER

35380-MKC-A01

$43.86

PLUG, HEAD PIPE

50049-046-000

$1.86

PLUG, HOLE

50317-254-000

$2.04

PLUG, HOLE

50318-041-600

$2.01

LEVER, HOT STARTER

53190-MEN-670

$15.23

SPRING, LOCK KEY SETTING

75581-GN8-920

$4.47

RUBBER, SEAT SIDE (RIGHT SIDE)

77212-965-000

$4.60

KEY, EMERGENCY

77234-MKC-A02

$41.22

COLLAR, FENDER SETTING

80103-MCJ-750

$2.35

RUBBER, SADDLEBAG MOUNTING

80201-MCA-000

$14.03

STAY B, LID STOPPER

81254-MN5-000

$4.86

CABLE, SADDLEBAG STOPPER

81255-MKC-A00

$12.80

BODY, R. SADDLEBAG

81311-MKC-A10

$661.75

COVER, SADDLEBAG SPEAKER

81315-MKC-A10

$19.00

SET ILLUS (TYPE2)

81320-MLJ-AA0ZA

$513.75

ROD A, SADDLEBAG STRIKER

81324-MKC-A00

$13.97

PANEL, R. SADDLEBAG

81331-MKC-A00

$217.65

PLUG, BLIND (20MM)

81336-MKC-A00

$4.75

INNER LID, R. SADDLEBAG

81341-MKC-A00

$213.29

COVER, R. SADDLEBAG LID *NH1* (BLACK)

81344-MKC-A00ZA

$59.03

CABLE, R. SADDLEBAG EMERGENCY

81345-MKC-A01

$20.59

CABLE, L. SADDLEBAG EMERGENCY

81346-MKC-A01

$13.97

RUBBER, SADDLEBAG LID SEAL

81350-MKC-A00

$44.30

RUBBER, BACK PANEL SEAL

81351-MKC-A00

$20.61

GUARD, R. SADDLEBAG HEAT

81359-MKC-A00

$16.77

COVER, R. SADDLEBAG CATCH

81362-MKC-A00

Unavailable

CATCH ASSY., R. SADDLEBAG

81365-MKC-A01

$280.48

COVER ASSY. (TYPE2)

81391-MLJ-AA0ZA

$167.04

COVER, R. SADDLEBAG SWITCH

81395-MKC-A00

$23.35

PIN, SADDLEBAG HINGE

81401-MKC-A00

$3.91

BODY, L. SADDLEBAG

81411-MKC-A10

$661.75

SET ILLUS (TYPE2)

81420-MLJ-AA0ZA

$513.75

ROD B, SADDLEBAG STRIKER

81424-MKC-A00

$13.97

PANEL, L. SADDLEBAG

81431-MKC-A00

$217.65

INNER LID, L. SADDLEBAG

81441-MKC-A00

$213.29

COVER, L. SADDLEBAG LID *NH1* (BLACK)

81444-MKC-A00ZA

$40.87

GUARD, L. SADDLEBAG HEAT

81459-MKC-A00

$13.97

COVER, L. SADDLEBAG CATCH

81462-MKC-A00

Unavailable

CATCH ASSY., L. SADDLEBAG

81465-MKC-A01

$280.48

COVER ASSY. (TYPE2)

81491-MLJ-AA0ZA

$167.04

COVER, L. SADDLEBAG SWITCH

81495-MKC-A10

$16.11

COWL, RR. CENTER SADDLEBAG

81501-MKC-A00

$44.14

STAY, EMERGENCY CABLE

81504-MKC-A00

$6.97

COVER SET, RR. CENTER SADDLEBAG (WL)

81505-MKC-A10

$28.39

TAPE D, PROTECTION

81997-MKC-A01

$1.94

TAPE E, PROTECTION

81998-MKC-A00

$2.91

TAPE F, PROTECTION

81999-MKC-A00

$3.45

GROMMET, DRAIN HOLE (25MM)

82871-671-000

$4.15

GROMMET, RR. COVER

83504-GE0-000

$2.80

GROMMET, AIR CLEANER HOUSING

83551-GE2-000

Unavailable

DAMPER, SADDLEBAG LID

83590-MKC-A01

$48.57

EMBLEM, HONDA (100MM)

86102-MKC-A10

$25.01

SCREW, SPECIAL (5X16)

90001-MG1-000

$4.16

COLLAR A, FENDER SETTING

90006-KC5-000

$1.71

SCREW, SPECIAL (5X14)

90101-MJJ-D30

$2.94

STUD, BALL

90108-KWR-003

$5.29

SCREW, SPECIAL (6MM)

90109-MCA-000

$3.41

STUD, BALL

90109-SCK-003

$13.97

NUT, WELL (5MM)

90111-MGS-D70

$3.15

SCREW (5X12)

90112-MJK-N20

$2.04

CLIP, BUMPER SEAL

90116-SP0-003

$4.40

SCREW, TAPPING (5X12)

90121-MJK-N20

$2.04

NUT, SPRING (5MM)

90301-KE1-003

$2.80

NUT, FLANGE (5MM) (FUSE RASHI)

90301-MG8-000

$4.25

COLLAR, SADDLEBAG MOUNTING

90501-MCA-000

$4.70

WASHER, FENDER MOUNTING

90506-430-000

$2.71

NUT, CLIP (5MM)

90677-KAN-961

$3.79

GROMMET (30MM)

90830-T0T-003

$0.54

SCREW, TAPPING (4X8)

93901-24180

$0.65

SCREW, TAPPING (5X16)

93901-25380

$0.83

SCREW, TAPPING (4X10)

93903-24220

$0.83

SCREW, TAPPING (5X20)

93903-25420

$0.59

SCREW, TAPPING (3X8)

93903-32180

$0.59

SCREW, TAPPING (4X16)

93911-14480

$0.83

SCREW, TAPPING (5X14) (PO)

93913-25380

$0.83

NUT, HEX. (8MM)

94001-08000-0S

$1.19

WASHER, PLAIN (5MM)

94101-05800

$0.90

WASHER, PLAIN (8MM)

94101-08000

$0.75

WASHER, PLAIN (4MM)

94103-04800

$0.90

BOLT, FLANGE (6X32)

96001-06032-00

$1.28
