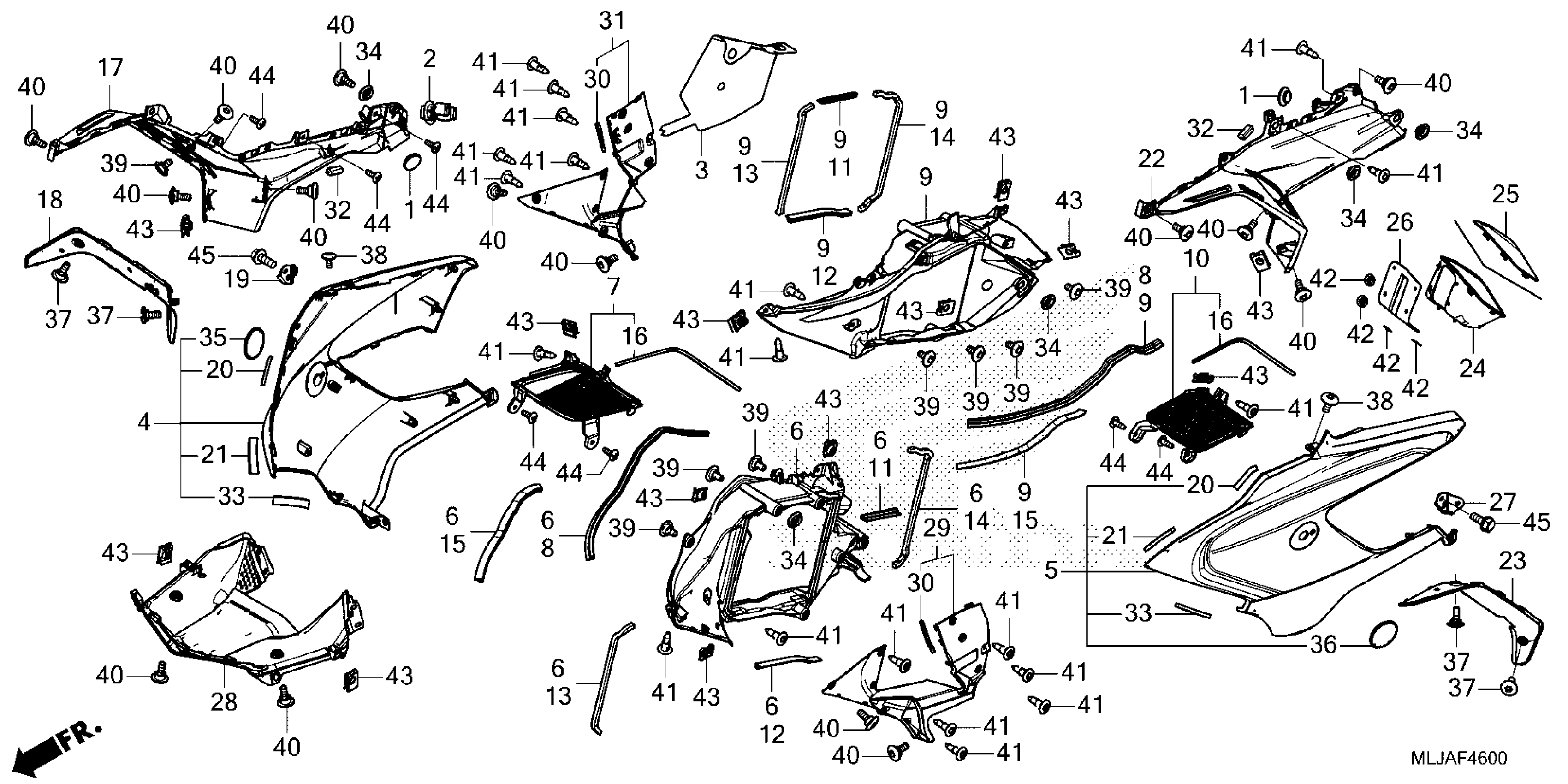

Honda GL1800BD2AC (24) MOTORCYCLE, JPN, VIN# JH2SC794-RK600001 TO JH2SC794-RK699999 COWL Diagram

#

Description
Price

1

RUBBER, FUEL PUMP STOPPER

16712-MN5-000

$2.64

2

CLAMP A, FUEL HOSE

16725-PNA-003

$0.80

3

RUBBER, AIR GUARD

17229-MKC-A00

$46.13

4

COWL ASSY. (TYPE1)

64300-MLJ-AB0ZA

$267.94

5

COWL ASSY. (TYPE1)

64305-MLJ-AB0ZA

$267.94

6

GUIDE ASSY., R. AIR (OUTER)

64311-MKC-A00

$160.20

7

GRILL ASSY., R. RADIATOR OUTLET

64312-MKC-A00

$60.75

8

SEAL A, AIR GUIDE

64318-MKC-A00

$10.86

9

GUIDE ASSY., L. AIR (OUTER)

64321-MKC-A00

$160.20

10

GRILL ASSY., L. RADIATOR OUTLET

64322-MKC-A00

$60.75

11

SEAL C, AIR GUIDE

64323-MKC-A00

$3.51

12

SEAL D, AIR GUIDE

64324-MKC-A00

$4.09

13

SEAL, FR. RADIATOR

64328-MKC-A00

$3.63

14

SEAL, RR. RADIATOR

64331-MKC-A00

$5.93

15

SEAL B, AIR GUIDE

64332-MKC-A00

$7.32

16

SEAL, RADIATOR OUTLET GRILL

64333-MKC-A00

$3.53

17

PANEL A, R. DEFLECTOR

64335-MKC-A00

$72.36

18

PANEL B, R. DEFLECTOR

64336-MKC-A00

$16.21

19

STAY, R. DEFLECTOR

64339-MKC-A00

$5.23

20

SEAL, MIDDLE COWL (UPPER)

64341-MKC-A00

$1.93

21

SEAL, MIDDLE COWL (LOWER)

64342-MKC-A00

$3.62

22

PANEL A, L. DEFLECTOR

64345-MKC-A00

$77.22

23

PANEL B, L. DEFLECTOR

64346-MKC-A00

$16.21

24

PANEL, PARKING LEVER

64347-MKC-A00

$20.62

26

RUBBER, PARKING LEVER PANEL

64348-MKC-A00

$6.25

27

STAY, L. DEFLECTOR

64349-MKC-A00

$5.23

28

COWL, FR. CENTER

64355-MKC-A00

$56.46

29

COWL, R. (INNER)

64365-MKC-A00

$20.46

30

SEAL, COWL (INNER)

64366-MKC-A00

$1.97

31

COWL, L. (INNER)

64375-MKC-A00

$20.46

32

PROTECTOR, RUBBER

77212-MFJ-D00

$1.58

33

SEAL, TRUNK PANEL

81112-MCA-S40

$0.65

34

GROMMET, AIR CLEANER HOUSING

83551-GE2-000

Unavailable

35

BADGE, R. PRODUCT

86211-MJK-N20

$33.53

36

BADGE, L. PRODUCT

86212-MJK-N20

$33.53

37

SCREW, SPECIAL (5X14)

90102-MKA-D80

$2.64

38

SCREW, SPECIAL (5X12)

90106-MBY-000

$2.43

39

SCREW, SPECIAL (5X11)

90114-KPH-700

$0.90

40

SCREW, SPECIAL (5X15)

90114-MKC-A00

$2.75

41

CLIP, BUMPER SEAL

90116-SP0-003

$4.40

42

NUT, PUSH (3MM)

90301-ST0-003

$2.87

43

NUT, CLIP (5MM)

90677-KAN-961

$3.79

44

SCREW, TAPPING (4X12)

93903-24380

Unavailable

45

BOLT, FLANGE (6X16)

95701-06016-08

$1.32
