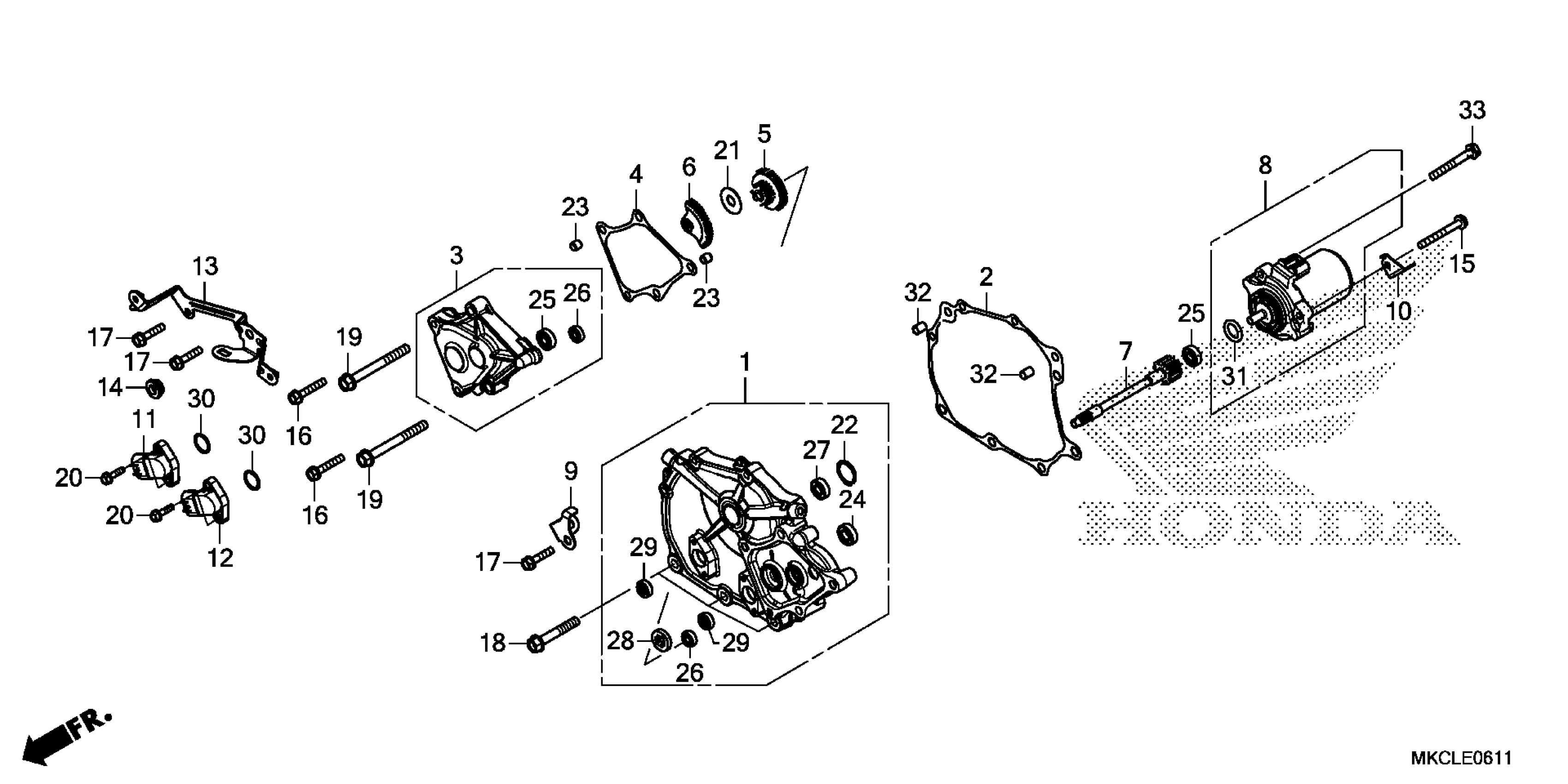

Honda GL1800BD2AC (20) MOTORCYCLE, JPN, VIN# JH2SC794-LK200001 SHIFT COVER (DCT) Diagram

COVER, SHIFT

11360-MKC-A00

$102.03

GASKET, SHIFT COVER

11365-MKC-A01

$14.72

COVER, REDUCTION GEAR

11520-MKC-A00

$77.93

GASKET, REDUCTION COVER

11525-MKC-A01

$7.97

GEAR, REDUCTION (65T/19T)

24615-MKC-A01

$75.84

GEAR, REDUCTION (50T)

24616-MKC-A01

$55.33

SHAFT, REDUCTION GEAR

24618-MKC-A00

$65.30

MOTOR, RATIO CONTROL This part replaces 31300-KVZ-631.

31300-KVZ-632

$288.21

STAY A, CLIP

32151-MKC-A00

$5.48

STAY, HARNESS CLIP (C)

32163-HL4-000

$3.74

SENSOR ASSY., ANGLE (350DEGREE)

38800-MKC-A01

$140.30

SENSOR ASSY., ANGLE (40DEGREE)

38810-MKC-A01

$140.30

STAY, FR. (LOWER) (INNER)

64412-MKC-A00

$13.89

RUBBER, AIR DUCT COVER SETTING

64586-MBW-D20

$3.08

BOLT, FLANGE (6X52) This part replaces 90001-MB0-000.

90009-HA0-000

$4.24

BOLT, FLANGE (6X52)

90009-HA0-000

$4.24

BOLT, FLANGE (6X35)

90031-MKC-A00

$2.26

BOLT, FLANGE (6X28)

90033-MKC-A00

$2.26

BOLT, FLANGE (8X50)

90076-MKC-A00

$3.25

BOLT, FLANGE (8X75)

90077-MKC-A00

$3.41

BOLT, FLANGE (5X20)

90097-MKC-A00

$2.11

WASHER (26X10.5)

90512-KRN-730

$2.59

CIRCLIP (INNER) (16)

90606-MKC-A00

$2.54

PIN, DOWEL (8X8)

90702-MB0-000

$3.80

BEARING, RADIAL BALL (699ZZ)

91025-MGS-D21

$10.98

BEARING, RADIAL BALL (607ZZ)

91026-MGS-D21

$9.77

BEARING, RADIAL BALL (696ZZ)

91027-MGS-D21

$8.69

BEARING, RADIAL BALL (8X16X4)

91030-MKC-A01

$8.72

OIL SEAL (10X21X5)

91204-HP1-601

$3.67

OIL SEAL (8X16X6) This part replaces 91208-MS2-611.

91254-792-003

$2.92

OIL SEAL (8X16X6) This part replaces 91208-689-005.

91254-792-003

$2.92

OIL SEAL (8X16X6)

91254-792-003

$2.92

O-RING, ANGLE SENSOR

91308-HN0-A10

$2.72

O-RING, CONTROL MOTOR

91351-HM8-A51

$3.81

PIN A, DOWEL (8X10)

94301-08100

$2.25

BOLT, FLANGE (6X28)

95701-06028-00

$1.73
