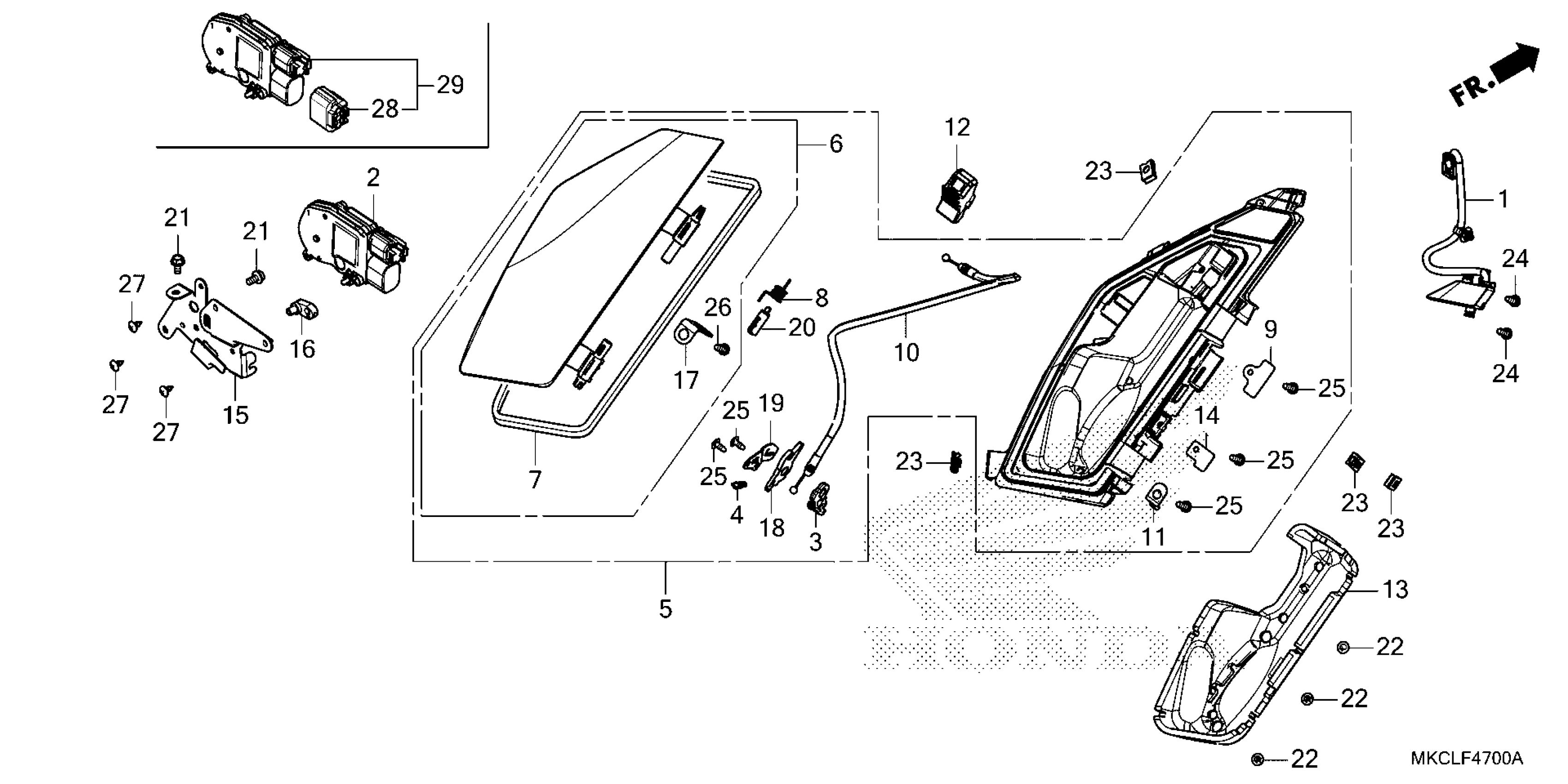

Honda GL1800BD2AC (20) MOTORCYCLE, JPN, VIN# JH2SC794-LK200001 POCKET Diagram

#

Description
Price

1

SWITCH ASSY., POCKET OPEN

35370-MKC-A01

$44.50

2

ACTUATOR ASSY.

36520-KSV-J03

$85.75

3

CAM B, POCKET COVER LOCK

64429-MKC-A00

$8.01

4

SPRING, POCKET LOCK CAM

64436-MCA-000

$4.47

5

POCKET ASSY.

64610-MKC-A00

$85.65

6

LID ASSY., POCKET

64620-MKC-A00

$38.32

7

SEAL, POCKET

64622-MKC-A00

$5.69

8

SPRING, POCKET

64623-MKC-A00

$3.00

9

STAY, DAMPER

64632-MKC-A00

$3.41

10

CABLE, POCKET LID

64633-MKC-A01

$8.21

11

STAY, CABLE LOCK

64634-MKC-A00

$2.15

12

KNOB, FUEL LID OPENER

64635-MKC-A00

$10.85

13

CASE, SIDE POCKET (OUTER)

64636-MKC-A00

$85.07

14

PLATE, SIDE POCKET

64637-MKC-A00

$2.15

15

STAY, ACTUATOR

64641-MKC-A00

$17.75

16

JOINT, CABLE

77242-KSV-J00

$5.40

17

PLATE, POCKET LOCK

83128-MCA-S40

$3.19

18

CAM A, POCKET COVER LOCK

83132-MCA-S40

$5.96

19

STAY, CABLE LID

83174-MJN-A00

$3.12

20

DAMPER, CHARGE LID

83534-GGK-003

$3.71

21

BOLT, FLANGE (5X10)

90002-892-000

$1.31

22

NUT, PUSH (3MM)

90301-ST0-003

$2.91

23

NUT, CLIP (5MM)

90677-KAN-961

$3.89

24

SCREW, TAPPING (3X12)

93901-22320

$0.52

25

SCREW, TAPPING (4X8)

93903-24120

$0.84

26

SCREW, TAPPING (4X8)

93903-24180

$0.76

27

SCREW, TAPPING (4X12)

93903-24320

$0.84
