Description

Price

1

RUBBER A, BEARING

11371-MKC-A20

$8.74

2

LIFTER, MAIN DAMPER

23112-MKC-A20

$40.67

3

CAM, MAIN DAMPER

23113-MKC-A20

$39.65

4

SPRING, MAIN DAMPER

23114-MKC-A20

$10.65

5

MAINSHAFT (20T)

23211-MKC-A20

$198.22

6

PLATE A, BEARING SETTING

23212-MKC-A00

$13.71

7

PLATE B, BEARING SETTING

23213-MKC-A00

$18.54

8

MAINSHAFT (OUTER) (23T)

23231-MKC-A20

$223.42

9

COLLAR, CLUTCH (OUTER)

23235-MKC-A00

$37.72

10

GEAR, MAINSHAFT SECOND (24T)

23431-MKC-A20

$107.67

11

GEAR, MAINSHAFT THIRD (28T)

23451-MKC-A20

$100.54

12

GEAR, MAINSHAFT FOURTH (39T)

23471-MKC-A20

$121.59

13

GEAR, MAINSHAFT FIFTH (42T)

23491-MKC-A20

$114.00

14

COLLAR (32X35X13.5)

23492-HL4-000

$15.04

15

COLLAR, SPLINE (32X35X14)

23492-MKC-A20

$16.87

16

GEAR, MAINSHAFT TOP (46T)

23531-MKC-A00

$119.06

17

NUT, LOCK (25MM)

90231-MCH-000

$6.32

18

WASHER (42.2X81X1)

90410-MKC-A20

$7.30

19

WASHER, SPECIAL (25X40X2)

90417-HL4-000

$4.12

20

WASHER, THRUST (25X40X2)

90451-VM0-000

$5.46

21

WASHER, SPLINE (32X17X1.667)

90452-MCA-000

$2.51

22

WASHER, SPLINE (32MM)

90466-MKC-A20

$5.67

23

WASHER, LOCK (32MM)

90469-MKC-A20

$3.88

24

CIRCLIP (32MM)

90604-MCA-780

$3.14

25

BEARING, RADIAL BALL (40X76X18)

91023-MKC-A01

$36.43

26

BEARING, RADIAL BALL (25X62X17) (EC)

91024-MKC-A01

$25.49

27

BOLT, FLANGE (6X16) (Honda Code 2410892)

95701-06016-00

$1.48

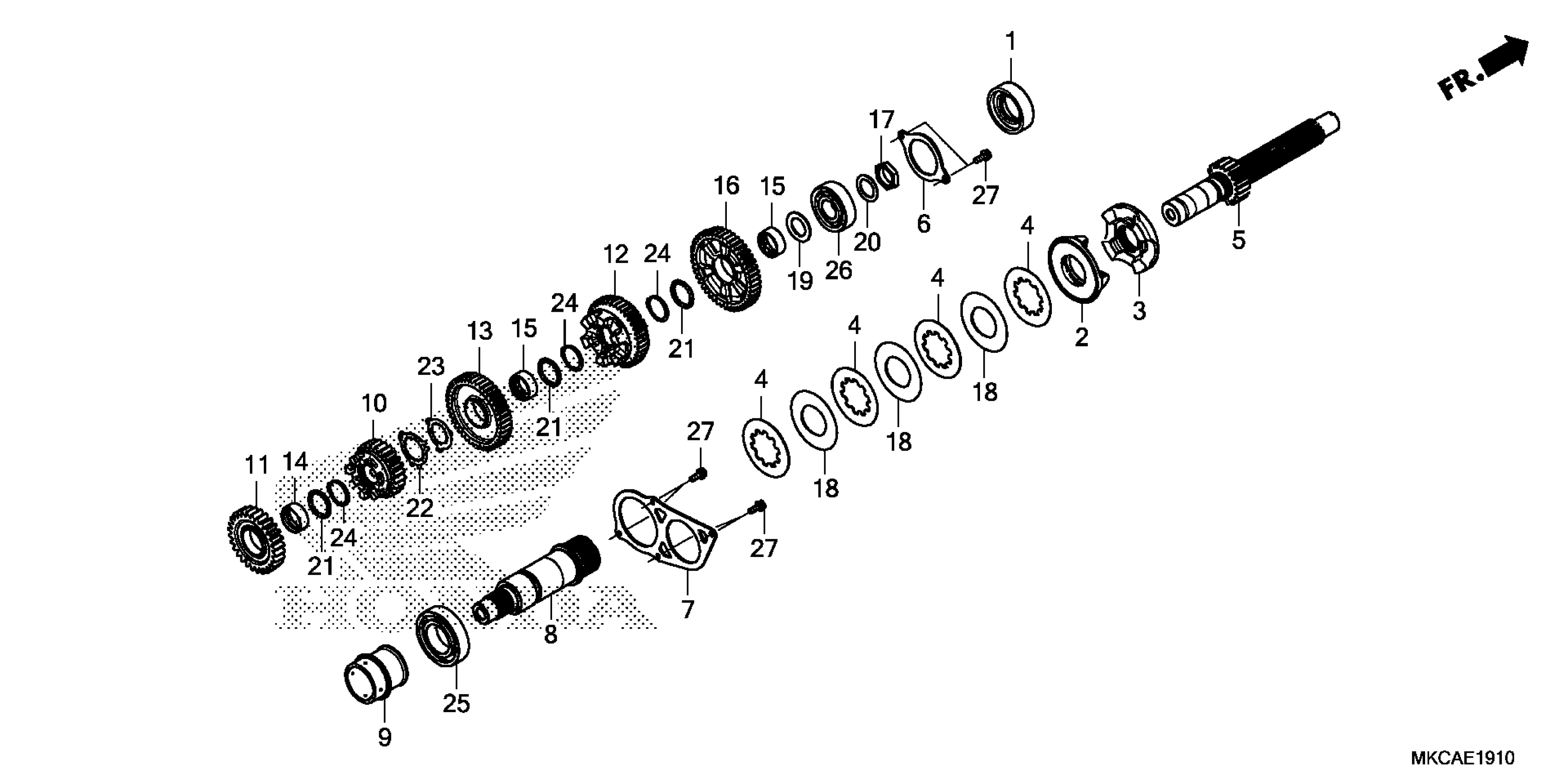

Honda GL1800BAC (19) MOTORCYCLE, JPN, VIN# JH2SC791-KK100001 TRANSMISSION (MAINSHAFT) Diagram
