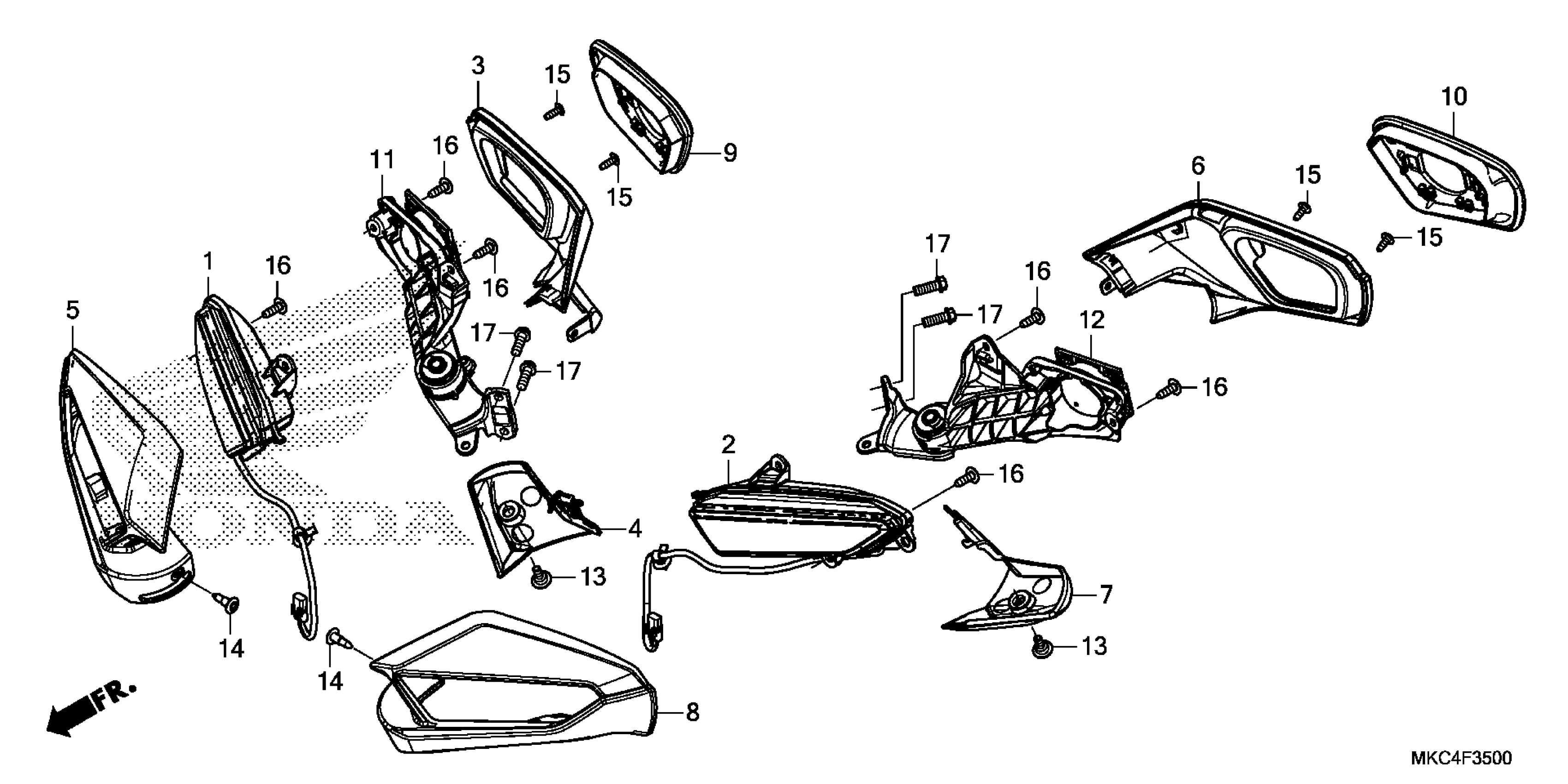

Honda GL1800BAC (18) MOTORCYCLE, JPN, VIN# JH2SC791-JK000001 TURN SIGNAL@MIRROR Diagram

TURN SIGNAL ASSY., R. FR. | Use up to Frame SN JK000987. This part replaces 33400-MKC-A01.

33400-MKC-A02

$169.79

TURN SIGNAL ASSY., R. FR. | Use from Frame SN JK000988.

33400-MKC-A02

$169.79

TURN SIGNAL ASSY., L. FR. | Use up to Frame SN JK000987. This part replaces 33450-MKC-A01.

33450-MKC-A02

$169.79

TURN SIGNAL ASSY., L. FR. | Use from Frame SN JK000988.

33450-MKC-A02

$169.79

PANEL, R. MIRROR

88131-MKC-A00

$13.88

PANEL, R. MIRROR ARM

88133-MKC-A00

$9.61

COVER, R. MIRROR (TYPE1)

88135-MKC-A00ZE

$123.92

COVER, R. MIRROR (TYPE4)

88135-MKC-A00ZB

$123.92

COVER, R. MIRROR (TYPE3)

88135-MKC-A00ZC

$127.61

PANEL, L. MIRROR

88141-MKC-A00

$14.72

PANEL, L. MIRROR ARM

88143-MKC-A00

$9.61

COVER, L. MIRROR (TYPE1)

88145-MKC-A00ZE

$127.23

COVER, L. MIRROR (TYPE4)

88145-MKC-A00ZB

$127.23

COVER, L. MIRROR (TYPE3)

88145-MKC-A00ZC

$131.08

HOLDER ASSY., R.

88210-MKC-A00

$23.28

HOLDER ASSY., L.

88220-MKC-A00

$23.28

BRACKET ASSY., R.

88310-MKC-A00

$42.08

BRACKET ASSY., L.

88320-MKC-A00

$42.08

SCREW, SPECIAL (5X15)

90114-MKC-A00

$2.92

CLIP, BUMPER SEAL

90116-SP0-003

$4.86

SCREW, TAPPING (4X12)

93903-24380

$1.49

SCREW, TAPPING (5X16)

93903-25380

$1.49

BOLT, FLANGE (6X20)

96001-06020-07

$1.49
