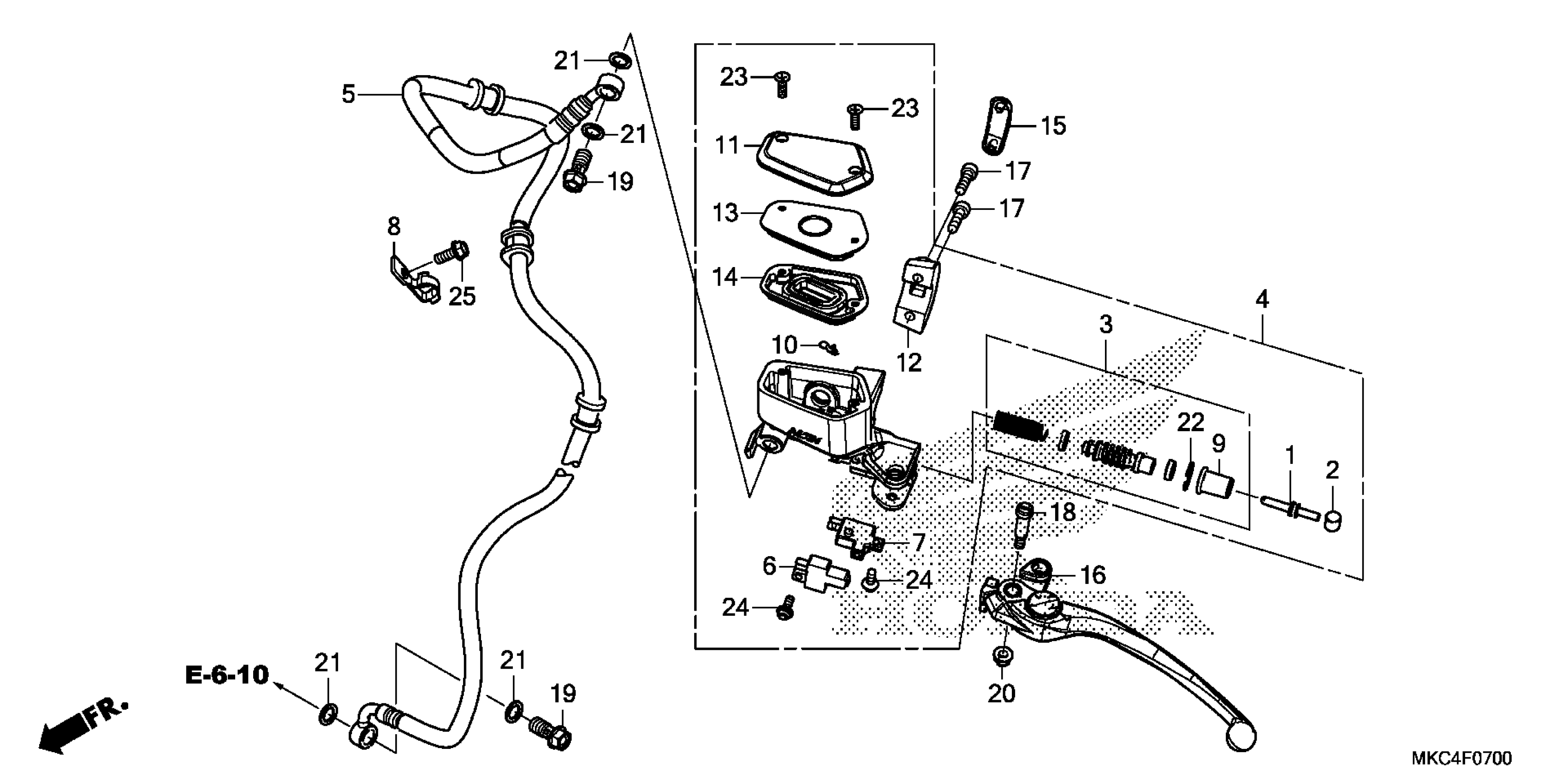

Honda GL1800BAC (18) MOTORCYCLE, JPN, VIN# JH2SC791-JK000001 CLUTCH MASTER CYLINDER Diagram

#

Description
Price

1

ROD, PUSH

22884-MAT-E01

$19.35

2

BUSH

22885-MB0-006

$12.95

3

PISTON SET, MASTER CYLINDER

22886-MAT-E01

$57.04

4

MASTER CYLINDER SUB-ASSY., CLUTCH

22890-MKC-A21

$232.59

5

HOSE, CLUTCH

22900-MKC-A11

$76.84

6

SWITCH ASSY., CLUTCH

35330-MB0-003

$18.22

7

SWITCH ASSY., CLUTCH CRUISE (TOYO)

35335-MG9-951

$23.58

8

CLAMP A, FR. BRAKE HOSE

45158-MFL-D00

$3.64

9

BOOT

45504-MAT-E01

$10.65

10

PROTECTOR

45512-MA6-006

$4.28

11

CAP, MASTER CYLINDER

45513-MGE-006

$35.02

12

HOLDER, MASTER CYLINDER

45517-MAM-A62

$14.27

13

PLATE, DIAPHRAGM

45518-MGE-006

$8.05

14

DIAPHRAGM

45520-MGE-006

$15.15

15

CAP, BRAKE MASTER CYLINDER HOLDER

45553-MAM-A60

$3.12

16

LEVER ASSY., L. HANDLE

53180-MCA-006

$64.70

17

BOLT, SOCKET (6X22)

90101-MCL-000

$1.49

18

BOLT, HANDLE LEVER

90114-MG9-951

$7.88

19

BOLT, OIL (10X22) (SAGA)

90145-MS9-612

$7.54

20

NUT, CAP (6MM)

90202-ZV0-000

$2.91

21

WASHER, OIL BOLT

90545-300-000

$3.99

22

CIRCLIP

90651-MA5-671

$2.66

23

SCREW, FLAT (4X12)

93600-04012-0G

$1.49

23

SCREW, FLAT (4X12) This part replaces 93600-04012-1G.

93600-04012-0G

$1.49

24

SCREW-WASHER (4X12)

93893-04012-07

$1.49

24

SCREW-WASHER (4X12) This part replaces 93893-04012-17.

93893-04012-07

$1.49

25

BOLT, FLANGE (6X16)

95701-06016-07

$1.55
