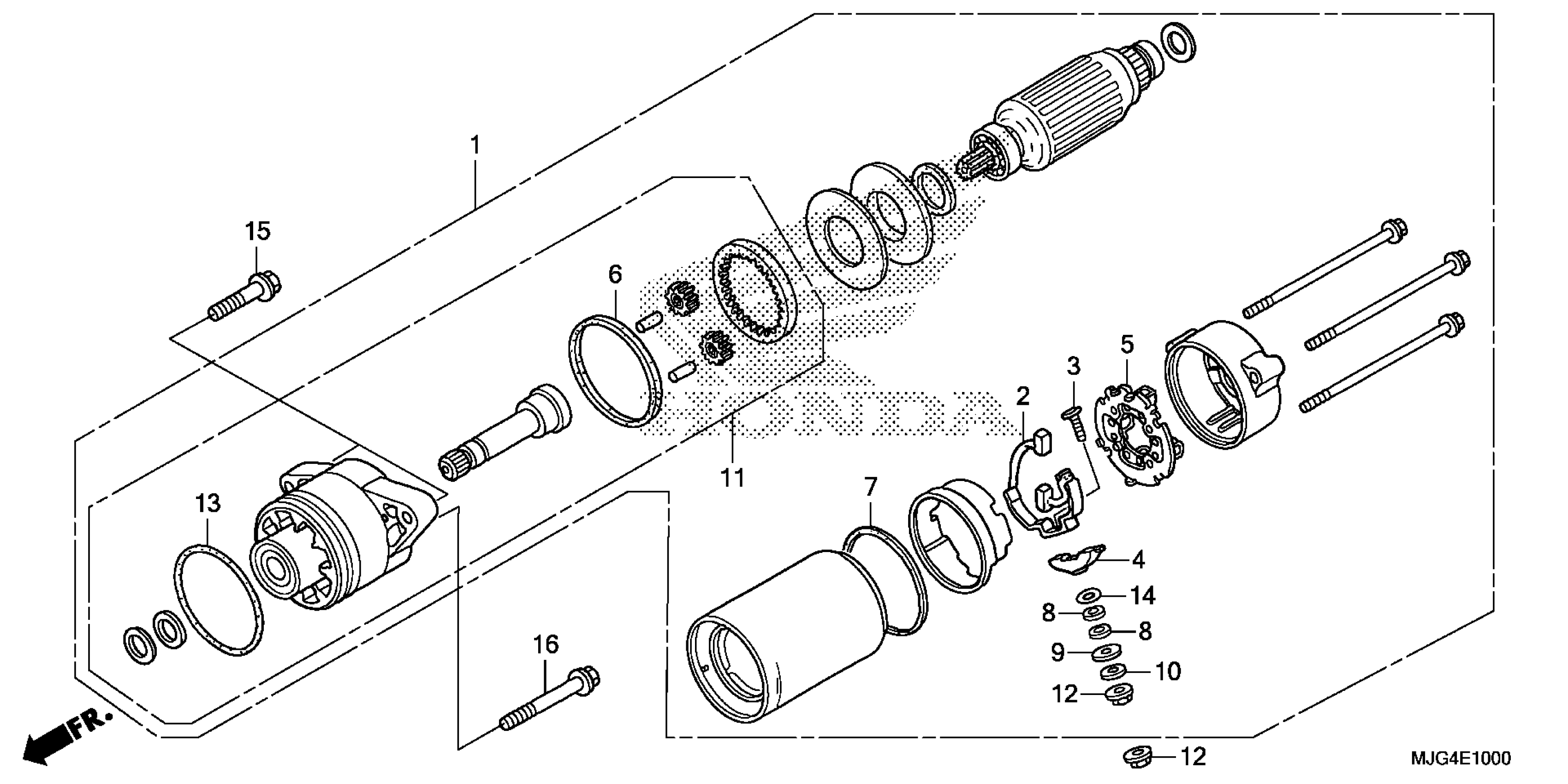

Honda GL1800BAC (17) GOLDWING F6B, JPN, VIN# JH2SC681-HK400001 STARTER MOTOR Diagram

Description

Price

STARTER MOTOR ASSY. (MITSUBA)

31200-MJG-671

$969.94

BRUSH SET, TERMINAL

31201-MT8-008

$30.49

BOLT, TERMINAL

31204-MN5-008

$3.91

INSULATOR, TERMINAL

31206-MN5-008

$9.56

HOLDER SET, BRUSH

31206-MR6-008

$22.58

RING, SEAL

31207-179-711

$4.04

RING

31207-KS5-901

$2.97

WASHER, INSULATOR

31207-MN5-008

$2.83

WASHER, INSULATOR

31208-MN5-008

$3.01

WASHER (6MM)

31209-MN5-008

$2.83

GEAR ASSY.

31210-MEC-A00

$393.04

NUT-WASHER (6MM)

90071-MB0-000

$1.91

O-RING (59.6X2.4)

91309-MN5-008

$7.97

O-RING (4X2)

91320-MB0-000

$2.24

BOLT, FLANGE (8X38)

95701-08038-00

$1.40

BOLT, FLANGE (8X60)

95701-08060-00

$1.40
