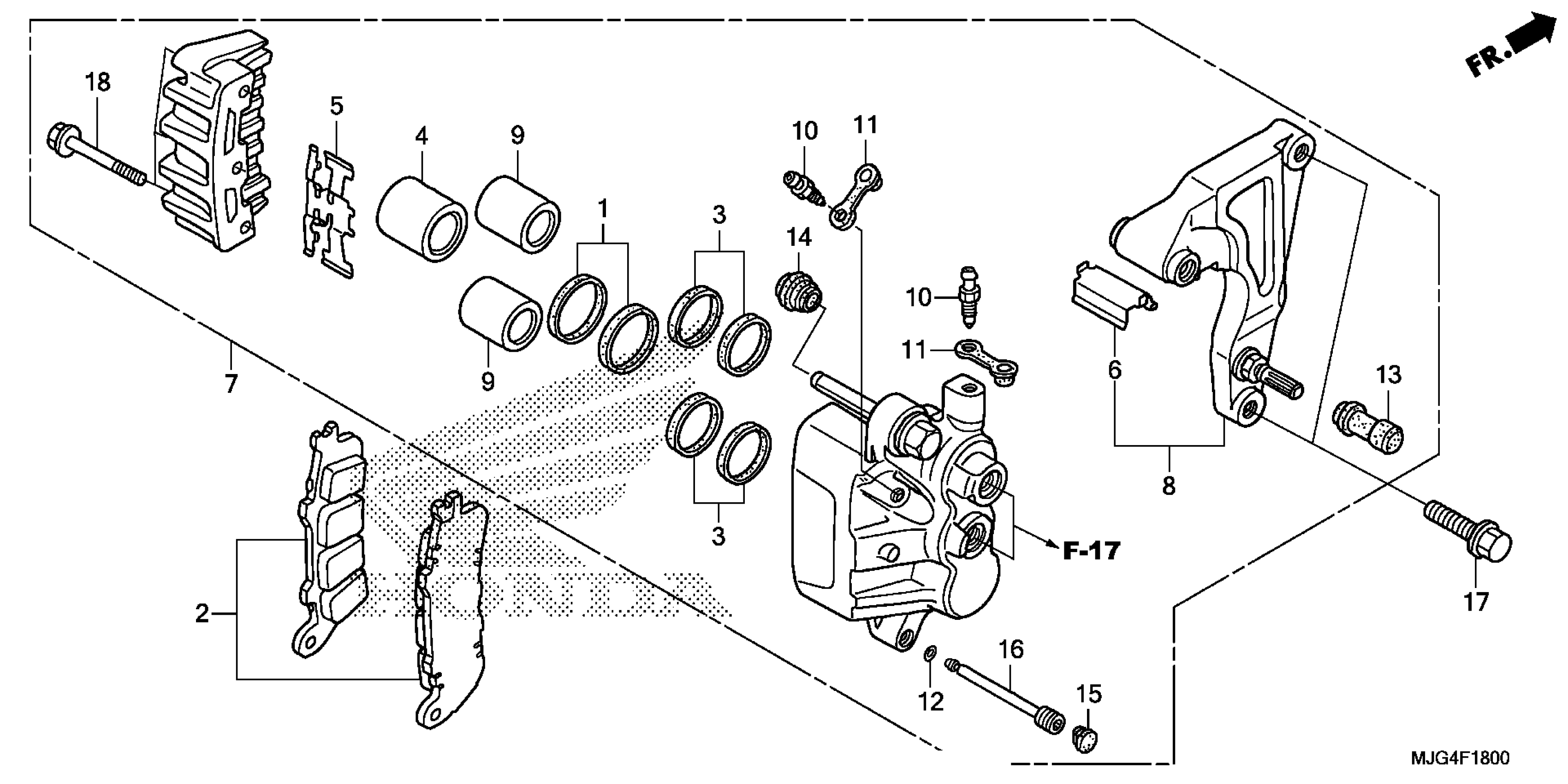

Honda GL1800BAC (17) GOLDWING F6B, JPN, VIN# JH2SC681-HK400001 REAR BRAKE CALIPER Diagram

Description

Price

SEAL SET, PISTON

06431-MA3-405

$7.00

PAD SET, RR.

06435-MCA-026

$41.38

SEAL SET, PISTON

06451-MZ2-405

$11.51

PISTON (27X31)

43107-MAJ-G41

$36.21

SPRING, PAD

43108-MCA-006

$5.49

RETAINER, RR. BRACKET

43112-MCA-006

$4.16

CALIPER SUB-ASSY., RR. (NISSIN)

43150-MJG-671

$491.25

BRACKET SUB-ASSY., RR.

43190-MCA-006

$74.94

PISTON (22X39)

43207-MAJ-G41

$25.95

SCREW, BLEEDER (NISSIN)

43352-568-003

Unavailable

CAP, BLEEDER

43353-461-771

Unavailable

RING, STOPPER

45111-MAJ-G41

$3.63

BOOT, PIN BUSH (NISSIN)

45132-166-016

$5.21

BOOT B

45133-MA3-006

$5.21

PLUG, PIN

45203-MCC-006

$2.66

PIN, HANGER

45215-MAJ-G41

$6.15

BOLT, FLANGE (10X32)

90131-MY9-870

$2.07

BOLT, FLANGE (8X45)

90135-MAJ-G41

$6.17
