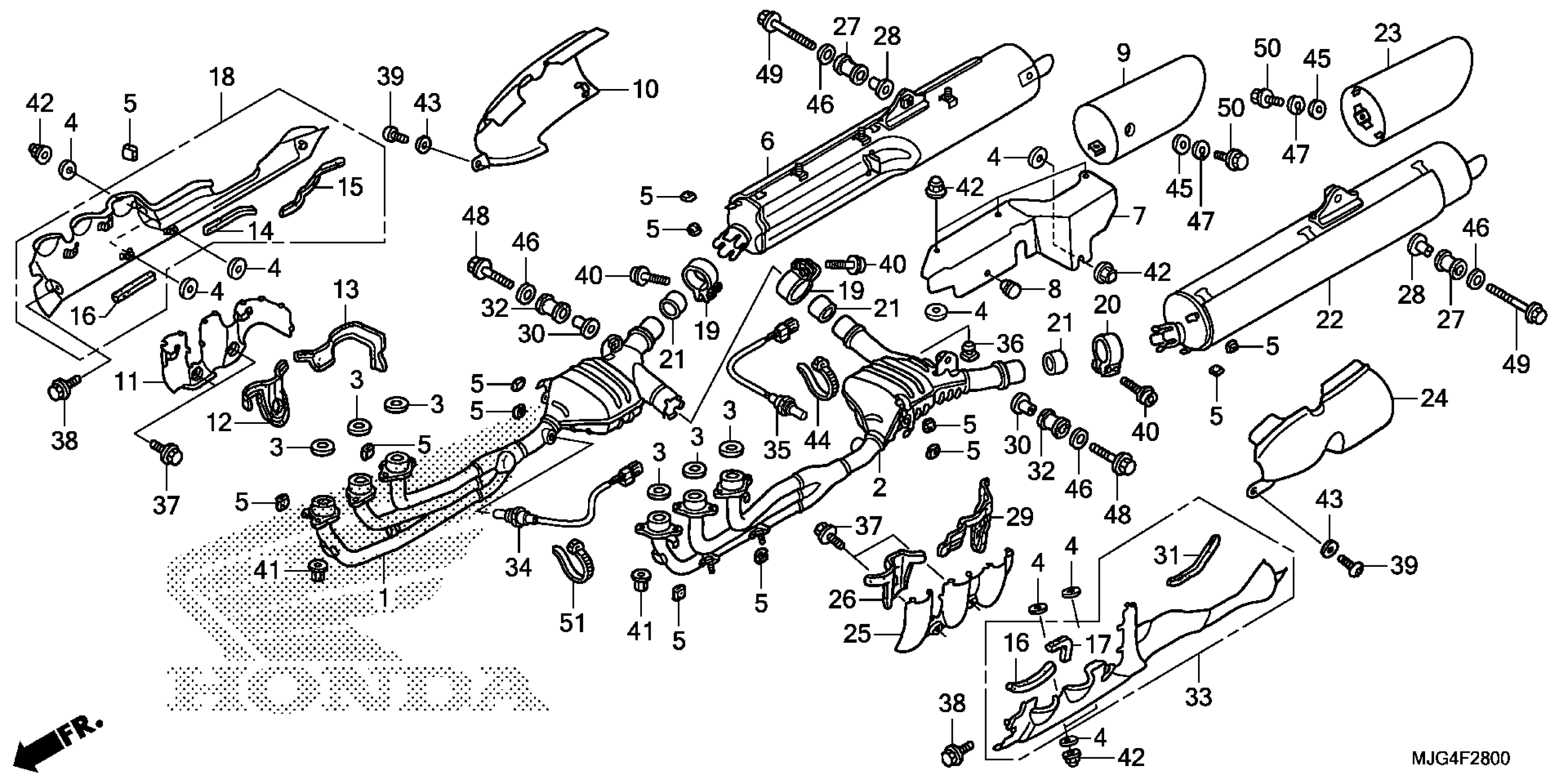

Honda GL1800BAC (17) GOLDWING F6B, JPN, VIN# JH2SC681-HK400001 MUFFLER Diagram

#

Description
Price

1

PIPE, R. EX.

18150-MJG-A10

$1,142.48

2

PIPE, L. EX.

18250-MJG-A10

$1,194.00

3

GASKET, EX. PIPE

18291-MN5-650

$3.52

4

GASKET, PROTECTOR

18293-MCA-780

$4.51

5

RUBBER, PROTECTOR GASKET

18293-MCA-A20

$1.87

6

MUFFLER, R. This part replaces 18305-MJG-305.

18305-MJG-A10

$935.91

7

PLATE, MUFFLER

18313-MCA-A20

$65.71

8

GROMMET, MUFFLER COVER

18314-MCA-A20

$1.29

9

TAILPIECE, R. This part replaces 18316-MJG-306.

18316-MJG-A11

$206.91

10

PROTECTOR, R. RR. EX. PIPE

18317-MJK-G40

$128.33

11

PROTECTOR, R. FR. EX. PIPE (B)

18318-MJG-A10

$57.51

12

RUBBER A, R. HEAT GUARD

18321-MCA-000

$18.52

13

RUBBER B, R. HEAT GUARD

18323-MCA-000

$17.04

14

RUBBER C

18329-MCA-A20

$3.01

15

RUBBER D

18332-MCA-A20

$5.62

16

PROTECTOR, HEAT

18333-MCA-000

$4.28

17

PROTECTOR, HEAT SUB

18338-MCA-000

$3.52

18

PROTECTOR ASSY., R. EX. *NHA86M* (MAT BALLISTIC BLACK) | Mat bullet silver NH389M;

18355-MCA-A20ZB

$194.32

19

BAND, R. MUFFLER

18376-MT3-000

$27.65

20

BAND, L. MUFFLER

18377-MT3-000

$27.65

21

GASKET, MUFFLER (43MM)

18392-MCA-S40

$16.21

22

MUFFLER, L. This part replaces 18405-MJG-305.

18405-MJG-A10

$952.00

23

TAILPIECE, L. This part replaces 18416-MJG-306.

18416-MJG-A11

$206.91

24

PROTECTOR, L. RR. EX. PIPE

18417-MJK-G40

$128.33

25

PROTECTOR, L. FR. EX. PIPE (B)

18418-MJG-A10

$57.51

26

RUBBER A, L. HEAT GUARD

18421-MCA-000

$18.52

27

RUBBER, MUFFLER MOUNTING

18421-MN5-000

$4.76

28

COLLAR, MUFFLER MOUNTING

18422-MN5-000

$8.25

29

RUBBER B, L. HEAT GUARD

18423-MCA-000

$25.28

30

COLLAR, CHAMBER MOUNTING

18424-MN5-000

$7.67

31

RUBBER E

18429-MCA-A20

$5.62

32

RUBBER, EX. PIPE

18441-MCA-A20

$5.99

33

PROTECTOR ASSY., L. EX. *NHA86M* (MAT BALLISTIC BLACK) | Mat bullet silver NH389M;

18455-MCA-A20ZB

$194.32

34

SENSOR, OXYGEN (#1-3-5)

36531-MCA-R31

$245.42

35

SENSOR, OXYGEN (#2-4-6)

36532-MCA-R31

$245.48

36

RUBBER, STAND STOPPER

50524-MG9-000

$6.28

37

BOLT, FLANGE (6X10) (NSHF)

90004-GHB-600

$2.88

38

BOLT, FLANGE (6X10)

90011-HN0-A00

$1.16

39

BOLT, SPECIAL (6X12)

90112-MCA-000

$1.83

40

BOLT, FLANGE SOCKET (8X35)

90130-MCA-000

$2.80

41

NUT, SPECIAL (6MM)

90304-HB3-771

$5.64

42

NUT, CAP (6MM)

90308-MT8-000

$2.46

43

WASHER (6.5X18)

90545-323-700

$1.81

44

BAND, WIRE (95MM)

90650-KV6-003

$2.90

45

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

Unavailable

45

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

Unavailable

45

WASHER, PLAIN (6MM)

94101-06800

Unavailable

46

WASHER, PLAIN (8MM)

94103-08000

$0.59

47

WASHER, SPRING (6MM)

94111-06000

$0.86

48

BOLT, FLANGE (8X45)

95701-08045-00

$1.33

49

BOLT, FLANGE (8X55)

95701-08055-02

$2.17

50

BOLT, FLANGE (6X12)

96001-06012-07

Unavailable

51

BAND, WIRE (BLACK)

90652-KT1-771

$4.16
