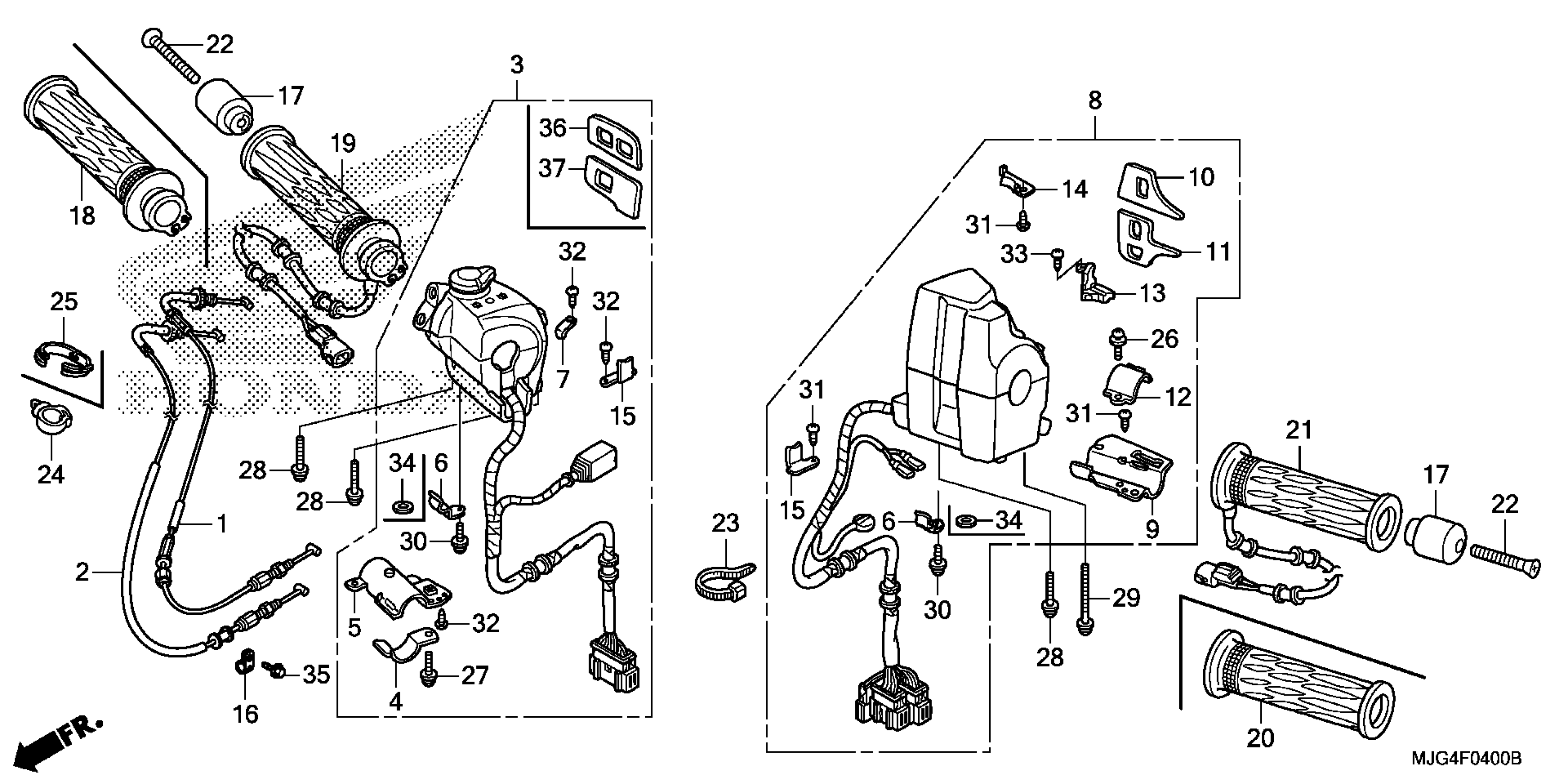

Honda GL1800BAC (17) GOLDWING F6B, JPN, VIN# JH2SC681-HK400001 HANDLE SWITCH Diagram

#

Description
Price

1

CABLE A, THROTTLE

17910-MCA-A60

$18.38

2

CABLE B, THROTTLE

17920-MCA-A60

$37.33

3

SWITCH ASSY., STARTER & STOP & CRUISE

35130-MJG-A11

$278.42

4

PLATE A, STOP SWITCH SETTING

35132-MCA-003

$4.81

5

PLATE B, STOP SWITCH SETTING

35133-MCA-003

$5.04

7

CLAMP, WIRE (D)

35146-MCA-A20

$1.10

8

SWITCH ASSY., TURN SIGNAL & AUDIO

35200-MJG-A11

$445.87

9

PLATE SET A, TURN SIGNAL

35202-MCA-003

$5.17

10

PLATE, ORNAMENT (C)

35205-MCA-S40

$3.49

11

PLATE, ORNAMENT (D)

35206-MCA-A20

$4.55

12

PLATE SET B, TURN SIGNAL

35207-MCA-003

$2.86

13

LENS (LOWER)

35215-MCA-A20

$14.45

14

CLAMP, WIRE

35217-MCA-S40

$1.10

15

CLAMP, WIRE

35218-MCA-A20

$1.10

16

CLAMP, THROTTLE CABLE

50153-MCA-A60

$0.86

17

WEIGHT, HANDLEBAR

53105-MK4-620

$13.49

18

GRIP, R. This part replaces 53145-MJG-305.

53145-MCA-000

$30.67

20

GRIP, L. HANDLE This part replaces 53166-MJG-305.

53166-MCA-000

$13.97

22

SCREW, OVAL (6X65)

90191-KBG-000

$4.60

23

BAND, WIRE (95MM)

90650-KV6-003

$2.90

24

CLAMP, HARNESS

90652-HC4-003

$5.54

26

SCREW-WASHER (5X10)

93892-05010-08

$1.04

27

SCREW-WASHER (5X20)

93892-05020-08

$1.03

28

SCREW-WASHER (5X25)

93892-05025-07

$0.99

29

SCREW-WASHER (5X45)

93892-05045-07

$1.17

30

SCREW-WASHER (4X8)

93893-04008-07

$0.75

30

SCREW-WASHER (4X8) This part replaces 93893-04008-17.

93893-04008-07

$0.75

31

SCREW, TAPPING (3X8)

93901-32120

$0.75

32

SCREW, TAPPING (3X10)

93901-32220

$0.83

33

SCREW, TAPPING (3X12)

93901-32320

$0.83

35

BOLT, FLANGE (6X16)

96001-06016-00

$0.96

36

PLATE, ORNAMENT (A)

35134-MCA-A20

$2.80

37

PLATE, ORNAMENT (B)

35135-MJG-A10

$3.23
