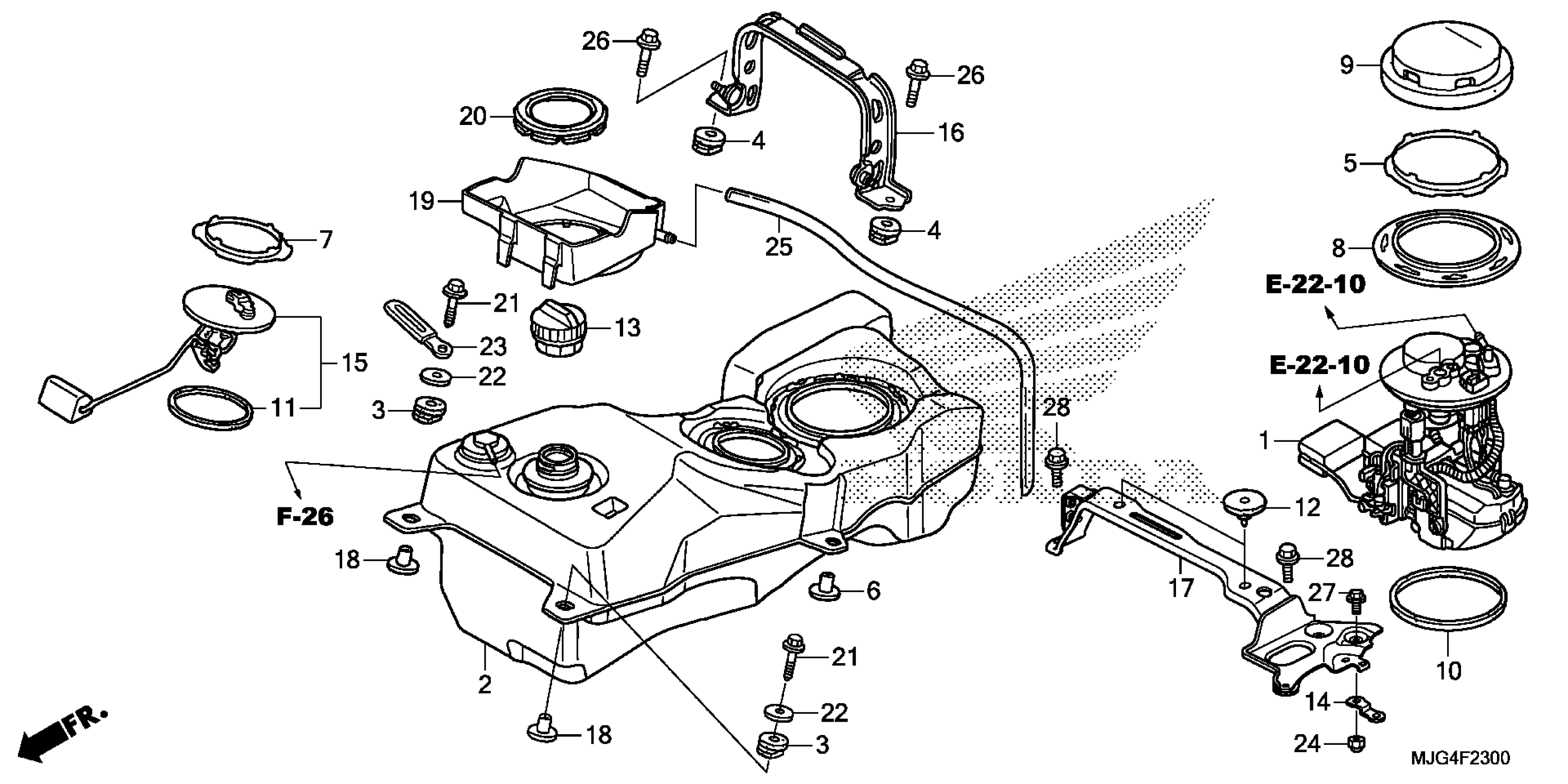

Honda GL1800BAC (17) GOLDWING F6B, JPN, VIN# JH2SC681-HK400001 FUEL TANK Diagram

#

Description
Price

1

PUMP ASSY., FUEL (MSDS)

16700-MCA-013

$351.76

2

TANK, FUEL

17510-MCA-S42

$1,272.10

3

RUBBER, FUEL TANK MOUNTING

17515-GBB-000

$4.48

4

RUBBER, FUEL TANK MOUNTING

17515-MCA-A80

$5.29

5

LOCKING RING, FUEL PUMP

17515-MCA-S41

$35.42

6

COLLAR (12.7X14.1)

17516-MCA-A80

$5.03

7

LOCKING RING, FUEL UNIT

17516-MCA-S41

$27.16

8

RING, SPACER

17517-MCA-S40

$31.00

9

COVER, FUEL PUMP

17519-MCA-000

$11.94

10

GASKET, FUEL PUMP

17574-MCA-S41

$14.73

11

GASKET, FUEL UNIT

17575-MCA-S41

$19.76

12

CUSHION, RR. FUEL TANK

17615-MCA-000

$12.87

13

CAP ASSY., FUEL TANK

17620-MEH-003

$39.70

14

STAY, CLIP

32160-MGE-D01

$3.26

15

FUEL UNIT SET

37080-MCA-000

$607.19

16

STAY, SHELTER SETTING

50250-MCA-S40

$31.74

17

STAY, BATTERY SUPPORT

50330-MJG-670

$67.62

18

COLLAR, RR. FENDER

80108-KF9-900

$3.07

19

TRAY, FUEL FILLER

83502-MCA-A80

$18.09

20

GASKET, FUEL TRAY

83503-MCA-A00

$9.00

21

BOLT, SPECIAL NSHF (6X34)

90104-MCA-000

$1.46

22

WASHER, TANK SETTING

90136-428-870

$1.42

23

CLIP (2X60)

91410-679-000

$9.04

24

NUT, CAP (6MM) This part replaces 94021-06000-0S.

94021-06020

$1.65

24

NUT, CAP (6MM)

94021-06020

$1.65

24

NUT, CAP (6MM) This part replaces 94021-06020-0S.

94021-06020

$1.65

24

NUT, CAP (6MM) This part replaces 94022-06020.

94021-06020

$1.65

25

BULK HOSE, VACUUM (8X8000) (8X860)

95005-80008-10M

Unavailable

26

BOLT, FLANGE (8X35)

95701-08035-00

$2.09

27

BOLT, FLANGE (6X8)

96001-06008-00

$0.93

28

BOLT, FLANGE (6X16)

96001-06016-07

$0.96
