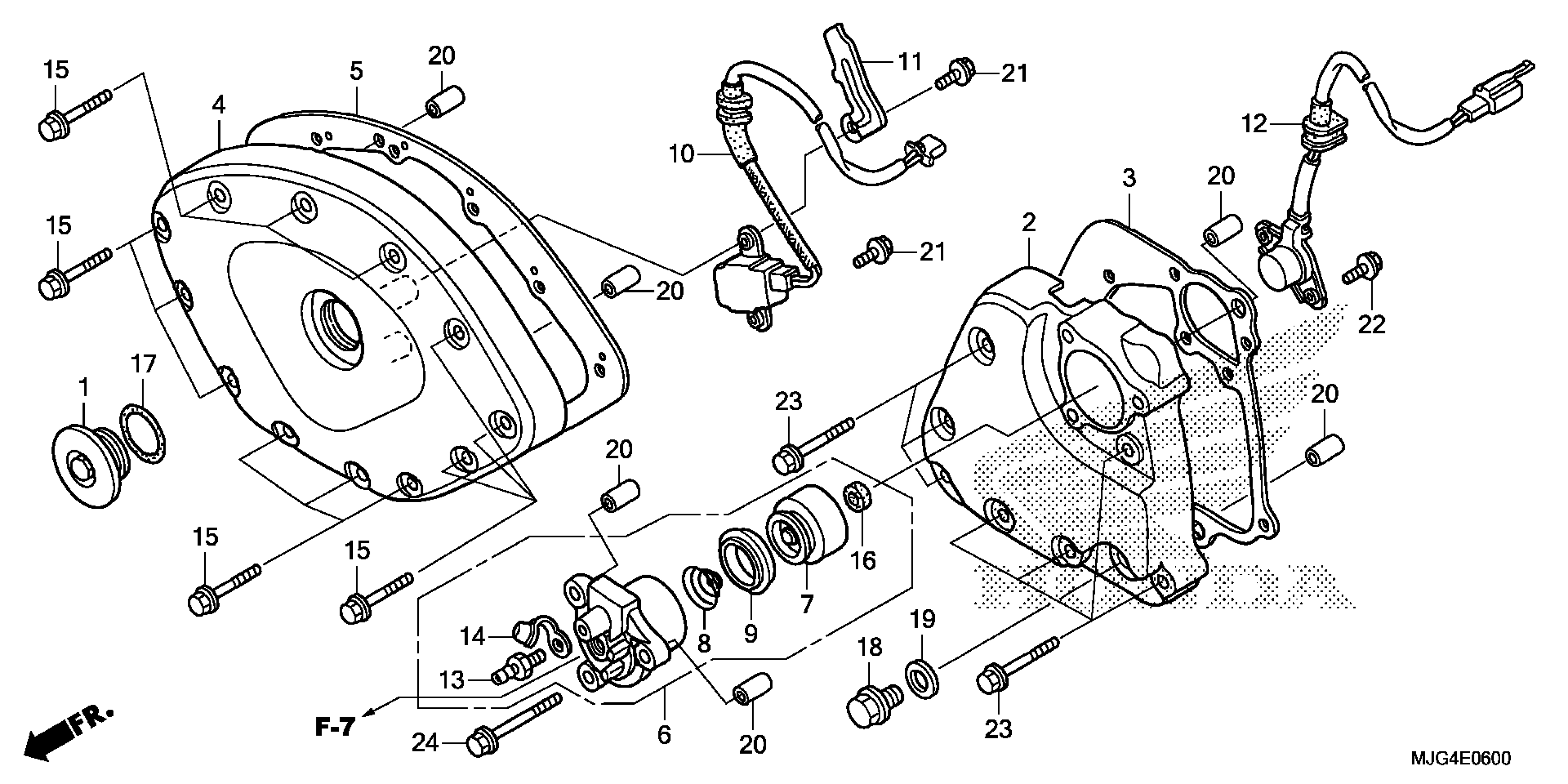

Honda GL1800BAC (17) GOLDWING F6B, JPN, VIN# JH2SC681-HK400001 FRONT COVER + TRANSMISSION COVER Diagram

CAP (45MM)

11332-MER-D00

$17.38

COVER, TRANSMISSION

11361-MCA-S40

$138.90

GASKET, TRANS CVR This part replaces 11391-MCA-010.

11391-MCA-020

$9.66

COVER, FR.

11511-MJG-670

$307.48

GASKET, FR. COVER This part replaces 11524-MCA-010.

11524-MCA-020

$15.04

CYLINDER ASSY., CLUTCH SLAVE

22860-MCA-000

$146.73

PISTON, SLAVE CYLINDER

22863-MJ8-003

$26.65

SPRING, SLAVE CYLINDER

22864-MB0-003

$6.25

CUP, SLAVE CYLINDER

22865-MJ8-003

$11.50

GENERATOR ASSY., PULSE

30300-MCA-003

$71.67

CLIP, PULSER WIRE

32906-MCA-A00

$4.95

SWITCH ASSY., CHANGE

35759-MCA-003

$96.48

SCREW, BLEEDER

43352-MBB-006

$4.44

CAP, BLEEDER

43353-461-771

$5.05

BOLT, FLANGE (6X28) (NSHF)

90007-GHB-680

$1.84

OIL SEAL (8X18X5)

91209-MB0-003

$4.06

O-RING (48.1X3.6) (ARAI)

91301-ML7-003

$3.92

BOLT, DRAIN PLUG (14MM)

92800-14000

$3.67

WASHER, DRAIN PLUG (14MM)

94109-14000

$1.49

PIN, DOWEL (8X14)

94301-08140

$2.25

BOLT, FLANGE (6X14)

95701-06014-00

$1.49

BOLT, FLANGE (6X16)

95701-06016-00

$1.55

BOLT, FLANGE (6X35)

95701-06035-00

$1.80

BOLT, FLANGE (6X45) This part replaces 95701-06045-00.

95701-06045-07

$2.06

BOLT, FLANGE (6X45)

95701-06045-07

$2.06
