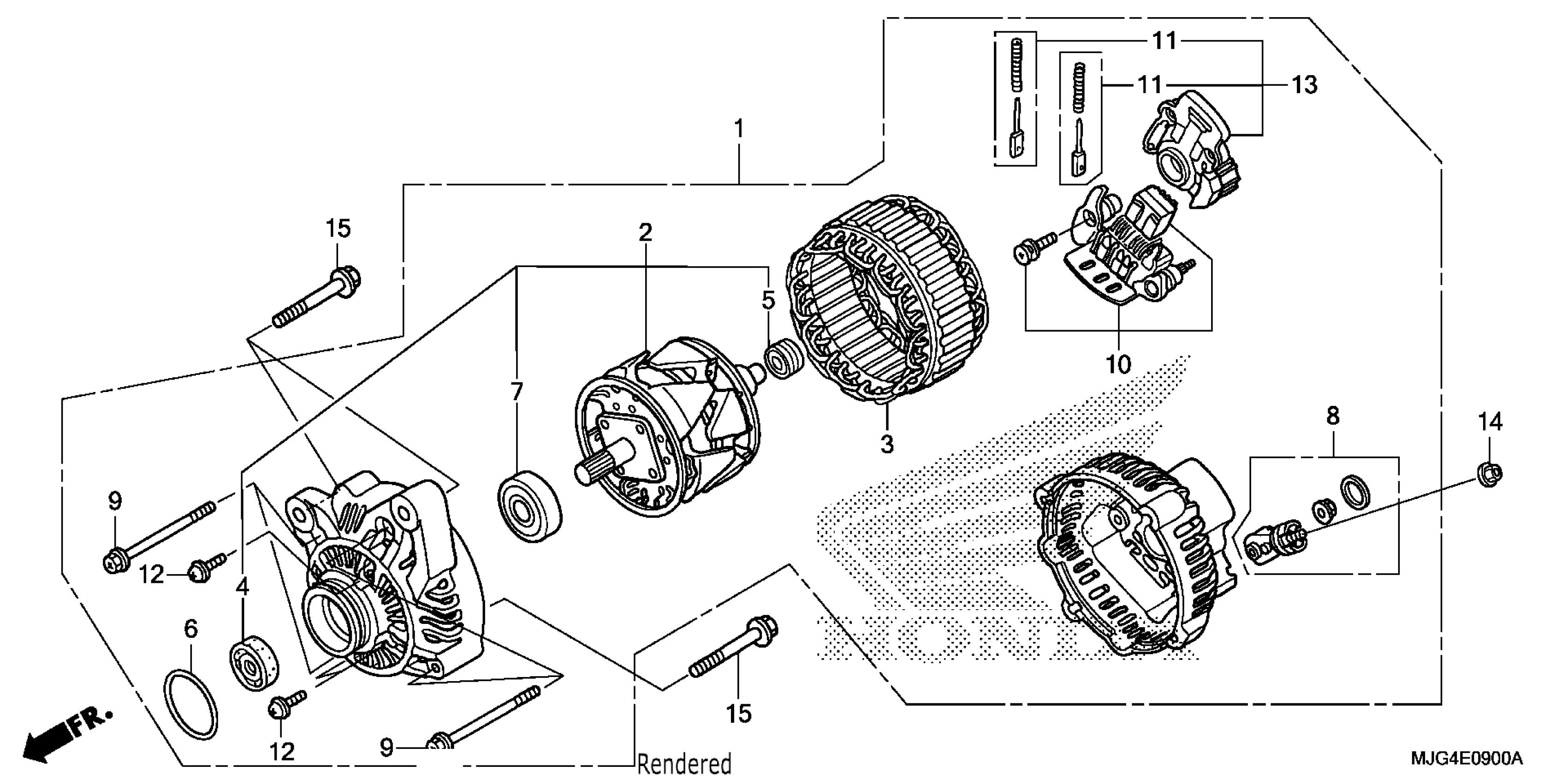

Honda GL1800BAC (17) GOLDWING F6B, JPN, VIN# JH2SC681-HK400001 ALTERNATOR Diagram

#

Description
Price

1

ALTERNATOR ASSY.

31100-MCA-S41

$1,135.75

2

ROTOR SET

31101-MCA-S41

$1,167.67

3

STATOR

31102-MCA-A61

$269.46

4

SEAL SET

31111-MCA-003

$9.21

5

BEARING, RR. GENERATOR

31111-P08-J02

$37.80

6

O-RING

31112-MCA-003

$2.94

7

BEARING, FR.

31114-MCA-003

$18.33

8

TERMINAL SET

31123-MCA-003

$18.64

9

BOLT, FLANGE

31125-P08-J02

$9.31

10

RECTIFIER ASSY.

31127-MCA-A61

$267.34

11

BRUSH SET

31140-P64-902

$40.70

12

SCREW

31146-PE0-004

$4.44

13

REGULATOR SET

31150-MCA-S40

$268.56

14

NUT, FLANGE (6MM)

94050-06080

$1.49

15

BOLT, FLANGE (8X38)

95701-08038-00

$1.51
