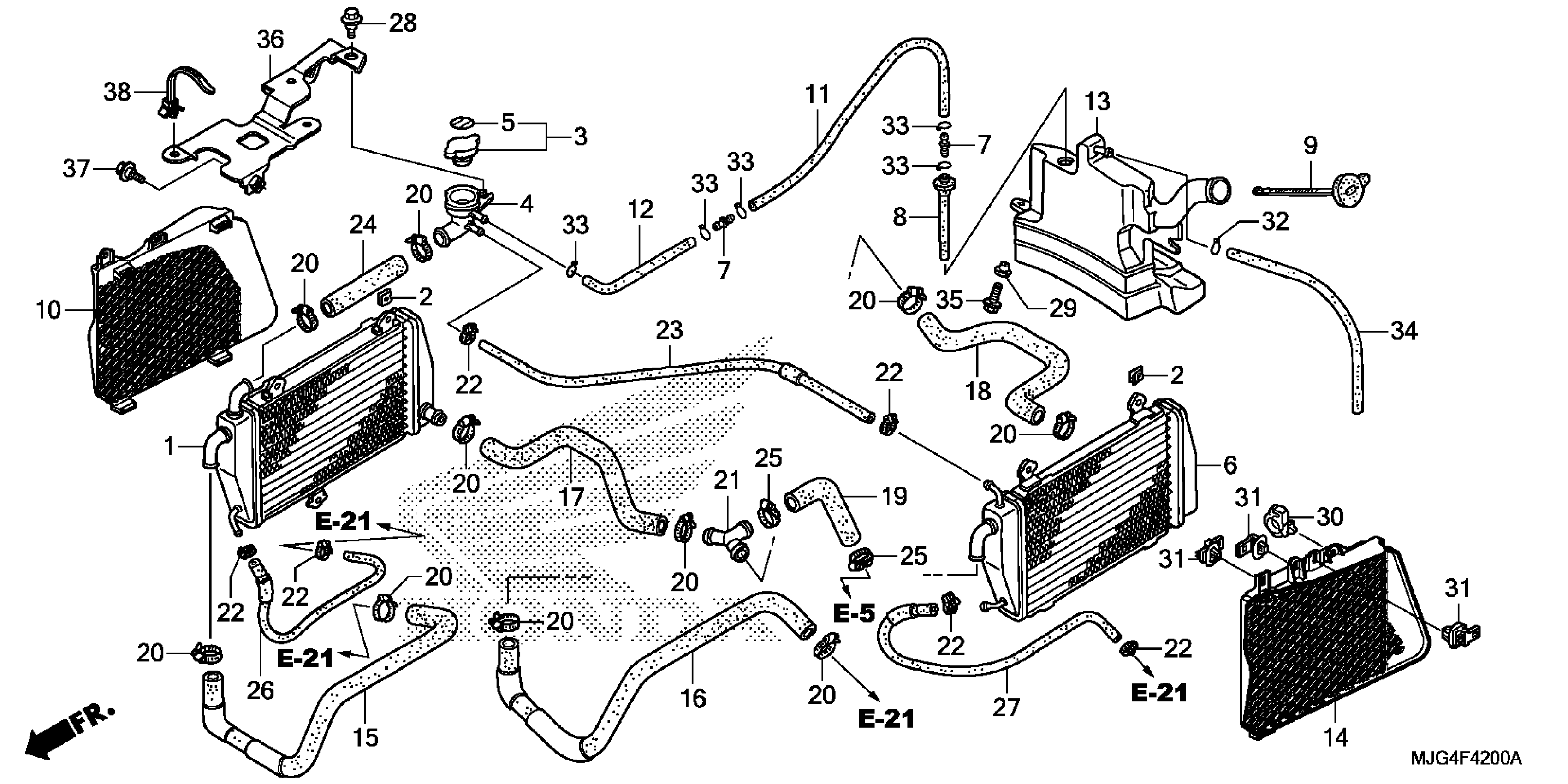

Honda GL1800BAC (16) GOLDWING F6B, JPN, VIN# JH2SC681-GK300001 TO JH2SC681-GK399999 RADIATOR Diagram

#

Description
Price

1

RADIATOR, R.

19010-MCA-A61

$484.70

2

NUT, SETTING (6MM)

19014-KEA-003

$3.10

3

CAP, RADIATOR

19037-GEE-710

$30.28

4

NECK, FILLER

19039-MCA-A61

$24.08

5

LABEL, RADIATOR CAP

19046-PAA-A00

$2.92

6

RADIATOR, L.

19060-MCA-A61

$484.77

7

JOINT, TUBE

19102-KT8-000

$6.61

8

TUBE, LEVEL

19102-ML7-701

$11.28

9

CAP ASSY., RESERVE TANK

19104-MCA-000

$9.72

10

GRILLE, R. RADIATOR

19105-MJG-670

$75.16

11

TUBE A, RESERVE TANK

19106-MCA-000

$4.79

12

TUBE B, RESERVE TANK

19107-MCA-A60

$2.79

13

TANK ASSY., RESERVE

19110-MCA-000

$62.93

14

GRILLE, L. RADIATOR

19205-MJG-670

$75.16

15

HOSE, R. FR. RADIATOR

19501-MCA-S40

$26.43

16

HOSE, L. FR. RADIATOR

19502-MCA-S40

$26.43

17

HOSE, R. RR. RADIATOR

19503-MCA-A60

$6.57

18

HOSE, L. RR. RADIATOR

19504-MCA-A60

$5.80

19

HOSE, RR. RADIATOR

19505-MCA-000

$4.08

20

CLAMP, WATER HOSE

19505-ML3-770

$7.08

21

JOINT, THREE WAY

19506-MCA-000

$14.08

22

CLAMP, WATER HOSE

19507-MAL-600

$5.69

23

HOSE, BREATHER

19508-MCA-A60

$24.26

24

HOSE, CAP JOINT

19509-MCA-A60

$10.64

25

CLAMP, RADIATOR HOSE

19509-MM5-003

$13.58

26

HOSE, R. DRAIN

19520-MCA-A60

$11.43

27

HOSE, L. DRAIN

19525-MCA-A60

$14.33

28

BOLT, SPECIAL (6MM)

90122-752-000

$2.68

29

WASHER, CHAIN CASE SETTING

90522-028-000

$2.75

30

CLAMP, HARNESS

90652-HC4-003

$5.95

31

CLIP, CONNECTOR (BLACK)

91565-SEL-003

$3.67

32

CLIP, TUBE (B10)

95002-02100

$1.90

33

CLIP, TUBE (B12)

95002-02120

$2.00

34

BULK HOSE, VACUUM (5.5X8000) (5.3X300)

95005-55008-10M

Unavailable

35

BOLT, FLANGE (6X16)

95701-06016-00

$1.55

36

STAY, ACTUATOR

64262-MCA-B20

$40.11

37

BOLT, FLANGE (6MM)

90111-187-000

$5.59
