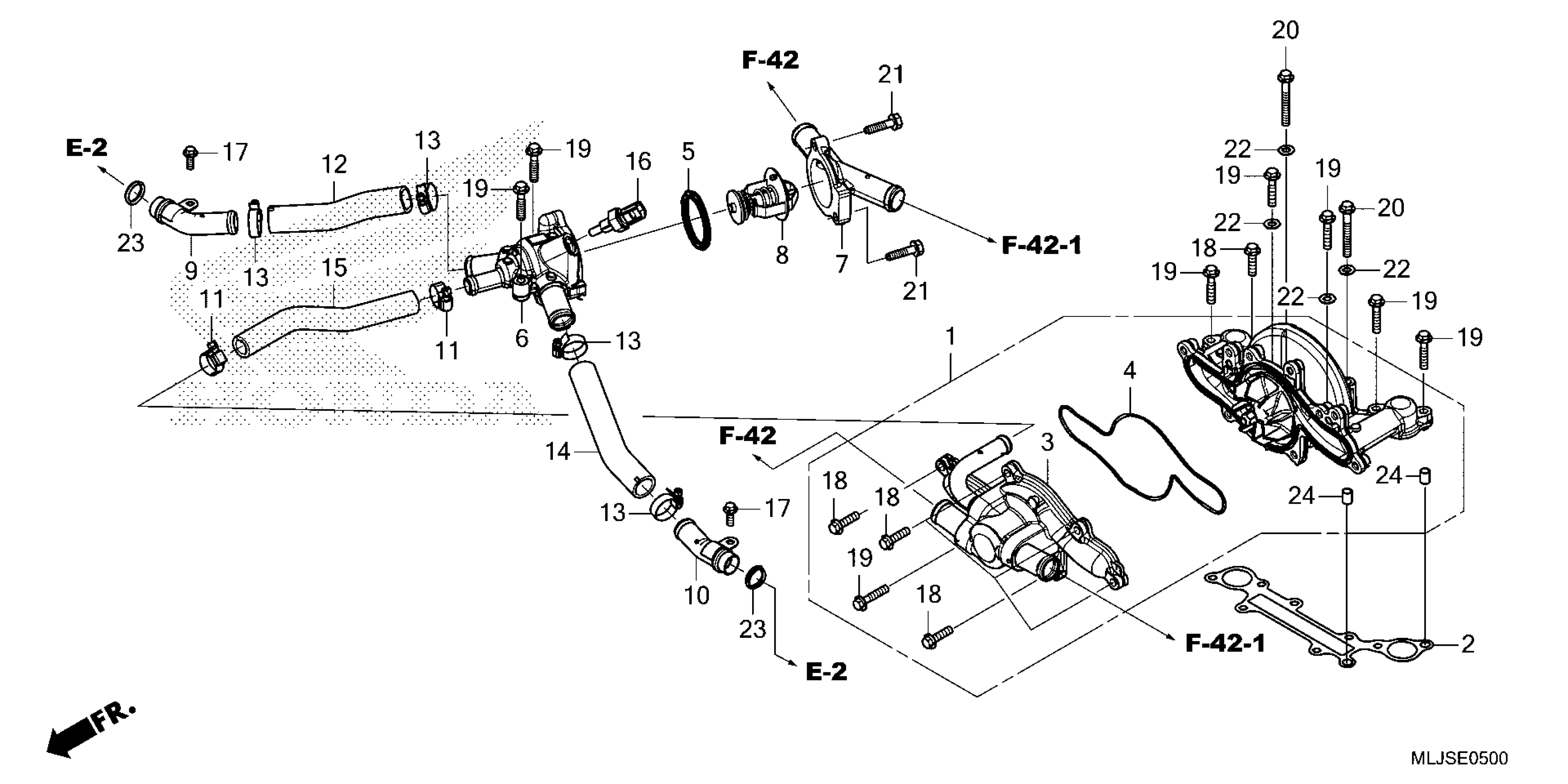

Honda GL1800B4AC (25) MOTORCYCLE, JPN, VIN# JH2SC791-SK700001 TO JH2SC791-SK799999 WATER PUMP Diagram

WATER PUMP ASSY.

19200-MKC-305

$448.64

GASKET, WATER PUMP BODY

19216-MKC-A01

$7.80

COVER, WATER PUMP

19220-MKC-A00

$138.46

GASKET, WATER PUMP COVER

19226-MKC-A00

$9.49

RUBBER, THERMOSTAT

19305-KV3-010

$5.64

CASE, THERMOSTAT

19310-MKC-305

$118.87

COVER, THERMOSTAT

19315-MKC-A00

$59.77

THERMOSTAT

19320-MKF-D41

$63.84

PIPE, R. WATER

19411-MKC-A00

$30.93

PIPE, L. WATER

19421-MKC-A00

$30.93

CLAMP, WATER HOSE (A)

19505-KS6-700

$10.57

HOSE, R. HEAD

19505-MKC-A00

$7.26

CLAMP B, WATER HOSE

19506-KS6-700

$6.98

HOSE, L. HEAD

19506-MKC-A00

$8.22

HOSE, BYPASS (BOTTOM)

19507-MKC-A00

$7.26

SENSOR ASSY., WATER TEMPERATURE

37870-MGS-D31

$44.73

BOLT, FLANGE (6X16) (NSHF)

90017-GHB-630

$1.93

BOLT, FLANGE (6X22) (NSHF)

90017-GHB-660

$2.04

BOLT, FLANGE (6X28) (NSHF)

90017-GHB-680

$2.16

BOLT, FLANGE (6X45) (NSHF)

90017-GHB-720

$2.36

BOLT, FLANGE (6X23) (CT200)

90018-MKC-A00

$1.84

WASHER, SEALING (6MM)

90488-425-000

$2.07

SEAL, WATER PIPE (22.5MM)

91316-MKC-A01

$5.26

PIN A, DOWEL (8X10)

94301-08100

$2.04
